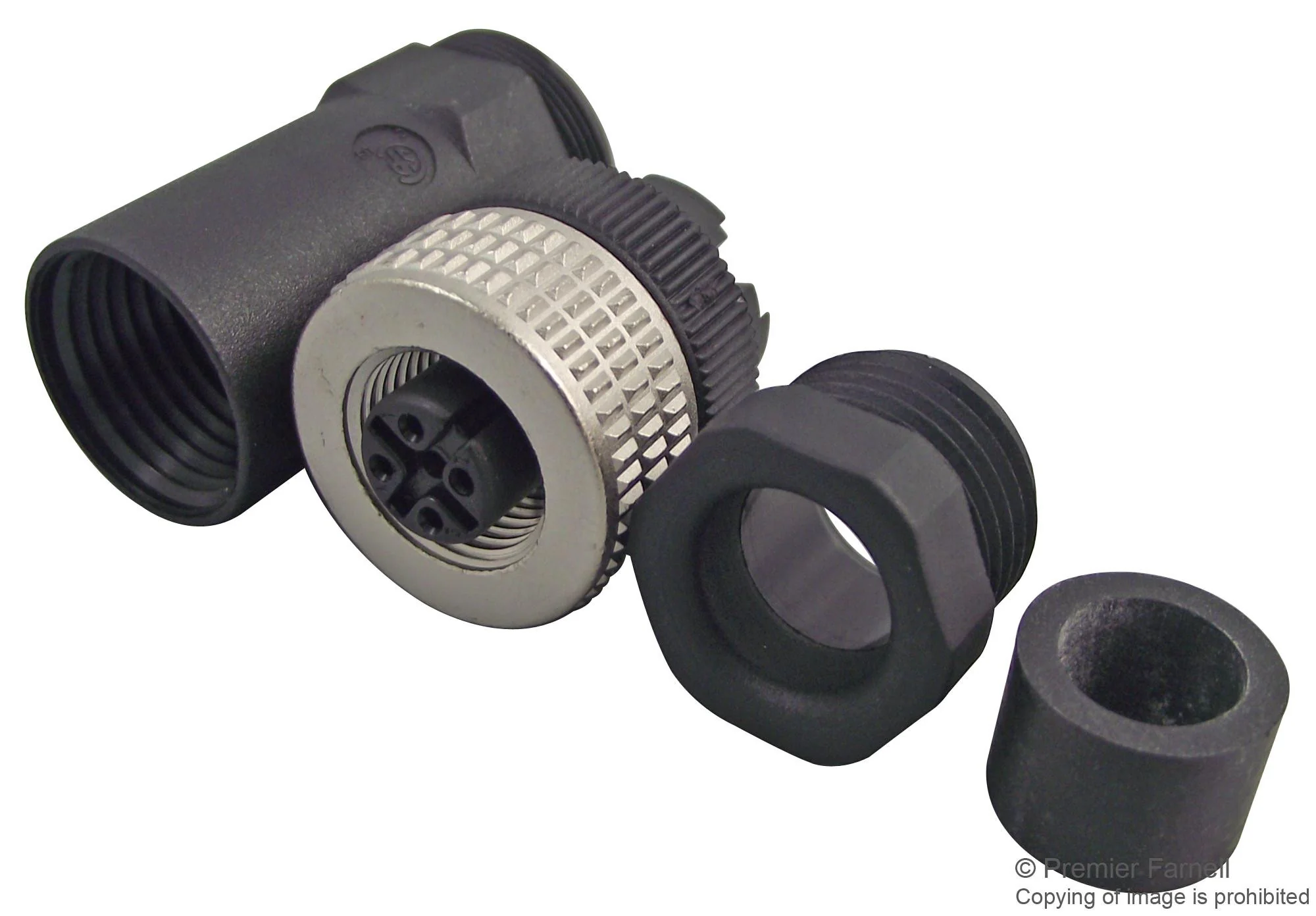

HIRSCHMANN ELKA 4012 PG9 Circular Connector, E Series M12, Cable Mount Receptacle, 4 Contacts, Screw Socket
HIRSCHMANN ELKA 4012 PG9 Circular Connector, E Series M12, Cable Mount Receptacle, 4 Contacts, Screw Socket
- Screw locking
- PG9 Cable gland
- Strain relief by means of clamping cage
- 250VAC/DC Rated voltage
- 4A Rated current
- Screw termination
- IP67 Protection rating
- -25 to +90Ā°C Temperature range
Applications
Sensing & Instrumentation, Motor Drive & Control, Communications & Networking
Product details
| Connector Body Plating | - |
| No. of Contacts | 4Contacts |
| Contact Plating | Tin |
| Coupling Style | - |
| Circular Connector Shell Style | Cable Mount Receptacle |
| Product Range | E Series M12 |
| Contact Material | Brass |
| Circular Contact Type | Screw Socket |
| Connector Body Material | Nylon (Polyamide) Body |
Other details
| Brand | HIRSCHMANN |
| Part Number | ELKA 4012 PG9 |
| Quantity | Each |
| Technical Data Sheet EN |  |
