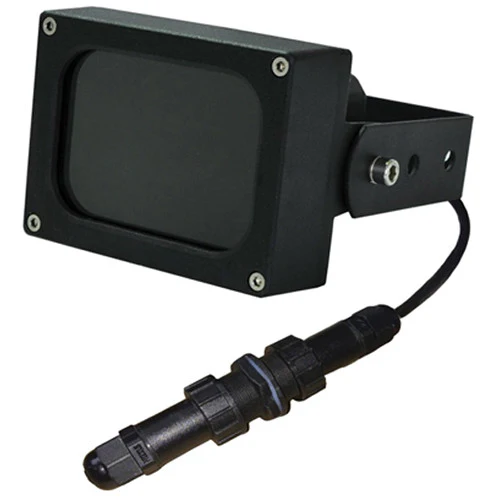

Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day/Night CCTV Camera (45°, Black)
Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day/Night CCTV Camera (45°, Black)
Iluminar IRC132-A45-POE Overview
The black IRC132-PoE Series Short Range 850nm IR PoE Illuminator from Iluminar is designed to be used with true day/night CCTV cameras. This illuminator is invisible to the human eye but visible to black/white and true day/night cameras, which makes it a covert/non-obtrusive illumination. Also, thanks to its invisibility to the human eye, it does not create the problem of light pollution. It has a longer range than visible light due to the higher wavelength of approximately up to 919� (280m). The illuminator is designed to provide superior IR lighting for CCTV cameras.
Supplied with an IP66 rating, this illuminator is vandal-proof and designed for both indoor & outdoor use. The tempered glass panel and die-cast aluminum housing provide protection from the harsh weather conditions and rapid temperature variations (-58 to 140°F).
In the Box
- Iluminar IRC132-PoE Series Short Range 850nm IR PoE Illuminator for True Day/Night CCTV Camera (45°, Black)
- M6 Allen Key
- Limited 2-Year Manufacturer Warranty
Iluminar IRC132-A45-POE Specs
| Safety | EN60598:2004 - Electrical Safety EN60825-1 - Laser Eye Safety |
| IP | IP66 in accordance with EN60529:1992 |
| EMC | EN61000, FCC part 15.107 15.108 Class B |
| WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC |
| RoHS | Restriction of Hazardous Substances European directive 202/95/EC |
| Input Voltage | Power over Ethernet (PoE) IEEE.802.3af standard |
| Consumption | 12 W |
| Electronics | High efficiency surface mount high power LED's with advanced current limited integral control circuitry |
| Number of SMT LEDs | 6 |
| Wavelength | 850 nm, Standard (A) Faint red glow visible on the illuminator only (no visible light) |
| Angle | 45° |
| Illumination Distance | 36' (11 m) |
| Construction | Robust high quality aluminum extrusion |
| Front Window | Tempered glass panel |
| Cable | IP66 rated RJ45 jack and CAT5e |
| Finish | Black powder coated |
| Operating Temperature | -40 to 122°F (-40 to 50°C) |
| Mount | Black powder coated stainless steel wall mount. Adjustable via M6 Allen key (included) |
| Dimensions | 4.3 x 3.3 x 3.5" (11.0 x 8.5 x 8.8 cm) |
| Weight | 2.2 lb (1.0 kg) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
