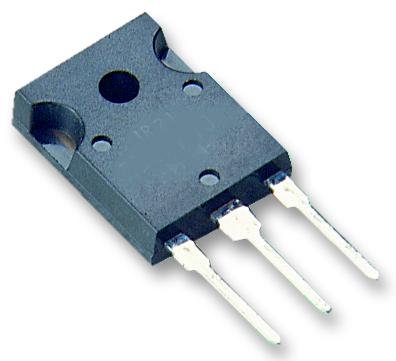

INFINEON IGW30N65L5XKSA1 IGBT Single Transistor, 85 A, 1.05 V, 227 W, 650 V, TO-247, 3 Pins
INFINEON IGW30N65L5XKSA1 IGBT Single Transistor, 85 A, 1.05 V, 227 W, 650 V, TO-247, 3 Pins
Product details
| DC Collector Current | 85A |
| Collector Emitter Saturation Voltage Vce(on) | 1.05V |
| Power Dissipation Pd | 227W |
| Collector Emitter Voltage V(br)ceo | 650V |
| Transistor Case Style | TO-247 |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175Ā°C |
| Product Range | TRENCHSTOP 5 Series |
| Automotive Qualification Standard | - |
| MSL | - |
Other details
| Brand | INFINEON |
| Part Number | IGW30N65L5XKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
