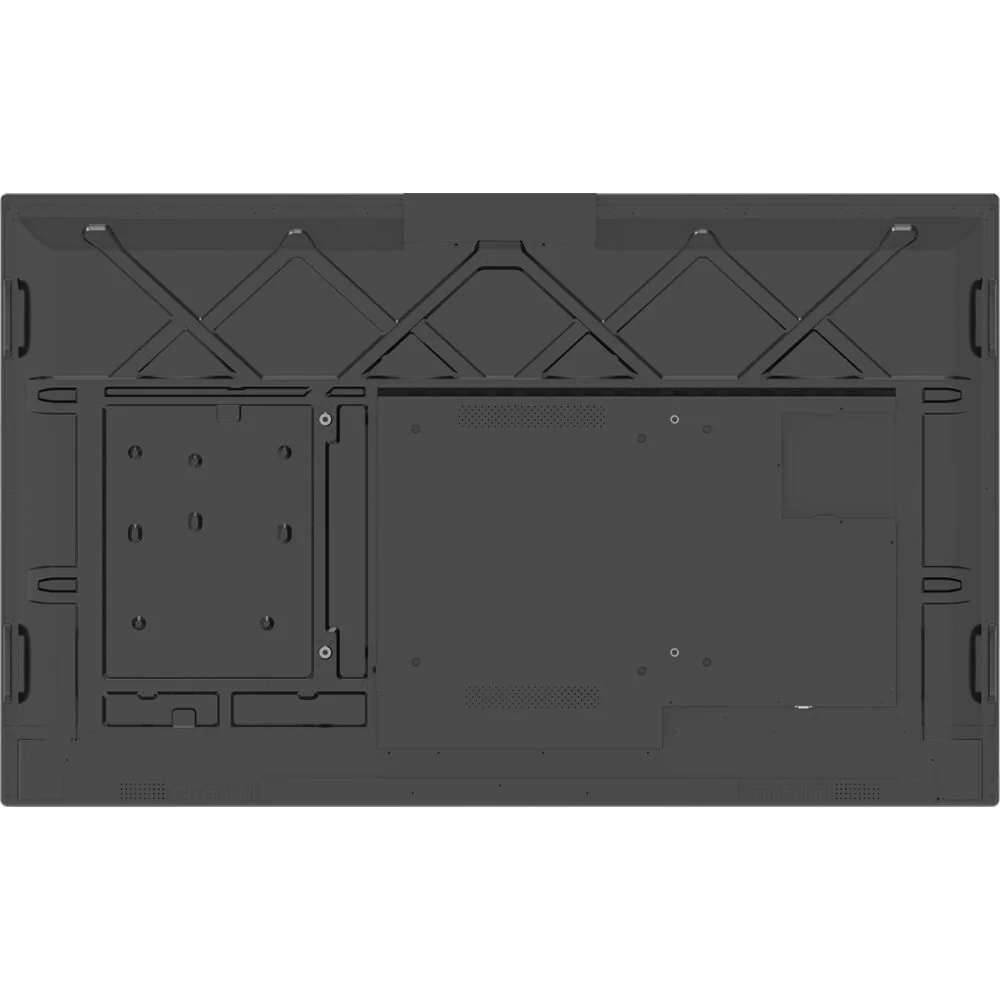

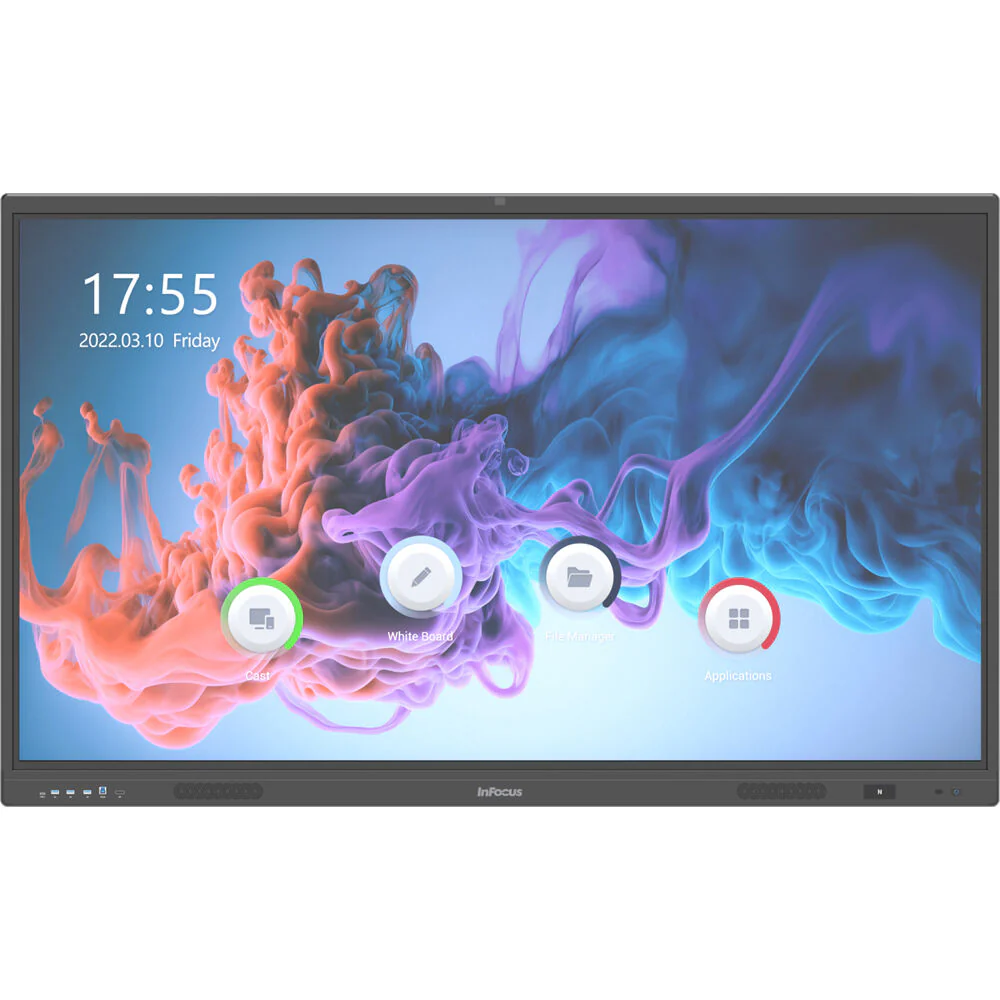

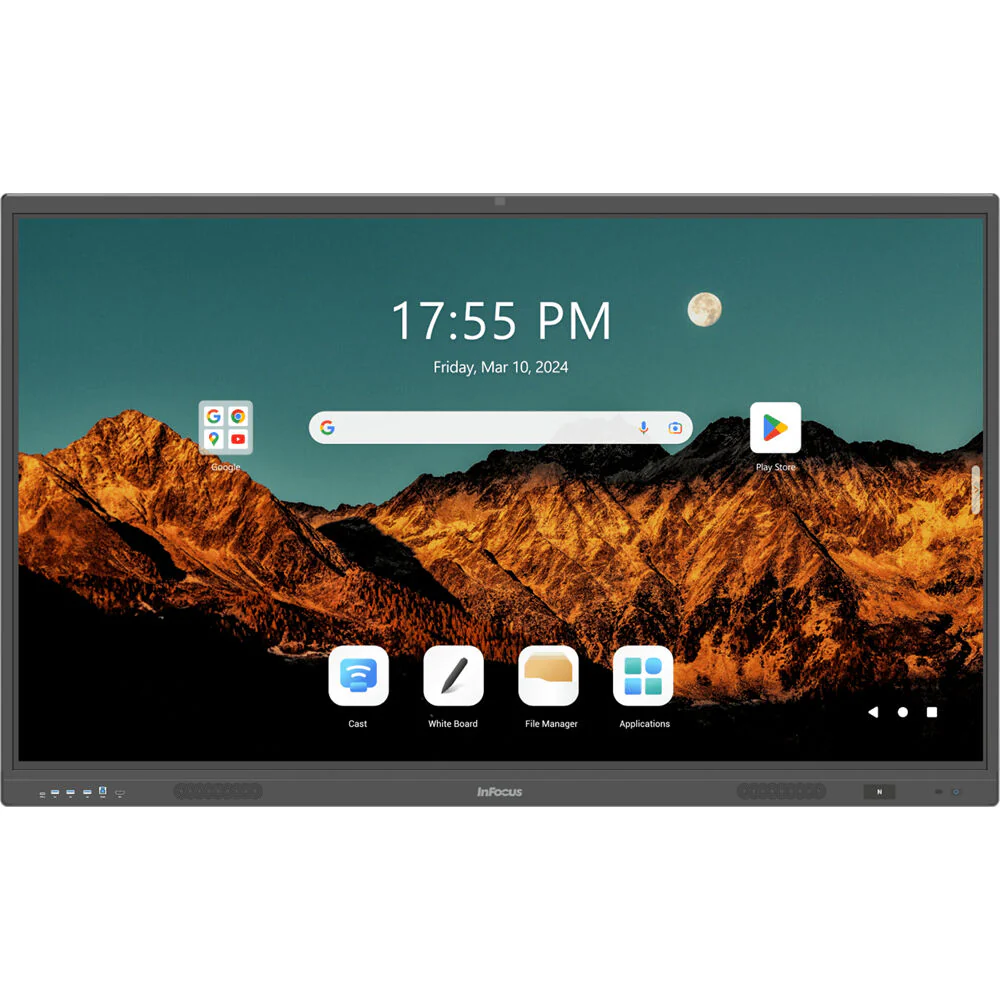

InFocus JTouch Series 13 86" UHD 4K Touchscreen Commercial Monitor
InFocus IN13 Overview
Create a user-friendly interactive workspace with the InFocus JTouch Series 13 86" UHD 4K Touchscreen Commercial Monitor. Google EDLA certification means ease-of-use and security with built-in access to Google Mobile Services, such as Google Drive, Google Docs, and Google Play Store.
The JTouch Series 13 is running on an Android 13 OS, powered by an octa-core chipset with 8GB of RAM and 128GB of internal storage for high performance, even when multi-tasking. Connect a broad selection of sources via HDMI, DisplayPort, and USB-C inputs. An integrated 48MP camera, 8 microphone array, and 2.1 speaker system work together to enhance hybrid learning and video conferencing. Combined with an intuitive interface with up to 40 points of touch, the IN8613 is a perfect all-in-one interactive solution for office and classroom spaces.
Google EDLA Certification
Google EDLA (Enterprise Devices Licensing Agreement) is a licensing framework that Google provides for devices to enable seamless access to Google Mobile Services (GMS), a collection of Google applications, and APIs that help support functionality across devices. InFocus Google EDLA certified devices offer advanced security features to protect data and prevent unauthorized access. Google EDLA Play Protect Security provides an additional layer of security from app vulnerabilities. With GMS integrated into the system, you can quickly access Google accounts, apps, and files for sharing and collaboration. Or you can simply use the NFC login for direct access to your personalized account securely and conveniently.
Single Cable Solution with USB-C
Simplify your setup with USB-C inputs for audio, video, two-way data and control function, with 65W power delivery, over a single cable.
Zero Bonding No-Gap Touchscreen
The JTouch Series 13 is designed with second-generation zero bonding technology, eliminating the air gap between the screen and the display panel. This technology reduces internal reflection and minimizes the parallax effect, resulting in a more precise and natural touch experience. Additionally, it enhances contrast and brightness for a superior visual display.
AI Camera
The built-in camera is 48MP, 120° wide-angled, and integrated with many AI features such as speaker tracking, sound source localization, gesture recognition, and noise reduction to optimize video experience.
Array of 8 Microphones
Equipped with an 8-array microphone with noise cancellation, far-field sound pickup for up to 32 feet, and voice enhancement to ensure everyone is clearly heard.
Additional Features
- Safe and easy NFC login
- Smart sensors for temperature, humidity, CO2, and PM2.5 for 75 and 86" display
- Touch screen is anti-microbial, anti-fingerprint, and anti-glare treated
- Certified low blue light
- Built-in Wi-Fi 6 and Bluetooth 5.0
Items Included
- InFocus JTouch Series 13 86" UHD 4K Touchscreen Commercial Monitor
- Remote Control
- 2 x Stylus
- NFC Communication Admin Card
- 6 x NFC User Card
- Touch USB-B Cable (9.8')
- USB-A Cable (9.8')
- VESA Wall Mount
- Power Cord (9.8')
- HDMI Cable (9.8')
- Limited 3-Year Manufacturer Warranty
Additional Resources
InFocus IN13 Specs
Key Specs
| Display Size |
86"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen |
Yes, Infrared (IR)
|
| Inputs |
Front
1x HDMI 2.0 Side 3x HDMI 1x DisplayPort Bottom 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Bottom
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
| USB I/O |
Front
1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Touchscreen Control/Video) 3x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Side 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Touchscreen Control/Video) 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Bottom 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Charging) |
| Ethernet I/O |
Bottom: 2x RJ45
|
| Other I/O |
Bottom
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 16 W
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
| Webcam |
User-Facing: 4K
|
Display
| Display Size |
86"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
No
|
| Contrast Ratio |
1200:1
|
| Dynamic Contrast Ratio |
5000:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors
|
| Viewing Angle (H x V) |
178 x 178°
|
| Finish |
Anti-Glare / Matte, Anti-Bacterial
|
Surface
| Touchscreen |
Yes, Infrared (IR)
|
| Multi-Touch Points |
40
|
| Hardness Rating |
7H
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
Front
1x HDMI 2.0 Side 3x HDMI 1x DisplayPort Bottom 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Bottom
1x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes
|
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
| NFC |
Yes
|
| USB I/O |
Front
1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Touchscreen Control/Video) 3x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Side 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Touchscreen Control/Video) 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Bottom 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Charging) |
| Ethernet I/O |
Bottom: 2x RJ45
|
| Other I/O |
Bottom
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 16 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Yes, Android 13
|
| Processor |
Rockchip RK3588
|
| CPU |
Quad-Core:
Up to 2.4 GHz Cortex A76 (4 Core) Up to 1.8 GHz Cortex A55 (4 Core) |
| Storage |
128 GB eMMC
|
| RAM |
8 GB DDR4
|
| OS Compatibility |
Computer: Windows / Linux / Chrome OS / macOS
Mobile: Android/iOS |
| Media Card Reader |
1x microSD (Unspecified Type)
|
| Built-In Mic |
Yes
|
Camera
| Webcam |
User-Facing: 4K
|
Supported File Formats
| Supported Video File Types |
H.263, H.264/AVC, MJPEG, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9, WMV3
|
| Supported Audio File Types |
FLAC, HE-AAC, MP1, MP2, MP3
|
| Supported Photo File Types |
BMP, JPEG, JPG, PNG
|
Electrical
| Power Consumption |
Maximum: 400.0 W
Network Standby: < 3.1 W Standby: < 0.6 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
14 to 113°F / -10 to 45°C at 10 to 80% Humidity
|
| Certifications |
CB, CE, ENERGY STAR, FCC, RoHS, UKCA, cTUVus
|
| VESA Mounting-Hole Pattern |
800 x 400 mm
|
| Lighting Lifespan |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$1,785.20
Original: $5,950.68
-70%InFocus JTouch Series 13 86" UHD 4K Touchscreen Commercial Monitor—
$5,950.68
$1,785.20More Images
