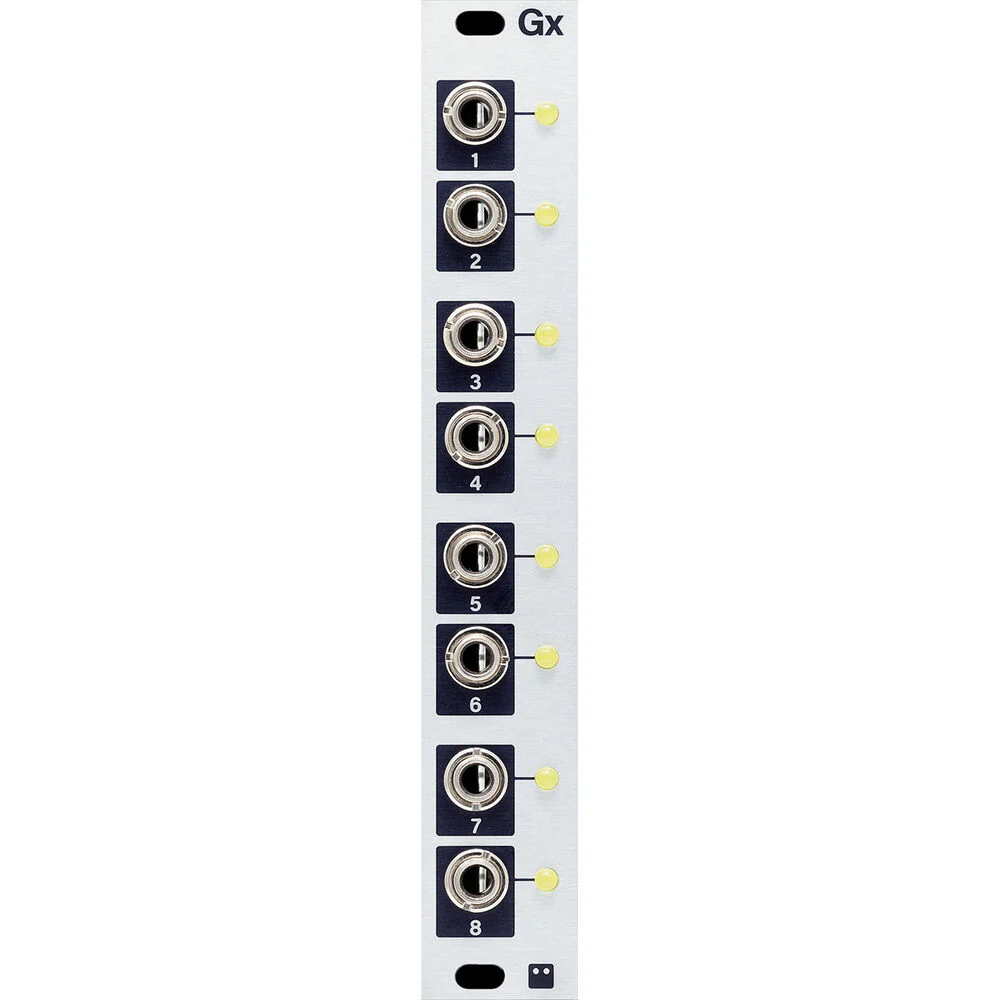

intellijel Gx Gate Expander Eurorack Module (4 HP)
HomeStore

intellijel Gx Gate Expander Eurorack Module (4 HP)

intellijel Gx Gate Expander Eurorack Module (4 HP)

intellijel GX-3U Overview

Add 8 additional gate, trigger, clock, and logic outputs with intellijel Gx, a Eurorack gate expander for Metropolix and Quadrax modules. The module connects via a ribbon cable to the I2C expansion port of select modules in the intellijel product line. The Gx includes a power ribbon cable and a set of mounting screws.

At a Glance
  • The Gx (Gate Expander) adds 8 additional Gate/Trigger/Clock/Logic outputs to compatible modules like the Metropolix and Quadrax.
  • On Metropolix you can configure the Gx via the MX menu. Functions such as transport control, per-stage gates, and mod lane clock outputs are example options.
  • It connects via a ribbon cable to the I2C expansion port of select modules in the intellijel product line.
Eurorack Ready
  • 4 HP Eurorack format module
  • Maximum depth: 0.9" (22mm)
  • Includes power ribbon cable with Eurorack power headers
  • Power consumption: +12V: 8mA, -12V: 0 mA

In the Box

  • intellijel Gx Gate Expander Eurorack Module (4 HP)
  • Ribbon Power Cable
  • Set of Mounting Screws
  • Limited 2-Year Manufacturer Warranty

Not in the Box

    intellijel GX-3U Specs

    Key Specs
    Sound Generation
    Analog
    Audio I/O
    No
    MIDI I/O
    No
    CV/Gate I/O
    8x 1/8" / 3.5 mm TS Gate/Trigger Output
    Patch Points
    8x 1/8" / 3.5 mm TS Output
    Eurorack Current Consumption
    8 mA on +12 V Rail
    0 mA on -12 V Rail
    Horizontal Pitch
    4 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Expression Controls
    No
    Number of Pads
    No
    Built-In Speaker
    No
    Synthesis
    Oscillators
    No
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    No
    MIDI I/O
    No
    CV/Gate I/O
    8x 1/8" / 3.5 mm TS Gate/Trigger Output
    Patch Points
    8x 1/8" / 3.5 mm TS Output
    Sync I/O
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    8 mA on +12 V Rail
    0 mA on -12 V Rail
    Physical
    Horizontal Pitch
    4 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.22 lb
    Box Dimensions (LxWxH)
    5.9 x 3.3 x 2.9"

    All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $37.23

    Original: $124.11

    -70%
    intellijel Gx Gate Expander Eurorack Module (4 HP)ā€”

    $124.11

    $37.23
