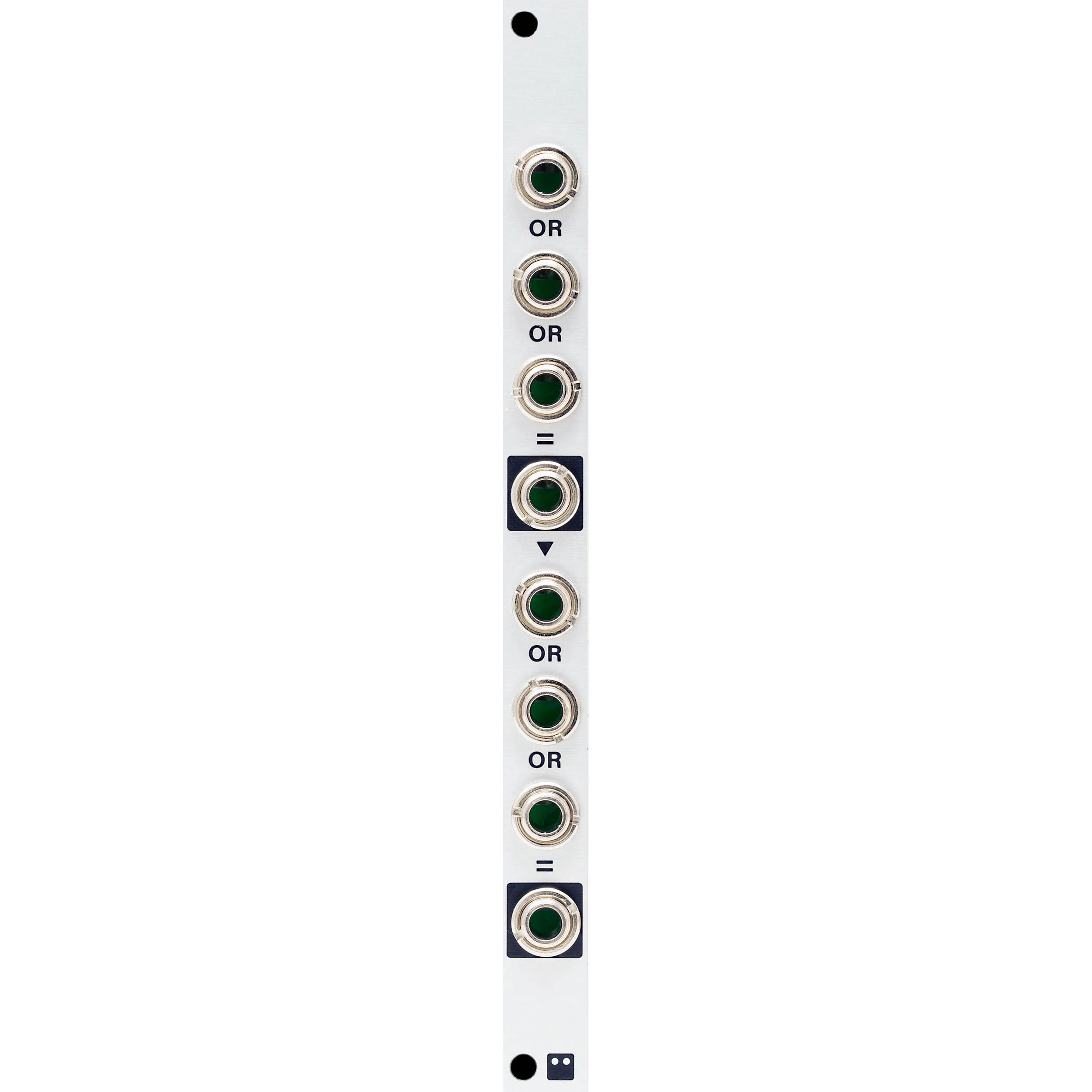

intellijel OR Logical OR / Gate Combiner Eurorack Module (2 HP)
intellijel OR-3U Overview
Combine triggers and gates into one OR output with the intellijel OR, a logical OR / gate combiner in Eurorack format. OR Logic combines incoming voltage sources (triggers, gates, etc.), where only the high values are sent to the output.
This is very useful for blending gates together to create more complex rhythms, but it can also be used to generate interesting new waveforms. Each section has three inputs and one output. The top output is normalled into the bottom section's input 1 to allow the module to function as a six-in one-out combiner. The module is passive and requires no power to operate.
- Combines logic voltage sources (triggers, gates, etc.) into a one logical OR output
- Top section normalled to bottom section, allowing either 3 signals to be combined into 2, or 6 signals to be combined into 1
- Passive design consumes no power and requires no ribbon cable
Items Included
- intellijel OR Logical OR / Gate Combiner Eurorack Module (2 HP)
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
No additional resources available
intellijel OR-3U Specs
| Power |
Passive, No Power Required
|
| Dimensions |
Width: 2 HP
Depth: 0.7" / 1.8 cm |
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.17 lb
|
| Box Dimensions (LxWxH) |
5.7 x 4 x 2.3"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
