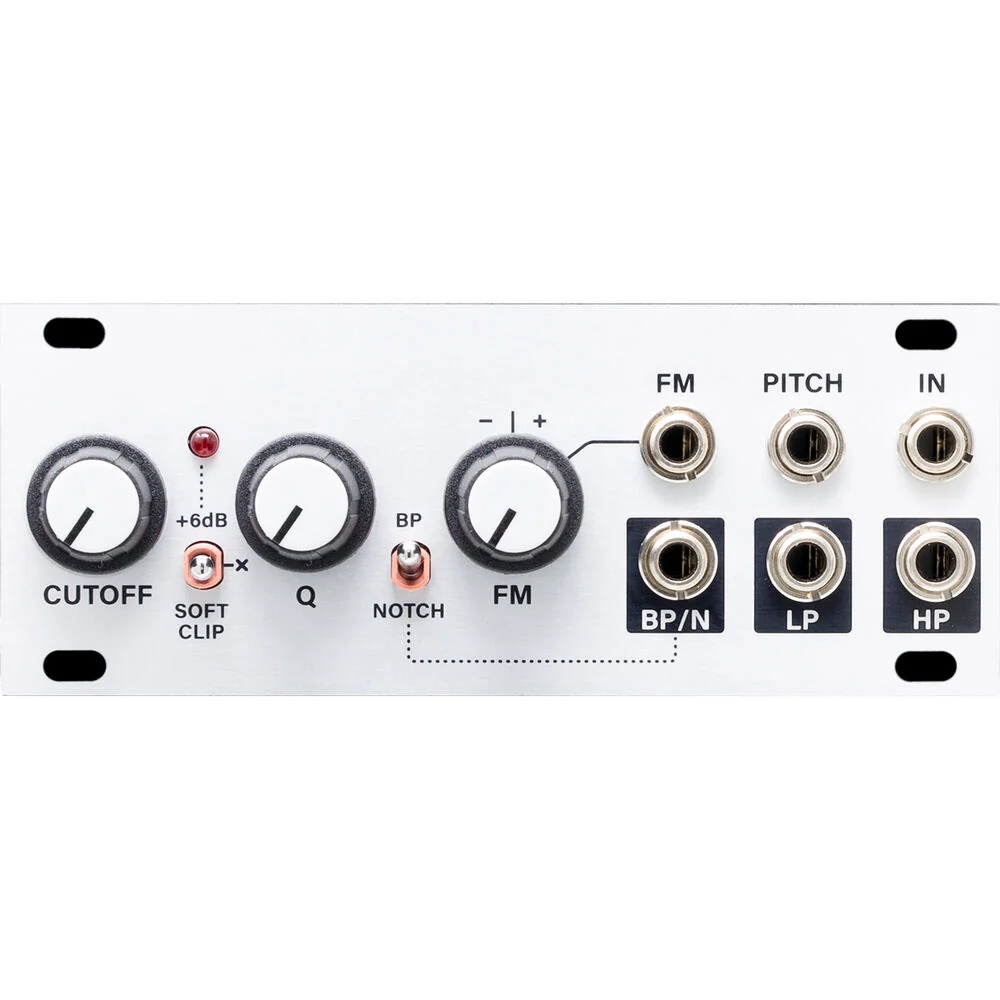

intellijel SVF 1U Multimode State Variable Filter (20 HP)
intellijel SVF-1U Overview
Sculpt your sound with the intellijel SVF 1U, a state-variable filter for sweet-sounding subtractive synthesis duties or to form the basis of more complex patches. The filter self oscillates and can be used as a sine-wave oscillator with a 4+ octave range.
The sound is punchy, clean, and precise. Explore new sounds through the dual modulation inputs and dedicated low-pass, high-pass, and band-pass / notch outputs. This filter responds beautifully to audio rate FM and you can self-patch to get even more interesting filter responses. The module includes a ribbon power cable.
- Dedicated 2-pole low-pass filter (LP) and 2-pole high-pass filter (HP) outputs
- Switchable bandpass filter (BP) and notch filter (N) output
- Optional +6 dB input boost and asymmetric clipping circuit
- PITCH input tracks 1V/oct accurately over 4+ octaves
- FM CV input with attenuverter
- Capable of generating very low distortion sine waves from 2 Hz to 20 kHz when driven to self-oscillation (Max Q)
- 20 HP Eurorack format module (1U)
- Maximum depth: 1.4" (35mm)
- Includes power ribbon cable with Eurorack power headers
- Power: +12V: 27mA, -12V: 30mA
In the Box
- intellijel SVF 1U Multimode State Variable Filter (20 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel SVF-1USpecs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
3x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
27 mA on +12 V Rail
30 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Filters |
Number of Filters: 1
Characteristic: Analog SEM-Style Type: Low-Pass, Band-Pass, Notch, High-Pass Slope: 2-Pole/12 dB (LPF) / 2-Pole/12 dB (HPF) / 1-Pole/6 dB (BPF) Key Tracking: Yes Controls: Cutoff, Resonance, FM |
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
3x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
27 mA on +12 V Rail
30 mA on -12 V Rail |
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
20 HP
|
| Included Accessories |
No
|
| Package Weight |
0.29 lb
|
| Box Dimensions (LxWxH) |
5.8 x 3.4 x 3.3"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
