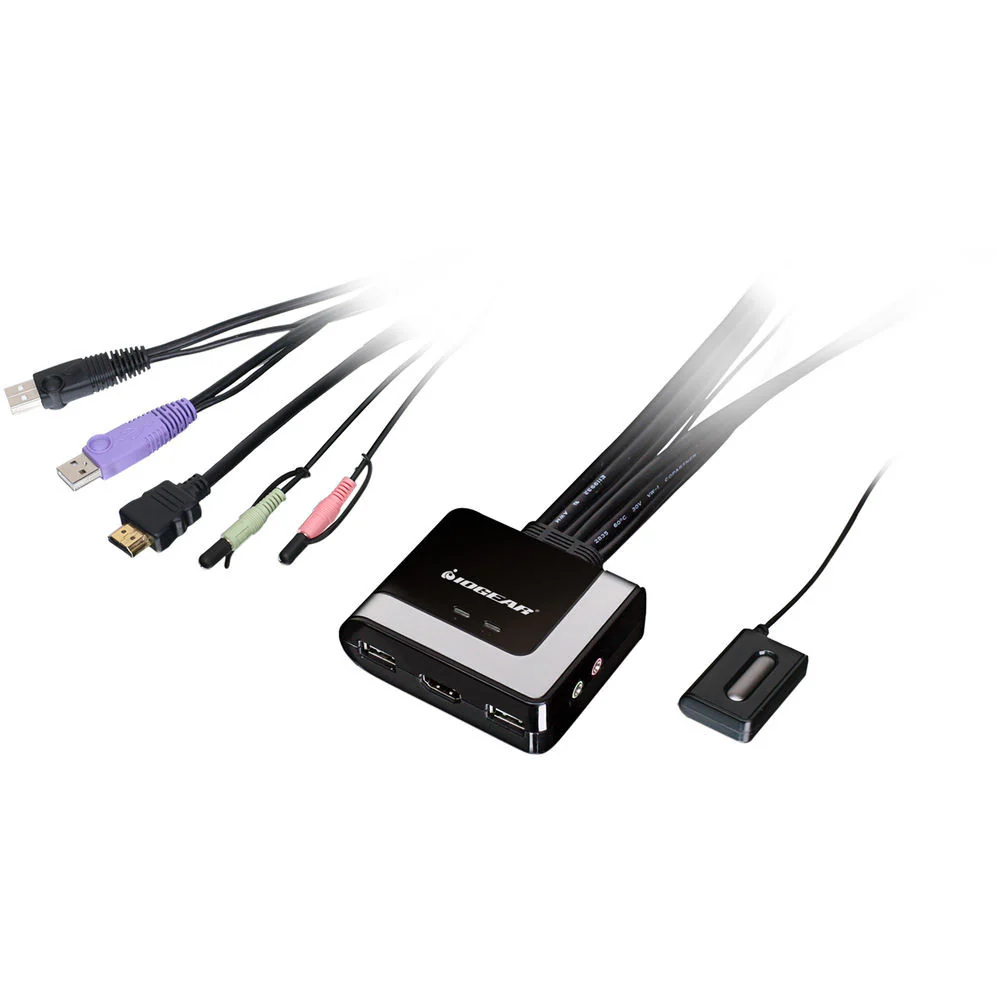

IOGEAR 2-Port HD Cable KVM Switch with DisplayPort Adapters Bundle
- Manage 2 Computers
- Integrated KVM Cables
- Includes Two DisplayPort Adapters
- 2 x USB 2.0 / 1 x HDMI / 2 x Audio Ports
- Resolutions up to 1920 x 1200 @ 60 Hz
- Digital Audio Support
- DynaSync with EDID Support
- Hotkey Switching Support
- Firmware Upgradeable
- Multi-Platform OS Support
The bundle from IOGEAR comes with the 2-Port HD Cable KVM Switch along with two HDMI to DisplayPort adapters, so you can control 2 computer systems with HDMI or DisplayPort video connections using a single USB keyboard and mouse as well as an HDMI-capable monitor. Each set of integrated cables sports one HDMI, two USB, and two 3.5mm connectors for your game console or computer. The included adapters let you convert both cables into a DisplayPort connection, so you can use this switch with DisplayPort-enabled products.
This switch offers resolutions of up to 1920 x 1200 at 60 Hz, including support for FHD 1080p. You can quickly switch between the two systems with a push of a button or using asynchronous hotkey software. It supports DynaSync so that Windows 7 can read and remember the monitor's video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Additionally, it is HDCP compliant and firmware upgradeable.
- Share a display with HDMI or DisplayPort connection as well as a USB keyboard and mouse with two USB-equipped computers
- Separate the Internet and Intranet with the click of a button
- Full 1080p and up to 1920 x 1200 @ 60Hz
- Digital Audio support
- HDCP Compliant
- Multi-OS support
- Works with game consoles
- Port switching via remote switch button, mouse, or hotkeys
- Hotkeys allows independent KVM and audio switching between computers
- Includes 2.1 stereo sound and microphone support
- USB 2.0 Peripheral Sharing via mouse port
- Connect a powered USB Hub to expand your USB connectivity
- USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers
- Power-on Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
- Re-programmable hotkey activation for keyboards without a scroll lock key
- Keyboard emulation can be disabled to support a gaming keyboard's special keys
- Mouse emulation can be disabled to support mice with special keys
- Mac and Sun keyboard support
- Firmware upgradeable
- Plug & Play - no software installation required

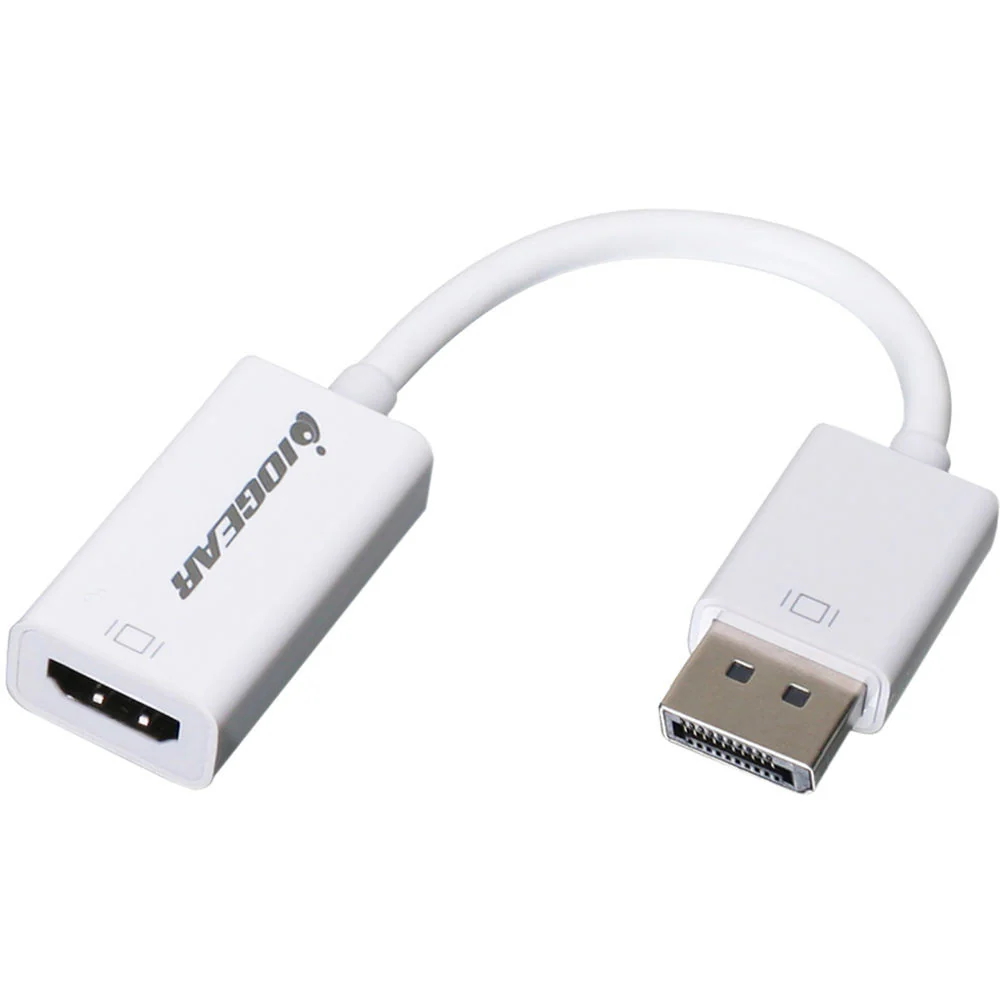

- 2 x HDMI to DisplayPort Adapters
- Limited 3-Year Warranty
| Computer Connections | |
|---|---|
| Connections | 2 |
| Console Connection | 1 |
| Port Selection | Hotkey, Remote Pushbutton, or Mouse Switching |
| Connectors | |
|---|---|
| CPU Connectors | Monitor: 2 x HDMI Type-A Male (or 2 x DisplayPort Male with adapters) Keyboard: 2 x USB Type-A Male (Purple) Mouse: 2 x USB Type-A Male (Black) Audio: 2 x 3.5 mm Mini-Stereo Jack Male (Green) Microphone: 2 x 3.5 mm Mini-Stereo Jack Male (Pink) |
| Console Connectors | Monitor: 1 x HDMI Type-A Female Keyboard: 1 x USB Type-A Female Mouse: 1 x USB Type-A Female Audio: 1 x 3.5 mm Mini-Stereo Jack Female (Green) Microphone: 1 x 3.5 mm Mini-Stereo Jack Female (Pink) |
| LED | On Line: 2 x Green |
| Adapter | |
|---|---|
| Specifications | DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps DisplayPort link tracking Compliant with DVI 1.0 up to 1.65 Gbps Supports Deep Sleep mode |
| Emulation | |
|---|---|
| Keyboard / Mouse | USB |
| Video Resolution | Up to FHD 1080p; 1920 x 1200 @ 60 Hz |
| Scan Interval | 3, 5, 10, 20 seconds (Default 5 seconds) |
| Supported Operating Systems | Windows XP, Vista, 7, 8, 8.1, 10 Mac OS 9 to 10.x Oracle Solaris Linux Unix Other USB-supported systems |
| Environmental | |
|---|---|
| Temperature / Humidity | Operation Temperature: 32 to 122�F (0 to 50�C) Storage Temperature: -4 to 140�F (-20 to 60�C) |
| Humidity Range | 0 to 80% RH, Non-condensing |
| Physical | |
|---|---|
| Material of Construction | Plastic housing |
| Dimensions (W x H x D) | 3.15 x 0.98 x 2.56" (8 x 2.5 x 6.5 cm) |
| Weight | 0.94 lb (0.42 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 9.0 x 6.4 x 2.9" |
