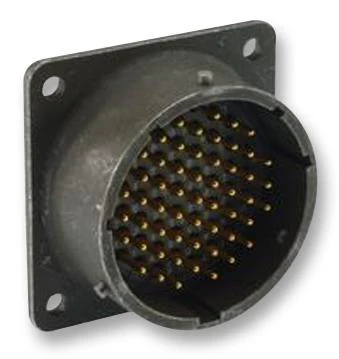

ITT Cannon KPTC2E18-32PDMB KPTC2E18-32PDMB Circular Connector Kptc Box Mount Receptacle 32 Contacts Crimp Pin Bayonet 18-32
ITT Cannon KPTC2E18-32PDMB KPTC2E18-32PDMB Circular Connector Kptc Box Mount Receptacle 32 Contacts Crimp Pin Bayonet 18-32
The KPTC2E18-32PDMB from ITT Cannon is KPTC series, MIL-DTL-26482 series I equivalent box mount receptacle with 32 contacts. The KPTC series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The high versatility general purpose KPTC series connectors are intermateable, intermountable and interchangeable with all connectors manufactured according to MIL-DTL-26482 and VG95328. Design modifications can be achieved easily at low cost.
- Bayonet coupling assures fast and reliable mating/unmating
- Environmental sealed
- Operating temperature range from -55°C to 125°C
- 500 mating cycles
- 200m/s² at 10Hz to 2000Hz vibration
- Insulation resistance is 5000Mohm
- Resilient polychloroprene insulator and grommet
- Salt spray exposure of 500hour
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy crimp pin contacts with gold plating
Commercial, Industrial
Other details
| Brand | ITT CANNON |
| Part Number | KPTC2E18-32PDMB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
