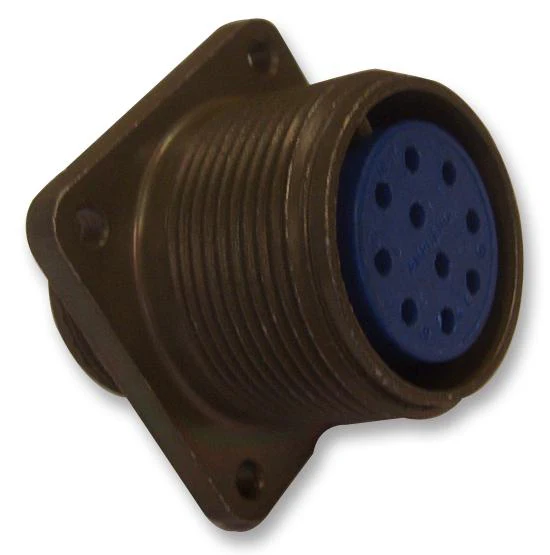

ITT Cannon MS3100E14S-6SF187 MS3100E14S-6SF187 Circular Connector MIL-DTL-5015 Series Wall Mount Receptacle 6 Contacts Solder Socket Threaded
ITT Cannon MS3100E14S-6SF187 MS3100E14S-6SF187 Circular Connector MIL-DTL-5015 Series Wall Mount Receptacle 6 Contacts Solder Socket Threaded
- 5 shell styles with 19 shell sizes
- Single key/keyway shell polarization
- High reliability, moisture and corrosion resistant
- 500 mating cycles, IP67 environmental protection
- Operates at extreme temperature range of -55°C to +125°C
- Minimum insulation resistance is 5000Mohm at 25°C
- Quick mating, threaded coupling
- Environmental sealing, low weight and cost effective
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Brass, copper alloy solder socket contacts with silver plating
Aerospace, Defence, Military, Industrial
Other details
| Brand | ITT CANNON |
| Part Number | MS3100E14S-6SF187 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $83.66
-70%$83.66
$25.10More Images
ITT Cannon MS3100E14S-6SF187 MS3100E14S-6SF187 Circular Connector MIL-DTL-5015 Series Wall Mount Receptacle 6 Contacts Solder Socket Threaded
- 5 shell styles with 19 shell sizes
- Single key/keyway shell polarization
- High reliability, moisture and corrosion resistant
- 500 mating cycles, IP67 environmental protection
- Operates at extreme temperature range of -55°C to +125°C
- Minimum insulation resistance is 5000Mohm at 25°C
- Quick mating, threaded coupling
- Environmental sealing, low weight and cost effective
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Brass, copper alloy solder socket contacts with silver plating
Aerospace, Defence, Military, Industrial
Other details
| Brand | ITT CANNON |
| Part Number | MS3100E14S-6SF187 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
