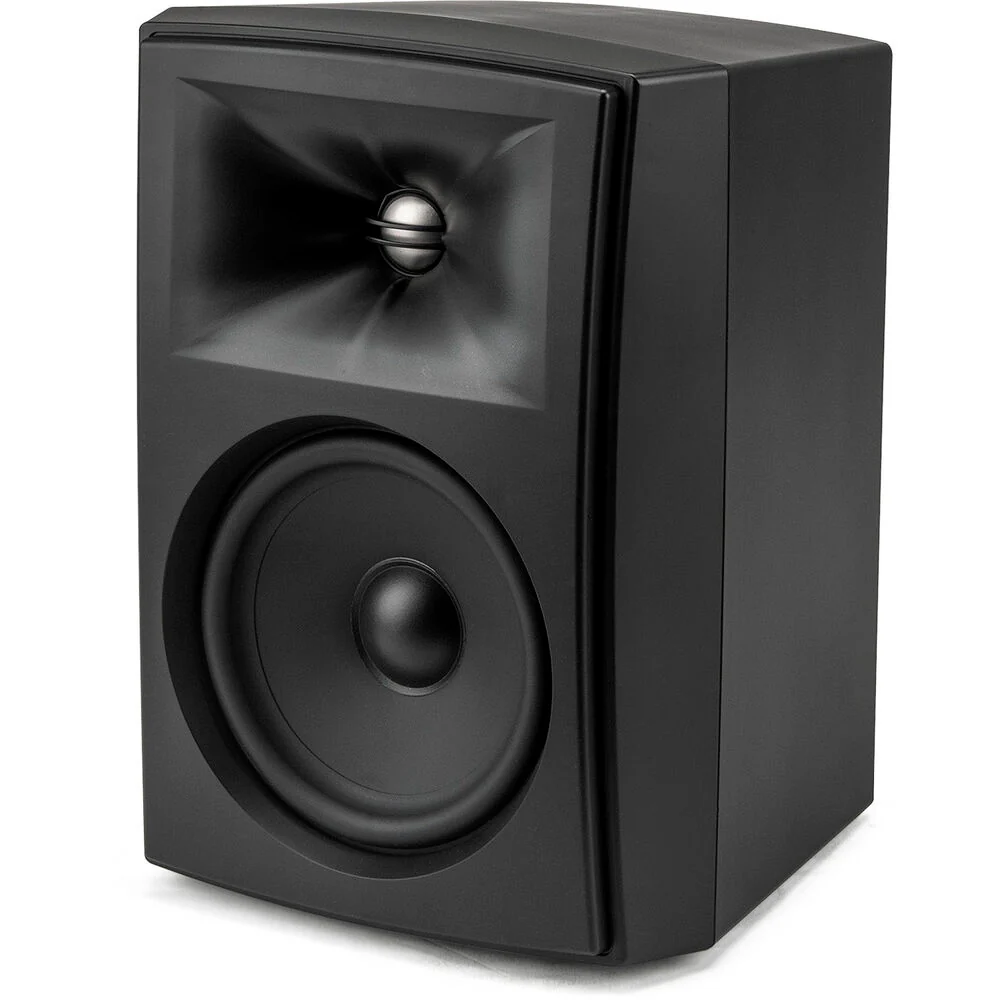

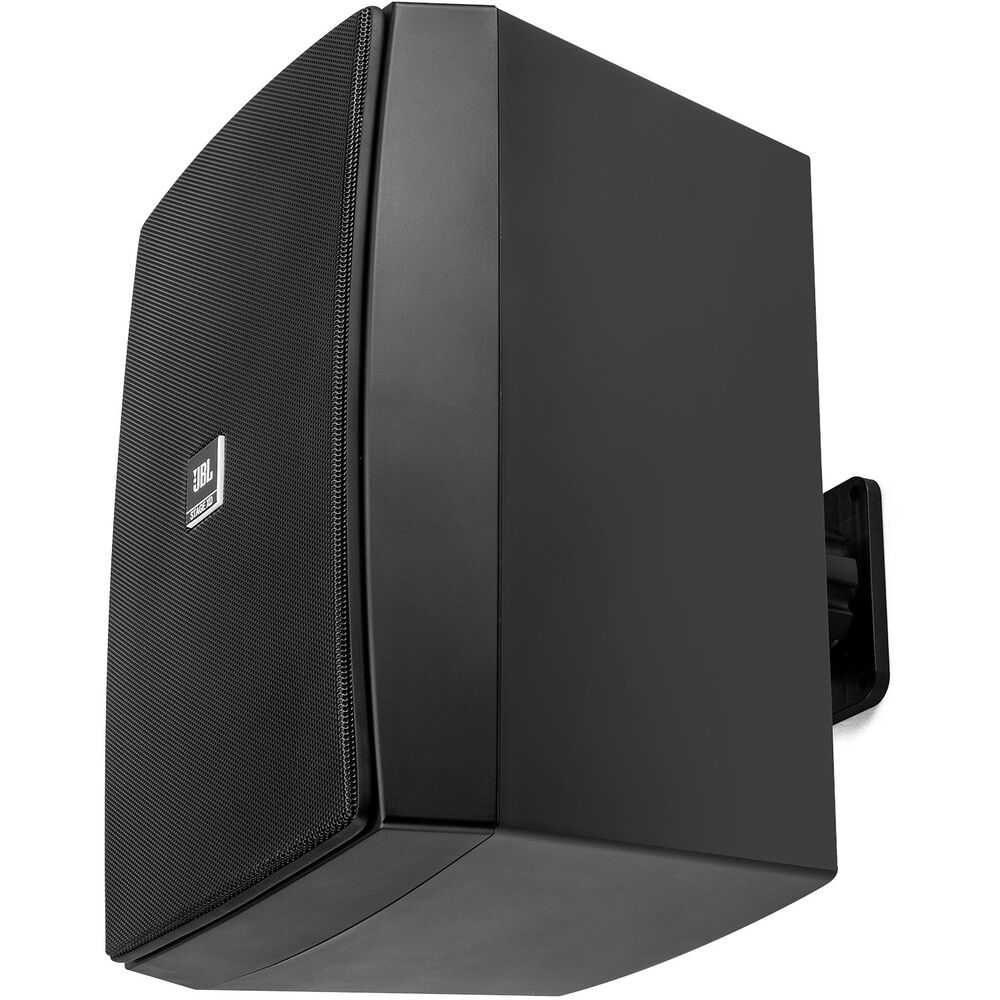

JBL Stage XD-6 2-Way 6.5" Indoor/Outdoor All-Weather Loudspeaker (Black, Pair)
JBL Stage XD-6 Overview
Designed with style and mounting flexibility, the black JBL Stage XD-6 is a pair of all-weather loudspeakers that are perfect for indoor or outdoor applications. The speaker can handle up to 100W of power to drive the 6.5" polypropylene woofer and 1" aluminum-dome tweeter, which offer a combined frequency response of 55 Hz to 25 kHz (-6 dB) and plenty of volume to fill your space.
The integrated acoustic lens and patented High-Definition Imaging (HDI) waveguide geometry ensure the sound is clear and accurate. The XD-6 includes two zero bezel grilles, four rubber feet, a grille removal tool, and two wall installation kits (mounting brackets).
- IP67 waterproof rating provides protection from the harshest of outdoor conditions
- Aluminum-dome tweeter with acoustic lens for smooth on- and off-axis frequency response
- High-Definition Imaging (HDI) waveguides with optimized geometry for smooth dispersion and low distortion
- Included wall-mount bracket allows for easy installation and angle adjustment
- Zero bezel magnetically attached grilles
- Rotatable logo for horizontal and vertical applications
- Sustainably designed packaging and product�the first repairable IP67 outdoor loudspeaker
Items Included
- JBL Stage XD-6 2-Way 6.5" Indoor/Outdoor All-Weather Loudspeaker (Black, Pair)
- 2 x Zero Bezel Grilles
- 4 x Rubber Feet
- Grille Removal Tool
- 2 x Wall Installation Kit (Mounting Bracket)
- Limited 5-Year Manufacturer Warranty (Electronics)
- Limited 2-Year Manufacturer Warranty (Enclosure)
Additional Resources
No additional resources available
JBL Stage XD-6 Specs
| Speaker Configuration |
2-Way
|
| Power Handling |
20 to 100 W RMS
|
| Drivers |
1x 1" / 25.4 mm Aluminum Dome Tweeter
1x 6.5" / 165.1 mm Polypropylene Cone Woofer |
| Frequency Response |
55 Hz to 25 kHz (-6 dB)
|
| Inputs/Outputs |
2x Spring Clip Pair Input
|
| Speaker Configuration |
2-Way
|
| Power Handling |
20 to 100 W RMS
|
| Recommended Amplifier Power |
20 to 100 W RMS
|
| Drivers |
1x 1" / 25.4 mm Aluminum Dome Tweeter
1x 6.5" / 165.1 mm Polypropylene Cone Woofer |
| Passive Radiators |
No
|
| Enclosure Type |
Sealed
|
| Frequency Response |
55 Hz to 25 kHz (-6 dB)
|
| Impedance |
6 Ohms
|
| Inputs/Outputs |
2x Spring Clip Pair Input
|
| Maximum Wire Gauge |
10 AWG
|
| Crossover |
2.5 kHz
|
| Sensitivity |
88 dB
|
| Color |
Black
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Placement & Mounting Options |
Wall-Mount (with Included Hardware)
|
| Grille |
Perforated Metal (Removable)
|
| Dimensions |
8.7 x 11.8 x 10.1" / 22.1 x 30 x 25.7 cm
|
| Weight |
2.9 lb / 1.3 kg
|
| Package Weight |
18.13 lb
|
| Box Dimensions (LxWxH) |
19.3 x 14.8 x 10.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
