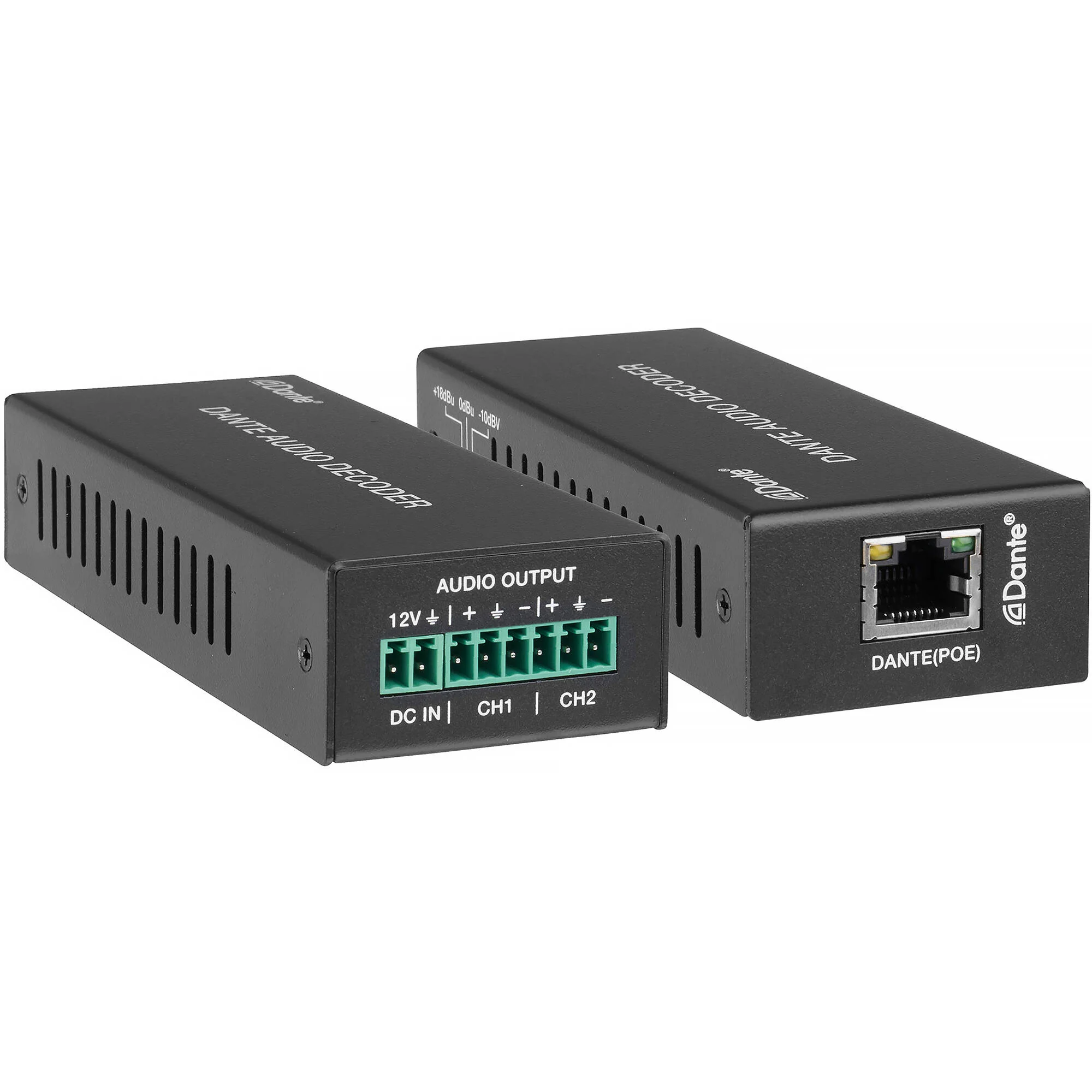

KanexPro 2-Channel Dante to Analog Audio Decoder with PoE
KanexPro DTE-DCODE Overview
Use the 2-Channel Dante to Analog Audio Decoder with PoE from KanexPro to output PCM 2.0 analog audio from a Dante audio-over-IP network. This decoder features 12V input and power over Ethernet, balanced or unbalanced audio output, and configurable latency settings.
Applications
Use this decoder to seamlessly integrate Dante audio into your analog-equipped meeting rooms, production facilities, and educational setups.
UPC: 813982023512
Items Included
- KanexPro 2-Channel Dante to Analog Audio Decoder with PoE
- 6-Pin Euroblock Connector (3.81mm)
- 2-Pin Euroblock Connector (3.81mm)
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro DTE-DCODE Specs
Connections
| Dante Interface |
1 x RJ45 with Power over Internet
|
| Output |
1 x 6-Pin, 3.81 mm Euroblock
|
Technical
| Transmission Distance |
328' / 100 m via Cat 6/6A
|
| Audio Formats |
PCM 2.0: 44.1 kHz, 48 kHz, 96 kHz, up to 24-bit
|
| Frequency Response |
20 Hz to 20 kHz
|
| Control |
Dante
|
| Encoding |
PCM 16, 24, 32
|
| Latency |
5.0, 2.0, 1.0 ms
|
| Sample Rate |
44.1, 48, 88.2, 96 kHz
|
Mechanical
| Housing Material |
Metal
|
| Color |
Black
|
| Power Supply |
Input: 12 VDC
|
| PoE Interface |
Input: IEEE802.3af Class 0
|
| Operating Temperature Range |
32 to 104? F / 0 to 40? C
|
| Storage Temperature Range |
-4 to 140? F / -20 to 60? C
|
| Relative Humidity, Non-Condensing |
20 to 90%
|
| Dimensions |
4.7 x 1.9 x 1" / 12 x 4.7 x 2.6 cm
|
| Weight |
6.6 oz / 186 g
|
Packaging Info
| Package Weight |
0.615 lb
|
| Box Dimensions (LxWxH) |
8.1 x 3.3 x 2.7"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
