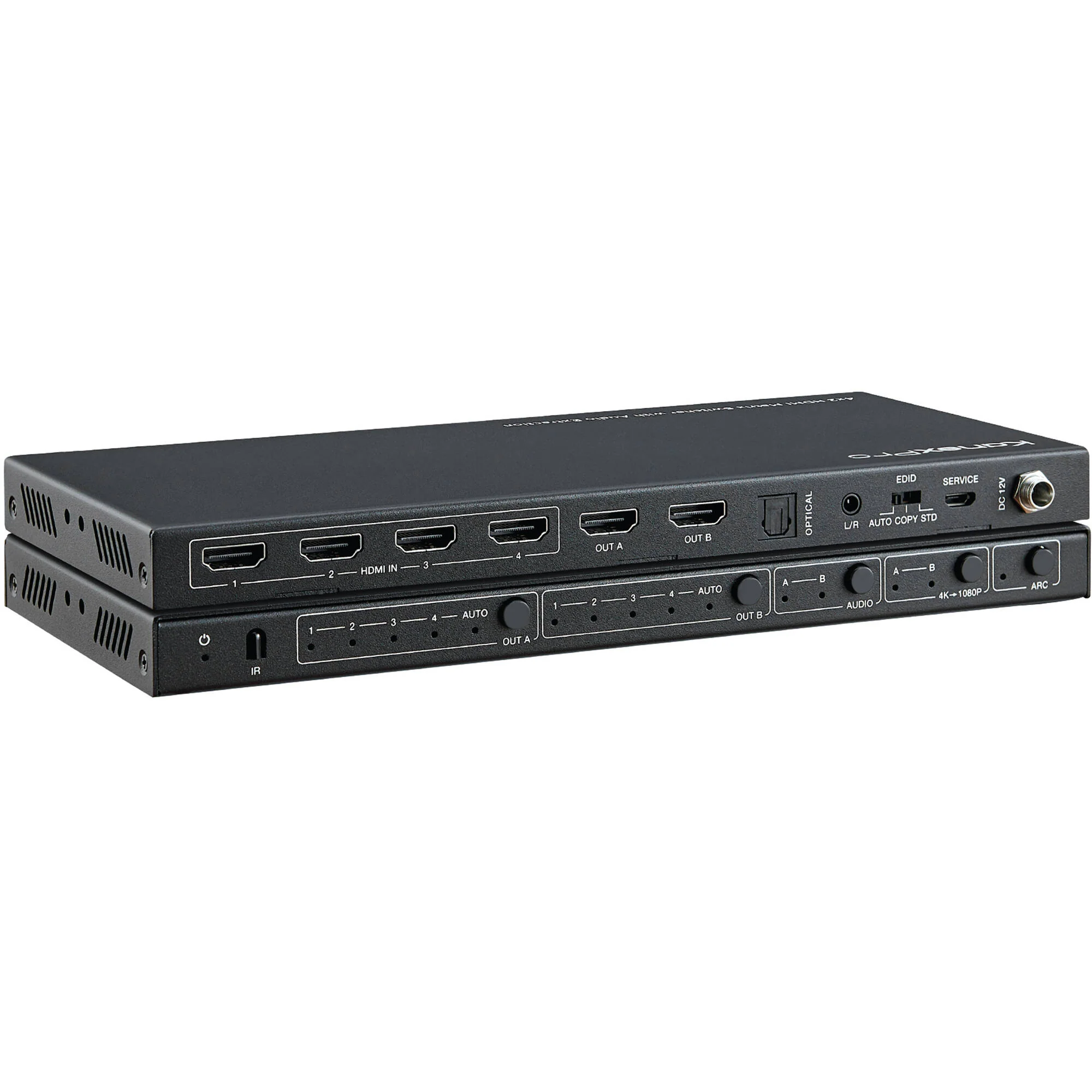

KanexPro 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs
HomeStore

KanexPro 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs

KanexPro 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs

KanexPro HDMX42A Overview

The 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs from KanexPro allows you to display four HDMI sources on two HDMI displays and route one source to the other using the panel control buttons or the included IR remote control. The switcher can also extract audio from the HDMI input and output digital or analog audio with optical TOSLINK and L/R 3.5mm stereo outputs to an independent mixer or speaker system.

The switcher features a slim, rectangular, robust design and can be desktop- or wall-mounted using the supplied mounting ears. It supports up to UHD 4K60 resolution on input and output and can downscale to 1080p60 video output with a maximum bandwidth of 18 Gb/s. The unit features audio format support for PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX/96/24/High Res, and DTS-HD Master audio. Other features include support for HDR and 3D video, HDCP 2.2, smart EDID management, ESD protection, ARC (Audio Return Channel) as well as Dolby Vision, HDR 10+, and HLG.

Key Features
Route four HDMI sources to two HDMI displays
Supports up to UHD 4K60 resolution with 8/10/12-bit 4:2:0 color and up to 8-bit 4:4:4 color
Support for downscaling to 1008p
HDR and 16-bit deep color support; supports Dolby Vision, HDR 10+, HLG
Supports source audio extraction via optical TOSLINK or analog L/R outputs
Supports ARC (Audio Return Channel)
Front-panel and IR remote control
HDCP 2.2 compliant
Supports advanced EDID management including AUTO, COPY, and STD
Robust, slim, rectangular design
Mounting ears included
UPC: 813982022560

In the Box

  • KanexPro 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs
  • IR Remote Control
  • Power Adapter
  • Mounting Ear Set

    KanexPro HDMX42A Specs

    Processing
    Switching Type IR Remote, Pushbutton
    Processing Resolution UHD 4K at 60
    Color Processing 8-Bit 4:4:4 YCbCr
    10-Bit 4:2:0 YCbCr
    12-Bit 4:2:0 YCbCr
    Input
    Video Inputs 4 x HDMI (DVI / HDMI 2.0) Female
    Input Video Format HDMI (8/10/12-Bit 4:2:0 YCC)
    UHD 4K at 30/60 fps
    HDMI (8-Bit 4:4:4 YCC)
    UHD 4K at 30/60 fps
    Embedded Audio Input HDMI: 7-Channel (per Input)
    Output
    Video Outputs 2 x HDMI (HDMI 2.0) Female
    Output Video Format HDMI (8/10/12-Bit 4:2:0 YCC)
    UHD 4K at 30/60 fps
    1080p 30/60 fps
    Audio Outputs 1 x 1/8" / 3.5 mm TRS Stereo Analog Female
    1 x TOSLINK 8-Channel S/PDIF Female
    Output Audio Format Analog
    Embedded Audio Output HDMI
    Connectivity
    Other I/O 1 x Micro-USB Firmware Input
    HDCP Support Version 2.2
    HDR Compatibility HDR10+, Dolby Vision, Hybrid Log Gamma
    DTS Compatibility DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
    Dolby Compatibility Dolby Digital, Dolby Digital Plus, Dolby TrueHD
    Hardware
    Wi-Fi None
    Bluetooth None
    Power
    Power I/O 1 x Barrel (12 VDC at 1 A) Input
    Power Consumption Device: 3.8 W
    Power Supply: 100 to 240 VAC
    Environmental
    Operating Temperature 32 to 72Ā°F / 0 to 40Ā°C
    Storage Temperature -4 to 140Ā°F / -20 to 60Ā°C
    Operating Humidity 20 to 90%
    General
    Dimensions 9.9 x 4.1 x 0.8" / 25.1 x 10.5 x 2Ā cm
    Weight 1.4Ā lb / 620Ā g
    Packaging Info
    Package Weight 2.12 lb
    Box Dimensions (LxWxH) 10.7 x 7.3 x 2.8"

    KanexPro HDMX42A Reviews
