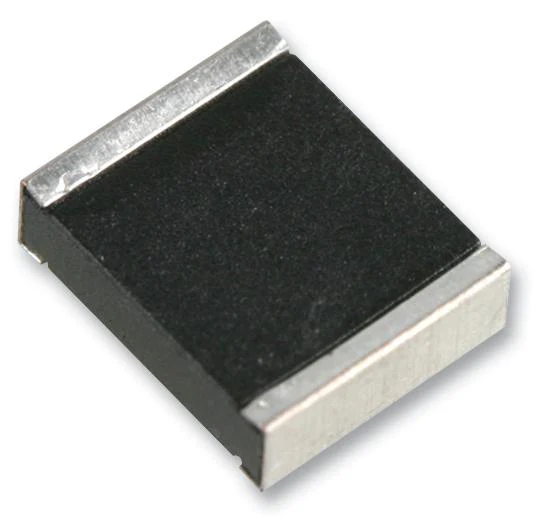

Kemet F161PU104K100V F161PU104K100V General Purpose Film Capacitor Metallized PET Stacked 2220 [5650 Metric] 0.1 µF ± 10% 63 V

KEMET's F161 Series polyester (PET) film surface mount capacitor is encapsulated in a self-extinguishing material meeting the requirements of UL 94 V-0. This series meets IEC 60384-19 standards, as well as the demanding Automotive Electronics Council's AEC-Q200 qualification. Typical applications include bypassing and signal coupling. F161 is a general-purpose series designed for the highest reliability.

• Rated voltage: 50 - 630 VDC / 30 - 250 VAC
• Capacitance range: 0.01 - 12 µF / Capacitance tolerance: ±5%, ±10%, ±20%, other tolerances available on request.
• EIA size: 2220 - 6560
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of -55Ë�C to +125Ë�C
• Automotive grade AEC-Q200 qualified

Other details

Brand	KEMET
Part Number	F161PU104K100V
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
CAD Multiple Formats EN
Manufacturer Catalogue EN
