Klein Instruments K-10A Colorimeter
HomeStore

Klein Instruments K-10A Colorimeter

Klein Instruments K-10A Colorimeter

Klein Instruments METK10-A Overview

  • 1Description
  • 2Accurate Filters
  • 3Versatility
  • 4Klein Chromasurf
  • 5Cross platform
  • 6Streamlined and Intuitive
  • 7Data Display
  • 8Real-Time Flicker Analysis
  • 9Visual calibration
  • 10Flicker

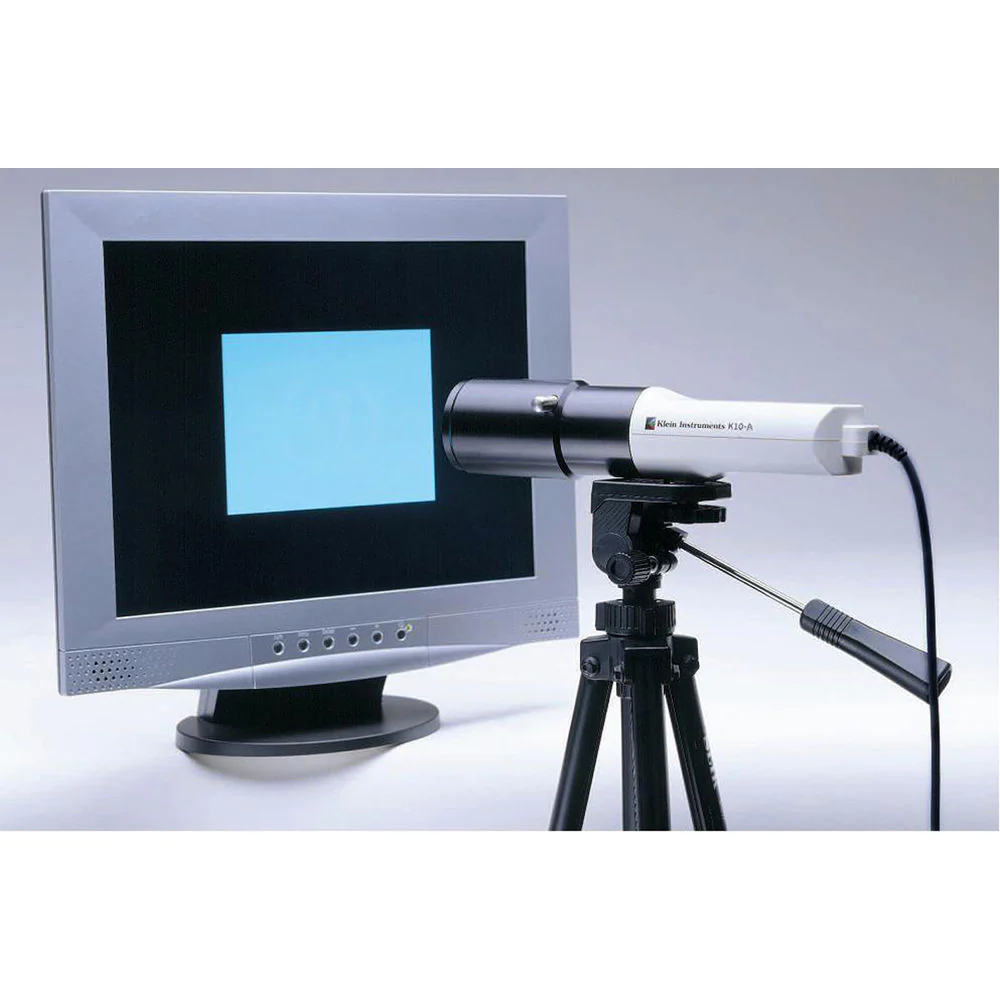

The Klein Instruments K-10A Colorimeter from SpectraCal is a device that can stream intensity data in 3.2 milliseconds and can provide color data in 125 milliseconds. It is sensitive and color accurate and is designed for quality control and production line purposes. The 0.20 x 0.20" Klein diodes give the probe superior performance in extremely low light down to 0.00006 cd/mĀ².

The K10-A is ruggedly constructed with machined aluminum and high impact plastic. It is equipped with LED aiming lights that can be turned on and off by rotating the aluminum knob. The auto ranging is solid state, and the housing is impact resistant to hold up to the 24 hours a day, seven days a week usage. Its' compact size and light weight make transportation convenient. It is also fitted with a universal tripod mount for positioning and integration into workflows.

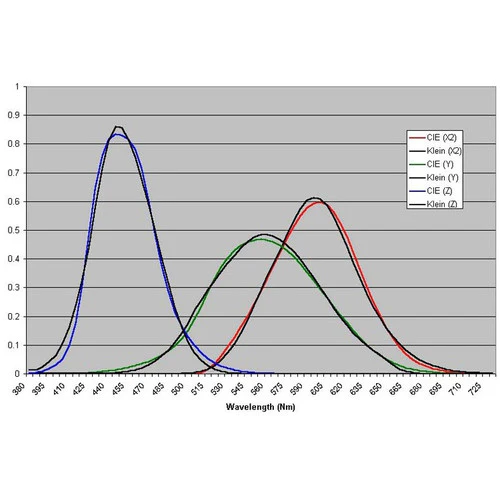

Accurate Filters
Each diode has a specially layered filter pack designed for maximum color accuracy.
Versatility
The Klein K10-A provides industry standard colorimetry analysis, as well as the capability to measure flicker. The probe can measure color and flicker on OLEDs, LED backlit displays, CRTs, plasmas, and projectors. The Klein K10-A can also measure and log flashes from various direct light sources and features aiming lights to outline the measurement area of the probe.
Klein Chromasurf
The included Klein Chromasurf companion software is a streamlined, user-friendly interface for color calibration and flicker analysis. Klein SDK, which allows users to develop customized solutions for measuring with a Klein colorimeter can be purchased separately.
Cross platform
Chromasurf is compatible with Windows, Mac, and Linux operating systems.
Streamlined and Intuitive
Chromasurf features a simple interface, with easy access to all the powerful features needed in calibration.
Data Display
Chromasurf gives the user control over how data is visualized. The graph or chart can be changed to different configurations and displayed units can also be manipulated for added versatility.
Real-Time Flicker Analysis
The software's flicker panel gives immediate access to information as it's gathered. Flicker can be displayed in multiple formats to suit multiple applications.

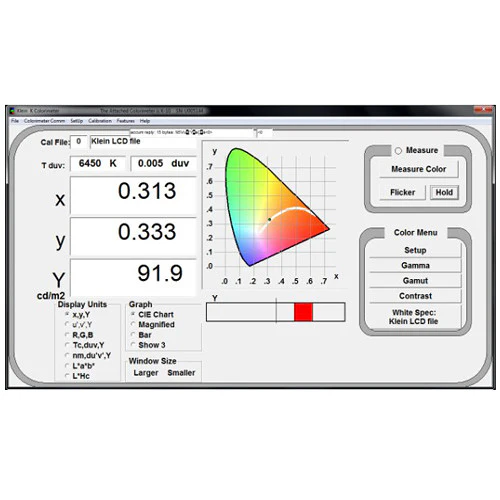

Visual calibration
Chromasurf provides real-time visual information regarding whitepoint, RGB primaries, and gamut.

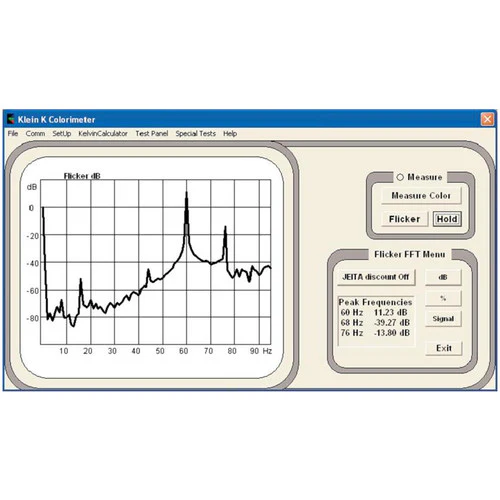

Flicker
The Klein K10-A also functions as an FFT (Fast Fourier Transform) flicker meter. The probe measures and integrates Y data in the head, streams in real time to the PC, and then the FFT is performed. The Klein K10-A can measure regular flicker between 1 to 150 Hz and includes multiple methods for displaying flicker data including JJEITA, VESA, Percent Flicker, and Contrast methods which are selectable in the software. The Klein K10-A can be used to analyze any luminance source including the common refresh-rate flicker in monitors, and random flashes caused by the transmission of current variations through solid state devices (LEDs). All flicker information can be logged and reported with Klein Chromasurf.

In the Box

  • Klein Instruments K-10A Colorimeter
  • Limited 1-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Accurate Filters
    • Versatility
    • Klein Chromasurf
    • Cross platform
    • Streamlined and Intuitive
    • Data Display
    • Real-Time Flicker Analysis
    • Visual calibration
    • Flicker

    Klein Instruments METK10-A Specs

    Construction
    Machined aluminum and high-impact plastic
    Controls
    Aluminum knob
    Indicators
    LED aiming lights
    Operating Temperature
    59 to 95Ā°F / 15 to 35Ā°C
    Weight
    3 lb / 1.4 kg
    Packaging Info
    Package Weight
    6.4 lb
    Box Dimensions (LxWxH)
    16.6 x 13 x 4.3"
