Kokusai Denki Electric XA20sx8.5BERM-3 ENG Lens with MS-01 Studio Control Kit
Kokusai Denki Electric XA20sx8.5 Overview

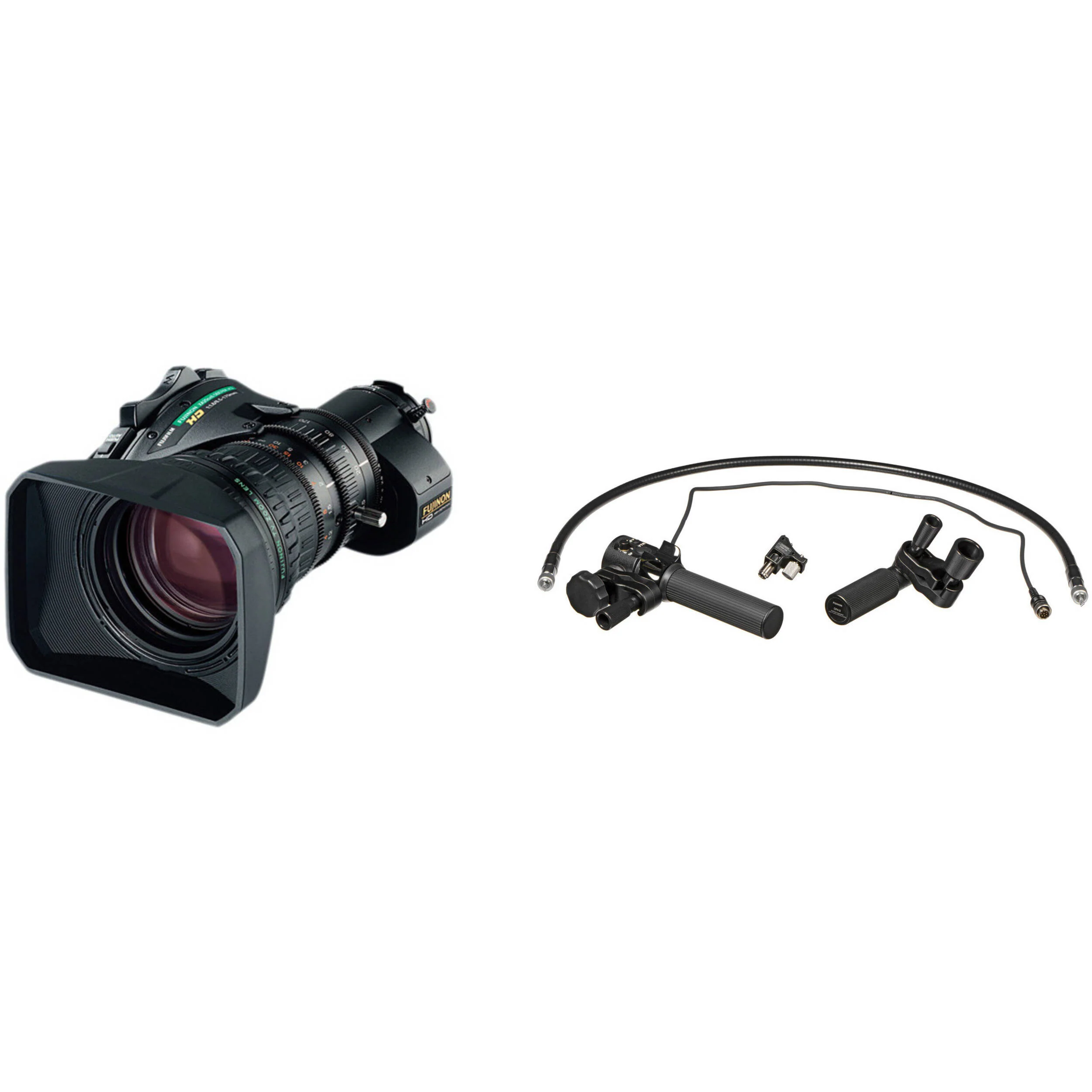

Manage your ENG lens with an electronic servo control unit using theĀ Kokusai Denki Electric XA20sx8.5BERM-3 ENG Lens with MS-01 Studio Control KitĀ fromĀ . This comprehensive kit bundles an XA20sx8.5BERM-K3 8.5-170mm ENG lens with an MS-01 Sudio Control Kit.

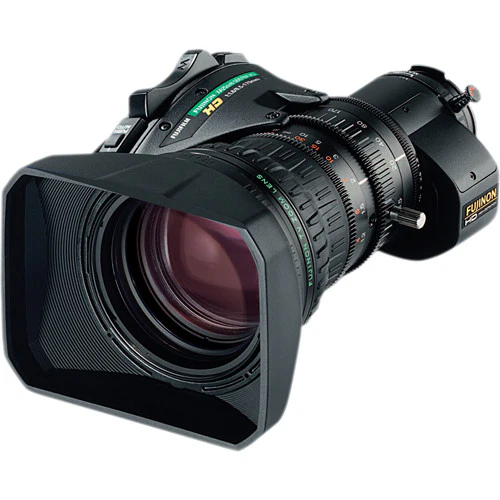

The Fujinon XA20sx8.5BERM-K3 ENG Lens is an 8.5-170mm lens, designed to provide 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is also included.
Internal focusing minimizes the effects of lens breathing, which ensures a more consistent focal length when adjusting focus. Fujinon's QuickZoom technology improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length.

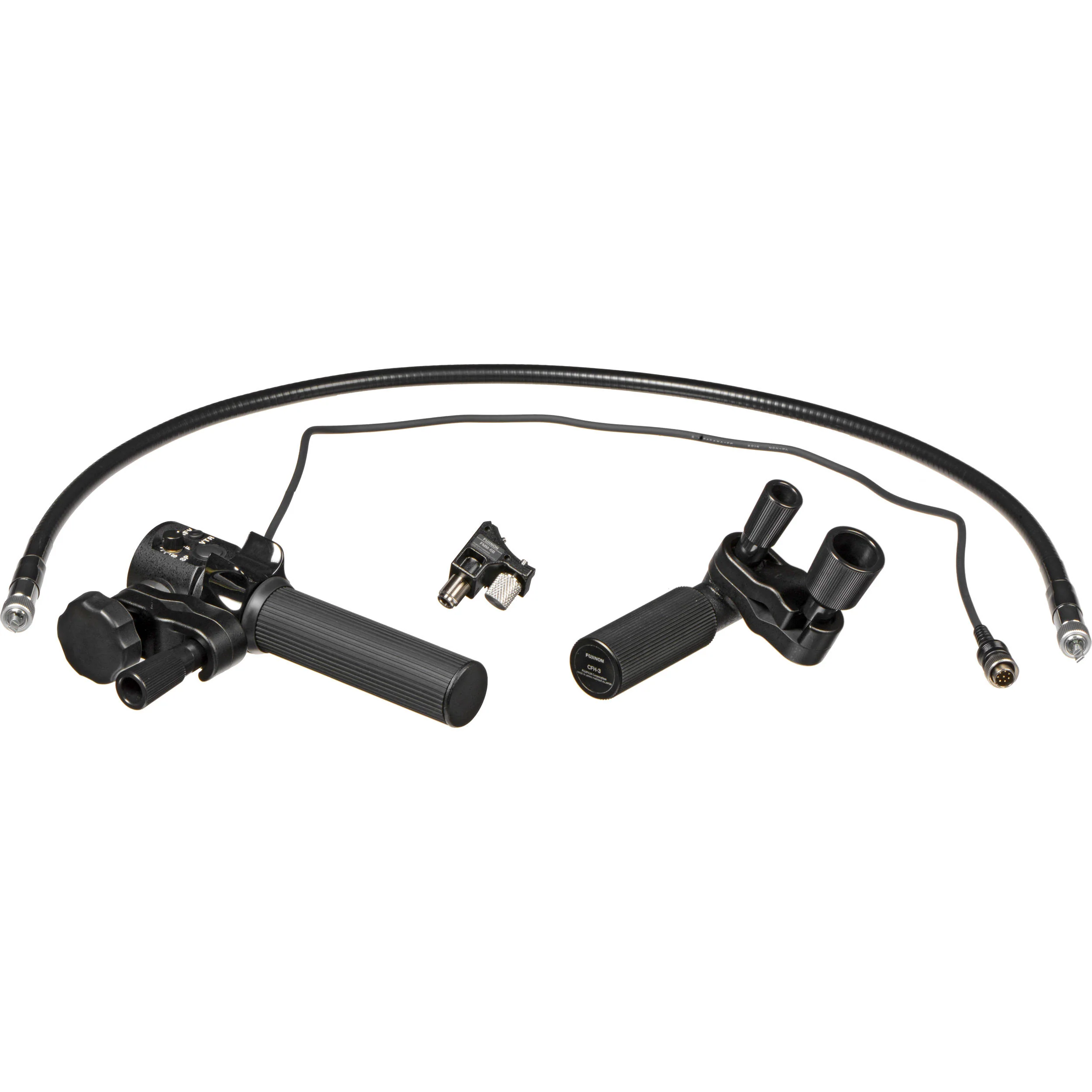

The Fujinon MS-01 is a semi-servo kit consisting of the SRD-92B zoom servo demand, CFH-3 focus handle/grip, CFC-12-990 flexible cable, and FMM-6B manual focus module. The zoom demand is an electronic servo control unit that allows the same handheld servo control of the lens when your camera is mounted on a tripod. The focus grip connects to your lens mechanically, providing a physical connection for precise focus adjustment. The kit provides precision control for ENG/EFP lenses over a variety of applications.
Items Included
- Fujinon XA20sx8.5BERM-K3 ENG Lens
- Limited 2-Year Manufacturer Warranty (Parts & Labor)
- Fujinon MS-01 Rear Zoom and Focus Lens Control Kit
- Fujinon SRD92B Zoom Rate Demand
- Fujinon CFH3 Focus Grip
- Fujinon FMM-6B Manual Focus Module for Select Fujinon ENG/EFP Lenses
- Flexible Cable (CFC-12-990)
- Limited 90-Day Manufacturer Warranty
Additional Resources
No additional resources available
Kokusai Denki Electric XA20sx8.5 Specs
| Sensor Compatibility |
2/3" (16:9)
|
| Focal Length |
8.5 to 170mm
|
| Built-In Extender |
2x
|
| Zoom Ratio |
20x
|
| Angle of View |
16:9
Wide: 58.85 x 35.18Ā° (H x V) Tele: 3.23 x 1.82Ā° (H x V) |
| Maximum Aperture |
f/1.8 to 2.7
|
| Focus Type |
Manual Focus
|
| Filter Thread |
M82 x 0.75 mm
|
| Minimum Focus Distance |
From Camera Sensor: 3.61' / 1.1Ā m
|
| Minimum Object Distance |
2.95' / 0.9Ā m
|
| Dimensions |
3.3 x 7.1" / 85.0 x 180.8Ā mm (Ćø x L)
|
| Weight |
3.48Ā lb / 1.58Ā kg
|
| Package Weight |
6.15 lb
|
| Box Dimensions (LxWxH) |
15.65 x 14 x 11.55"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
