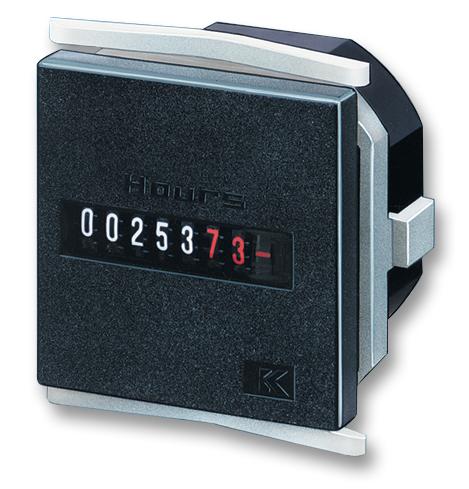

Kuebler 3.220.401.075 Panel Mount Timer Hour Meter H57 187 VAC 264 0 s 99999.99 h 45 mm

The 3.220.401.075 is a 7-digit standard DIN clip-mount Electromechanical Hour Meter/Timer with high shock and impact resistance. This counter has a reduced mounting depth. It can be used in many different fields of application. This non-resettable counter is extremely tamper-proof.

• Without reset
• Magnified large figures
• High reliability
• Data retention in case of power failure
• Long service life
• Screw terminals electrical connection
• Any mounting position
• Plastic PC (polycarbonate) housing
• IP52 Protection rating

Applications

Industrial, Clock & Timing, Test & Measurement, Consumer Electronics, Lighting, Imaging, Video & Vision, Medical

Product details

Supply Voltage Min	187VAC
Supply Voltage Max	264VAC
Time Min	0s
Time Max	99999.99h
Panel Cutout Height	45mm
Panel Cutout Width	45mm
Product Range	-

Other details

Brand	KUEBLER
Part Number	3.220.401.075
Quantity	Each
Technical Data Sheet EN
