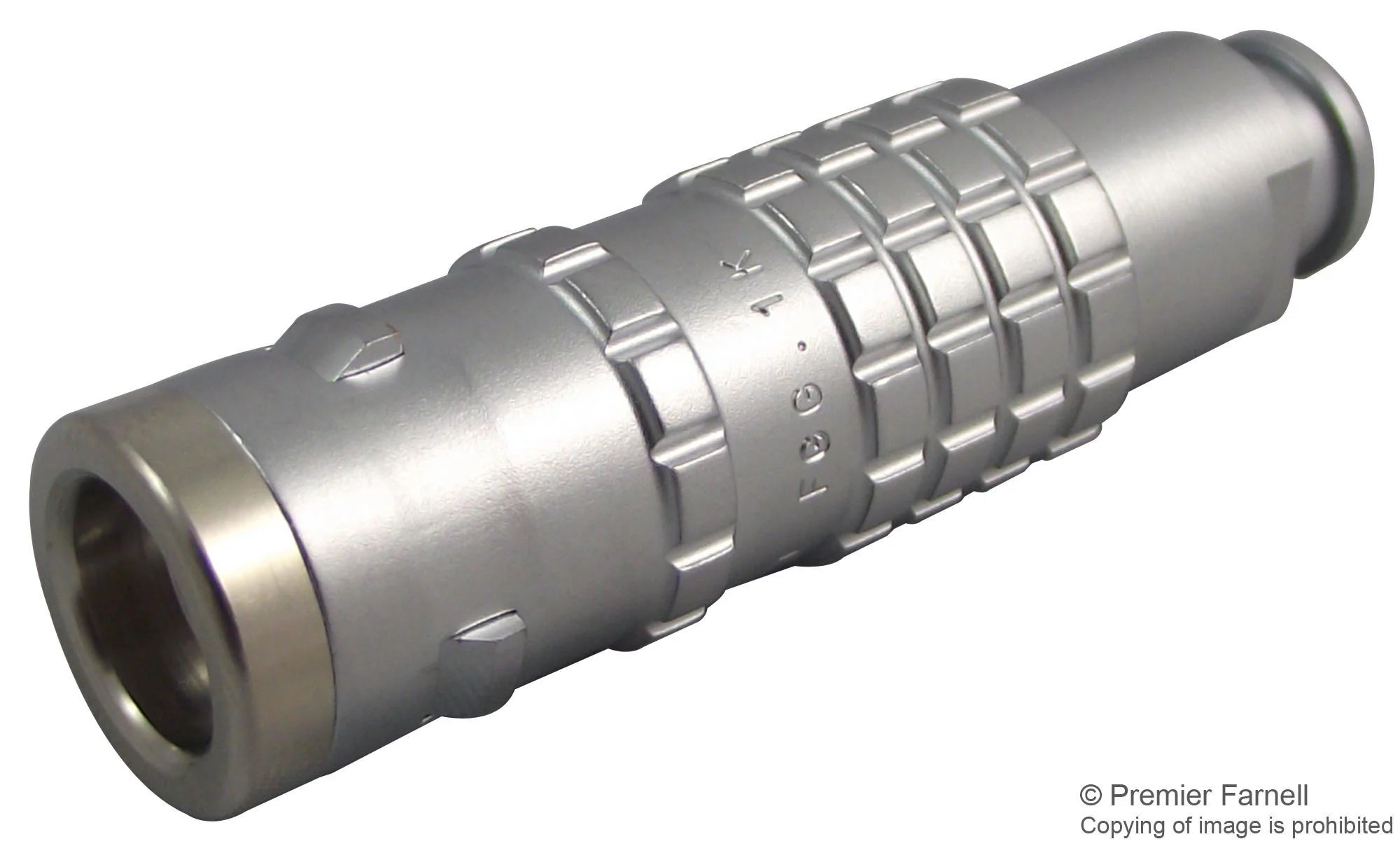

LEMO FGG.1K.304.CLAC55Z Circular Connector, 1K Series, Cable Mount Plug, 4 Contacts, Solder Pin, Push-Pull, Brass Body
LEMO FGG.1K.304.CLAC55Z Circular Connector, 1K Series, Cable Mount Plug, 4 Contacts, Solder Pin, Push-Pull, Brass Body
The FGG.1K.304.CLAC55Z is a 4-way Circular Connector, 1K series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 1K series connector offers a solution for most outdoor applications. The integral sealing within both plug and socket offers a watertight connection when mated to IP68. The push pull latching mechanism provides a secure connection whilst the density of the contacts provide for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 10A Current rating
- PEEK insulator
- G Key standard
- IP68 Protection rating
- 5000 Maximum matings
- 4.8mR Maximum resistance
- 0.9mm Contact diameter
- 360� Screening for full EMC shielding
- 4 Low voltage insert configuration
Applications
Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 4Contacts |
| Contact Plating | - |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | 1K Series |
| Contact Material | - |
| Circular Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | FGG.1K.304.CLAC55Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$79.59
