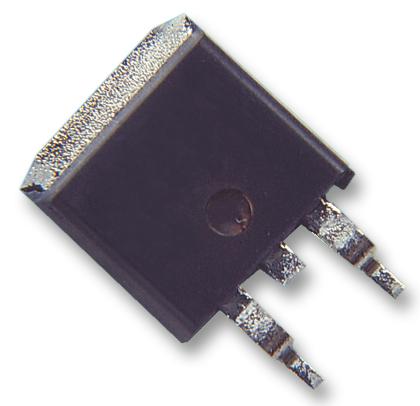

LITTELFUSE IXFA72N30X3 Power MOSFET, N Channel, 300 V, 72 A, 0.019 ohm, TO-263, Surface Mount
LITTELFUSE IXFA72N30X3 Power MOSFET, N Channel, 300 V, 72 A, 0.019 ohm, TO-263, Surface Mount
X3-class HiPerFET� power MOSFET suitable for switch-mode and resonant-mode power supplies, DC-DC converter, PFC circuits, AC and DC motor drives, robotics and servo controls applications.
- Low RDS(ON) and QG
- Avalanche rated
- Low package inductance
- High power density
- Easy to mount
- Space savings
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 300V |
| Continuous Drain Current Id: 72A |
| Drain Source On State Resistance: 0.019ohm |
| Transistor Case Style: TO-263 |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 4.5V |
| Power Dissipation: 390W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | LITTELFUSE |
| Part Number | IXFA72N30X3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
