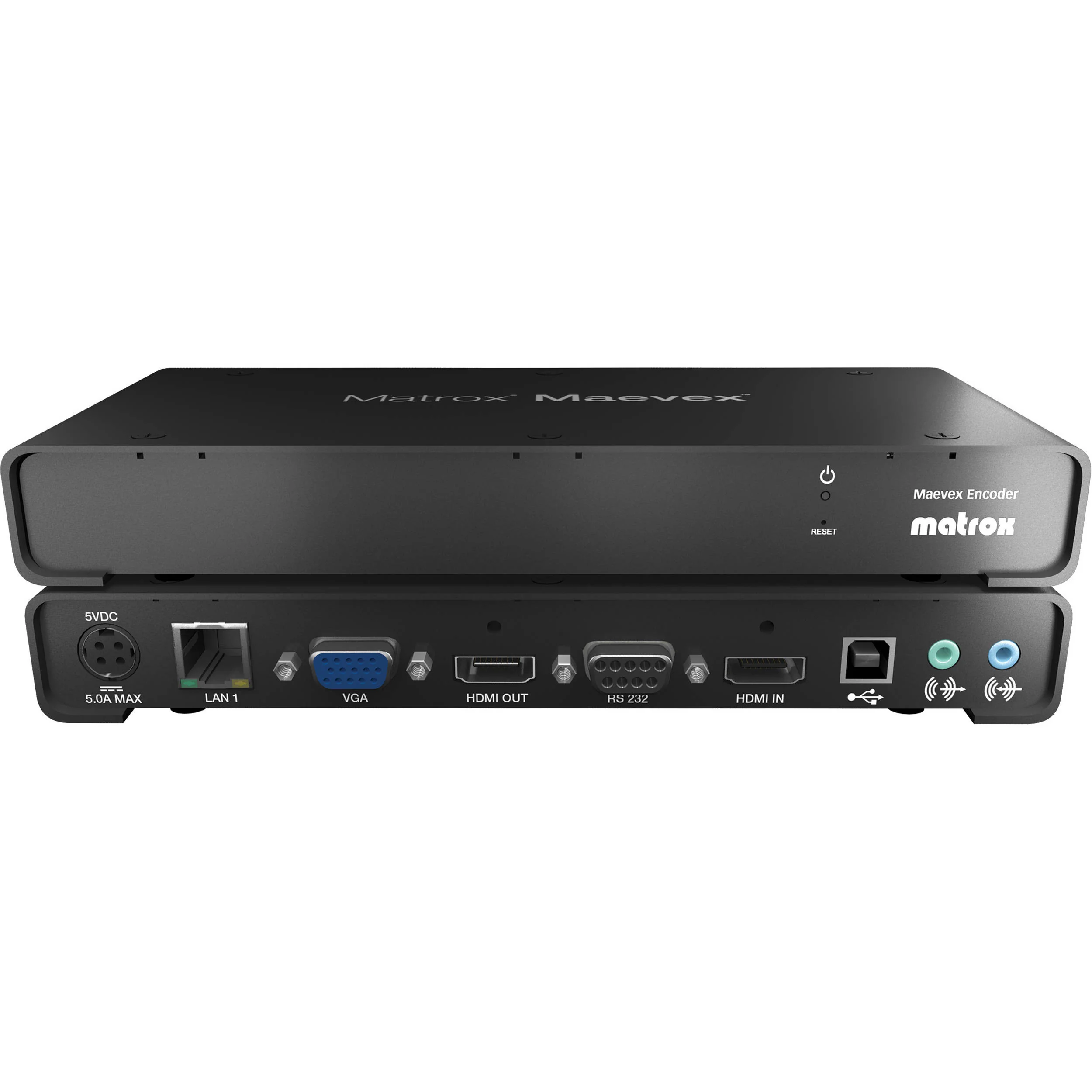

Matrox MVX-E5150F Maevex H.264 Encoder

Matrox MVX-E5150F Maevex H.264 Encoder

The Matrox MVX-E5150F Maevex H.264 Encoder allows you to encode video and audio over a standard IP network at a user-defined bit-rate. It records high-quality video and audio and uses the H.264 video compression standard. The encoder can record to Maevex decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive.

Matrox's PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network. The software also allows the administrators to define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs.

Encoding
  • Extend/record up to 1080p and 1920x1200 video and audio
  • H.264 compression for high-quality, low-bandwidth AV-over-IP
  • Support for wide-screen and standard aspect ratios and many resolutions
  • Scale streams before distribution for lower bandwidth consumption
  • HDMI or analog audio support
  • Open encoding allows for third-party software decode (e.g. VLC)
Recording
  • Record up to 1080p/1920x1200 to NAS or shared network drive
  • Control frequency and duration of recording
  • Schedule the start time and date of recording sessions
  • Recorded user-defined file name includes timestamp for easy file management
Network Management
  • Operates on standard 100/1000 Mb Ethernet networks
  • Auto-detect and discover Maevex units on subnet (DHCP server required)
  • Full/half-duplex mode and static IP address support
  • CBR, VBR support
  • Network bit-rate control (100 Kbps - 25 Mbps)
PowerStream Control Software
  • Remotely manage Maevex network from different locations
  • Conveniently access IP address, bit rate, and other information
  • Fine-tune encoding parameters and adjust bit rates
  • Scale and crop content to fit different outputs
Maevex API
  • Integrate Maevex features in existing or new control software
  • Based on easy-to-use .NET programming language
  • Provided to select developers (determined on case-by-case basis; NDA may be required)�
Other Features
  • Supports daisy-chaining and extends network via integrated network switch
  • Failure resilience � power, network, and device auto-recovery features
  • Full duplex RS-232 control
  • Local real-time pass-through and confidence preview on encoder
  • PowerStream-controlled user access from secured PC
  • Detailed LED indicators for easy and effective troubleshooting
  • Customizable bitmap for encoder/decoder splash screen
Applications
  • Healthcare
  • Automation/production
  • Education and training
  • Security
  • Banking
  • Transportation
  • Dynamic digital signage
UPC: 790750243948
In the Box
Matrox MVX-E5150F Maevex H.264 Encoder
  • 6' Cat 5e Ethernet Cable
  • DVI Male to HDMI Female Adapter
  • 6' 3.5mm Analog Stereo Audio Cable, Male to Male
  • Power Supply and Power Cord
  • Limited 2-Year Warranty
Video Input HDMI with digital L-PCM audio
DVI via DVI-to-HDMI adapter
Supports resolutions up to 1920 x 1080
Audio Line In 3.5 mm analog stereo audio
Audio Line Out 3.5 mm analog stereo audio
Network Connection RJ45
Video Encoding Single-Channel HD: Up to 1920 x 1080p (60 fps)
Compression Standard: H.264/MPEG4 Part 10 (AVC)
Profiles: Baseline, main, high
Levels: Up to 4.2
Bit Rates: 100 kbps to 25 Mbps
Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) size
Audio Encoding Compression Standard: MPEG4 AAC-LC
Channels: 2 channel (stereo), HDMI with digital L-PCM audio
Analog Sample Frequency: 32, 44.1, and 48 kHz
Bit Rates: 96, 128, 192, and 256 kbps
Networking Interface 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
Command & Control Protocols: HTTP/HTTPS
IPV4 Support
Unicast, Multicast, and Multi Unicast
DHCP (Default) / Fixed IP Address support
Cat 5-or-higher network cable support
CMS Central Command and Control Application:
Resides on any PC network node
Maevex network configuration & control
Encoding and decoding control and manipulation
Frame rate and resolution control
Password protection
Failsafe over the network FW updates
Recording (up to 1080p60)
Full Duplex RS-232 (point to point)
Full-feature API available
OS Support Windows 8 & 8.1 (32-bit, 64-bit)
Windows Server 2012 & 2012 R2 (64-bit)
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2 (64-bit)

Microsoft .NET 4.5 is required for all
Power Supply 100 to 240 VAC In, 5 VDC Out, 15 W
DIN4 locking power connector
Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL
Regulatory CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
Operating Temperature 32 to 113&degF (0 to 45&degC)
Non-Operating Temperature -40 to 131&degF (-40 to 55&degC)
Operating Humidity 20 to 80% (non-condensing)
Non-Operating Humidity 5 to 95% (non-condensing)
Mean Time Between Failures (MTBF) 135.05 years @ 104&degF (40&degC) (excluding power supply)
External Power Supply: 11.45 years @ 77&degF (25&degC), full load
Fanless (no moving parts)
Dimensions 8.5 x 1.0 x 4.0" (21.6 x 2.6 x 10.2 cm)
Weight 0.83 lb (0.38 kg) (excluding external power supply and power cords)
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 14.016 x 5.669 x 2.913"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
