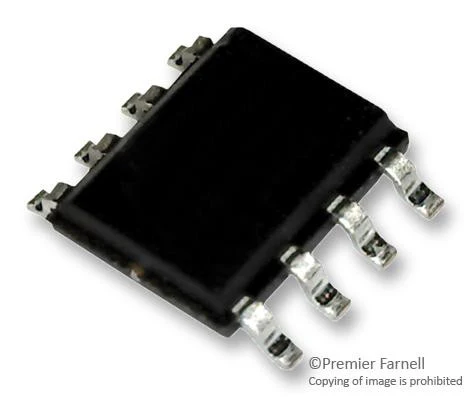

MICROCHIP 24LC32A/SN EEPROM, I2C, 32 Kbit, 4K x 8bit, 400 kHz, SOIC, 8 Pins
The 24LC32A/SN is a 32kB IĀ²C serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1mA and 1mA, respectively. It has been developed for advanced, low-power applications such as personal communications or data acquisition. The 24XX32A also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 256kB address space.
- Single supply with operation down to 2.5V
- Low-power CMOS technology
- 2-wire serial interface (IĀ²Cļæ½ compatible)
- Schmitt trigger inputs for noise suppression
- Output slope control to eliminate ground bounce
- 100 and 400kHz Clock compatibility
- Page write time 5ms maximum
- Self-timed erase/write cycle
- 32-byte page write buffer
- Hardware write-protect
- ESD protection >4000V
- More than 1million erase/write cycles
- Data retention >200 years
Applications
Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics, Automotive
Product details
| Operating Temperature Min | 0Ā°C |
| Operating Temperature Max | 70Ā°C |
| Clock Frequency | 400kHz |
| No. of Pins | 8Pins |
| Memory Size | 32Kbit |
| Product Range | 32Kbit Serial I2C EEPROMs |
| Memory Case Style | SOIC |
| Supply Voltage Min | 2.5V |
| IC Interface Type | I2C |
| EEPROM Memory Configuration | 4K x 8bit |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | 24LC32A/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Product Change Notice EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
