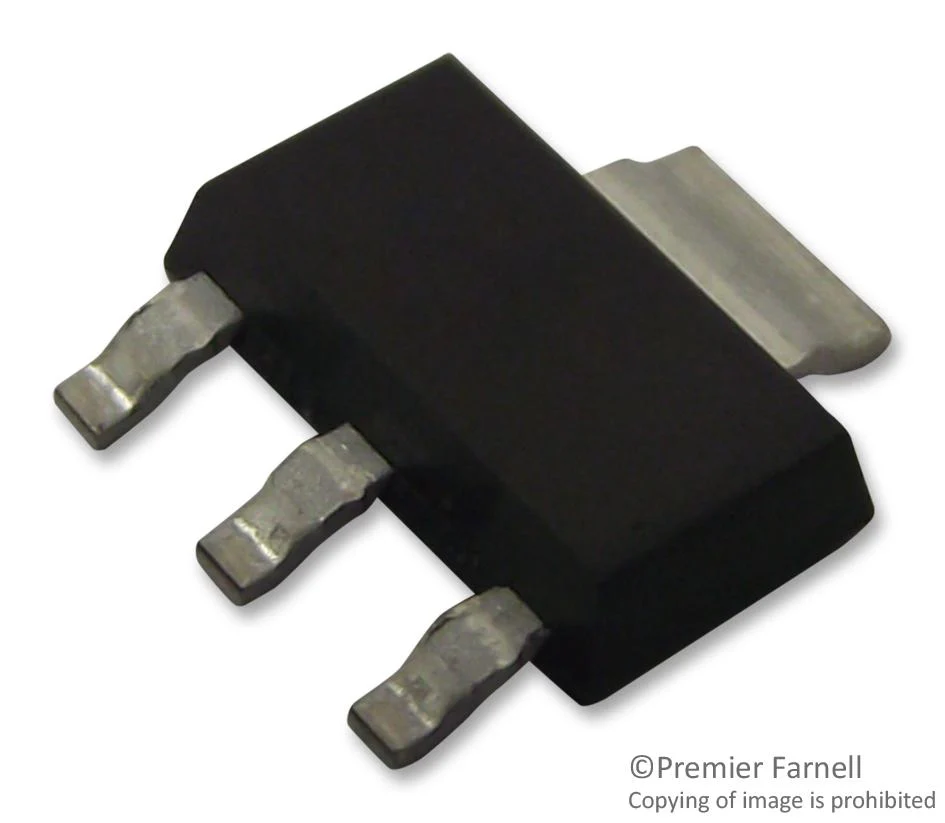

Microchip MCP1703T-5002E/DB Fixed LDO Voltage Regulator 2.7V to 16V 330mV Drop 5V/250mA Out SOT-223-3
Microchip MCP1703T-5002E/DB Fixed LDO Voltage Regulator 2.7V to 16V 330mV Drop 5V/250mA Out SOT-223-3
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.7V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 5V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 250mA |
| Dropout Voltage Vdo | 330mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40Ā°C |
| Operating Temperature Max | 125Ā°C |
| Product Range | 5V 250mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP1703T-5002E/DB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $1.35
-70%$1.35
$0.41Microchip MCP1703T-5002E/DB Fixed LDO Voltage Regulator 2.7V to 16V 330mV Drop 5V/250mA Out SOT-223-3
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.7V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 5V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 250mA |
| Dropout Voltage Vdo | 330mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40Ā°C |
| Operating Temperature Max | 125Ā°C |
| Product Range | 5V 250mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP1703T-5002E/DB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
