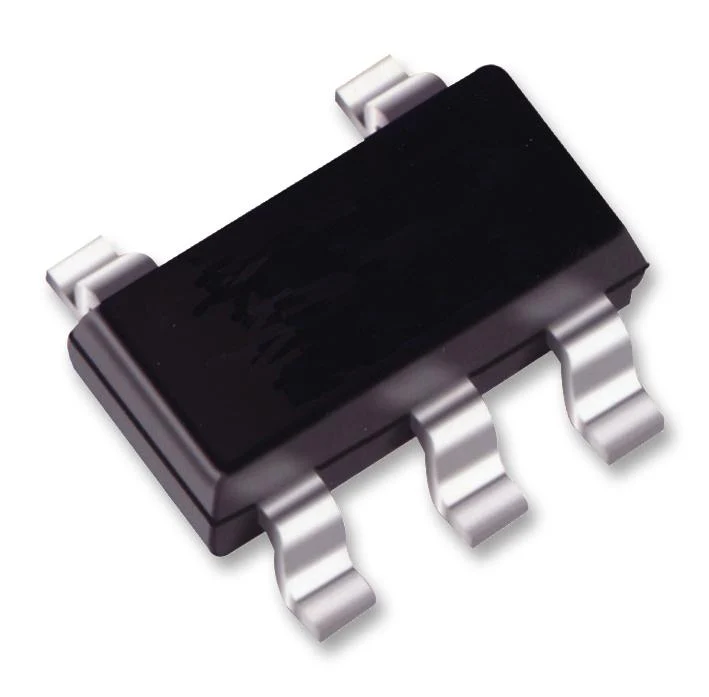

Microchip MIC5235-5.0YM5-TR MIC5235-5.0YM5-TR Fixed LDO Voltage Regulator 2.3V to 24V 310mV Dropout 5Vout 150mAout SOT-23-5

The MIC5235-5.0YM5 TR is an ultra-low quiescent current 150mA µCap LDO Regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the regulator ideal for USB and portable electronics applications, using 1-cell, 2-cell or 3-cell Li-Ion battery inputs. A µCap LDO design, the regulator is stable with either ceramic or tantalum output capacitors. It only requires a 2.2µF capacitor for stability. It features an enable input, thermal shutdown, current limit, reverse battery protection and reverse leakage protection.

• µCap - Stable with ceramic or tantalum capacitors
• Excellent line and load regulation specifications
• Zero off-mode current
• Reverse battery protection
• Reverse leakage protection
• Thermal shutdown and current limit protection

Applications

Power Management, Portable Devices, Consumer Electronics, Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MIC5235-5.0YM5-TR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
