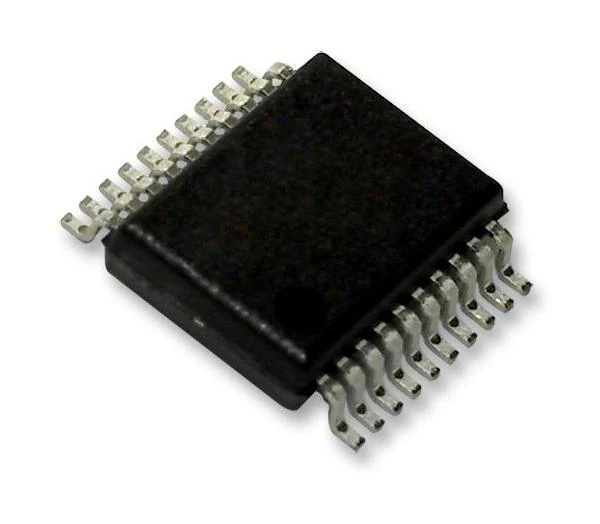

Microchip PIC16F1827-I/SS 8 Bit MCU Flash PIC16 Family PIC16F18XX Series Microcontrollers 32 MHz 7 KB 20 Pins Ssop

The PIC16F1827-I/SS is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 384bytes of data memory size, 16 general-purpose I/O pins, two comparators, 12-channel 10-bit analog-to-digital (A/D) converter and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 5.5V.

• 49 (14-bit wide) easy instructions to learn
• 16 level hardware stack
• 2 (16-bit) file select registers
• Hardware interrupt handling with content save
• 32kHz to 32MHz internal oscillator
• 256bytes of EEPROM data memory
• Brown-out reset (BOR)
• Low voltage detection
• Power on reset (POR)
• Internal voltage reference (Bandgap)
• Four 8-bit digital timers
• One 16-bit digital timer
• 2x Capture/Compare/PWM (CCP)
• 2x Enhanced Capture/Compare/PWM (ECCP)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F1827-I/SS
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
