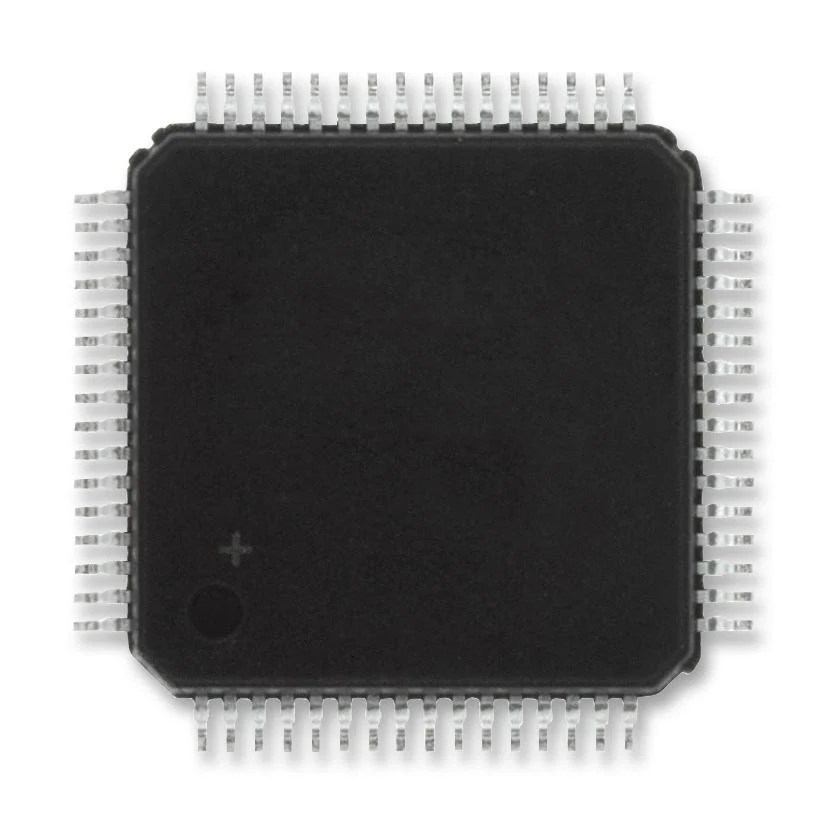

Microchip PIC18F65K22-I/PT 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 32 KB Pins Tqfp
Microchip PIC18F65K22-I/PT 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 32 KB Pins Tqfp
The PIC18F65K22-I/PT is a 32kB high-performance enhanced Flash Microcontroller Unit (MCU) with 12-bit A/D and nanoWatt XLP technology. This microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 8 total CCP/ECCP channels, 8 total timers and 53 general purpose I/O. The consistent pinout scheme, used throughout the entire family, also aids in migrating to the next larger device.
- Low-power - Ultra low-power wake-up, low input leakage currents and fast wake-up
- CPU - Up to 16 MIPS performance and 8 x 8 single-cycle hardware multiplier
- Peripherals - Charge time measurement unit for mTouch sensing and A/D converter
- On-chip 3.3V regulator
- Data EEPROM of 1024 bytes
- 10000 Erase/write cycle flash program
- 40-year Minimum flash retention
- Self-programmable under software control
- Priority levels for interrupts
- Extended watchdog timer (WDT) - Programmable period from 4ms to 4194s (about 70 minutes)
- In-Circuit Serial Programming� (ICSP�) via two pins
- In-Circuit Debug via two pins
Automotive, Industrial, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC18F65K22-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
