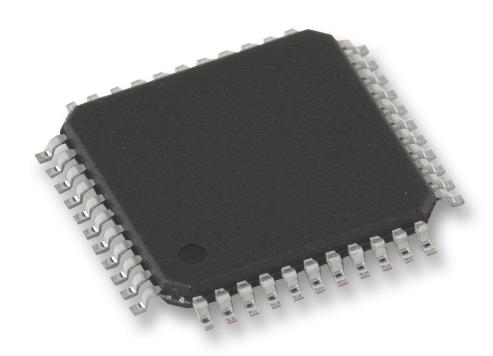

MICROCHIP PIC24FJ128GA204-I/PT 16 Bit Microcontroller, General Purpose, PIC24 Family PIC24FJ GA Series Microcontrollers, PIC24
MICROCHIP PIC24FJ128GA204-I/PT 16 Bit Microcontroller, General Purpose, PIC24 Family PIC24FJ GA Series Microcontrollers, PIC24
The PIC24FJ128GA204-I/PT is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PICĀ®(RISC) architecture with up to 16 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 128kB of addressable program memory size, 8192bytes of data memory size, 34 general-purpose I/O pins and 12-channel 10/12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 2 to 3.6V.
- XLP technology for sleep current at low as 20nA
- Brown-out reset (BOR)
- Low voltage detection (LVD)
- Power on reset (POR)
- Watch dog timer (WDT)
- Hardware RTCC
- 6-channel DMA
- nanoWatt XLP technology
- Three comparators
- Charge time measurement unit (CTMU)
- Peripheral pin select (PPS)
- 6x capture/compare/PWM (CCP)
- Hardware encryption
- Five 16-bit timers
- Two 32-bit timers
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC24 Family PIC24FJ GA Series Microcontrollers |
| Device Core: PIC24 |
| Data Bus Width: 16 bit |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 128KB |
| No. of Pins: 44Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 35I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 8KB |
| ADC Channels: 13Channels |
| ADC Resolution: 10Bit, 12Bit |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40Ā°C |
| Operating Temperature Max: 85Ā°C |
| IC Mounting: Surface Mount |
| MCU Series: PIC24FJ GA |
| MCU Family: PIC24 |
| Qualification: - |
| MSL: - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC24FJ128GA204-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
