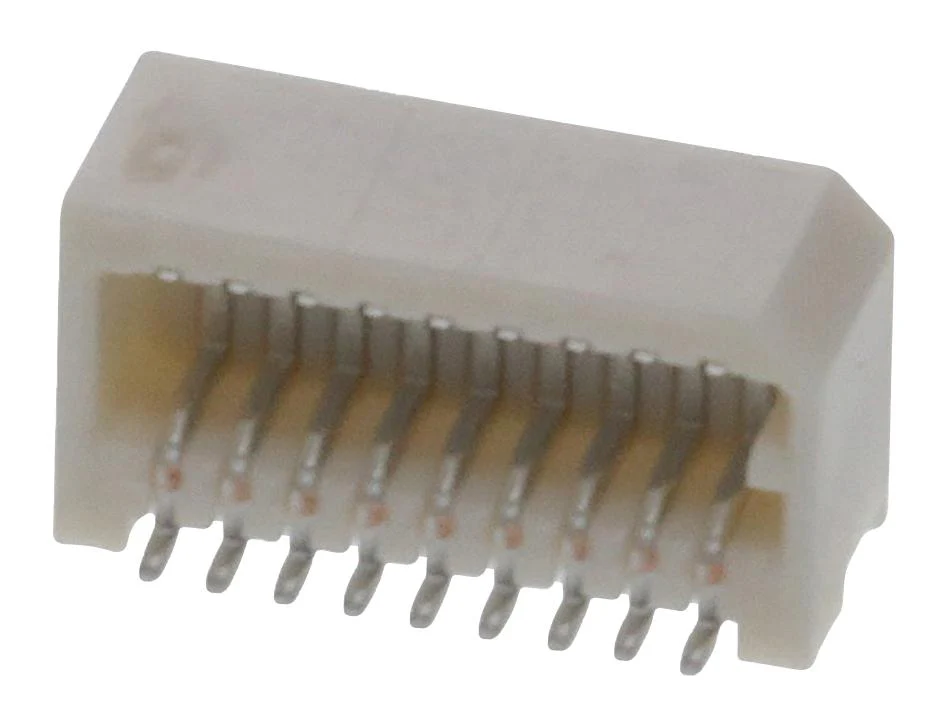

Molex 53309-1870 53309-1870 Pin Header Board-to-Board 0.8 mm 2 Rows 18 Contacts Surface Mount Right Angle
Molex 53309-1870 53309-1870 Pin Header Board-to-Board 0.8 mm 2 Rows 18 Contacts Surface Mount Right Angle
Product details
| Connector Systems | Board-to-Board |
| Pitch Spacing | 0.8mm |
| No. of Rows | 2Rows |
| No. of Contacts | 18Contacts |
| Contact Termination Type | Surface Mount Right Angle |
| Product Range | - |
| Connector Shroud | - |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin Plated Contacts |
Other details
| Brand | MOLEX |
| Part Number | 53309-1870 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
