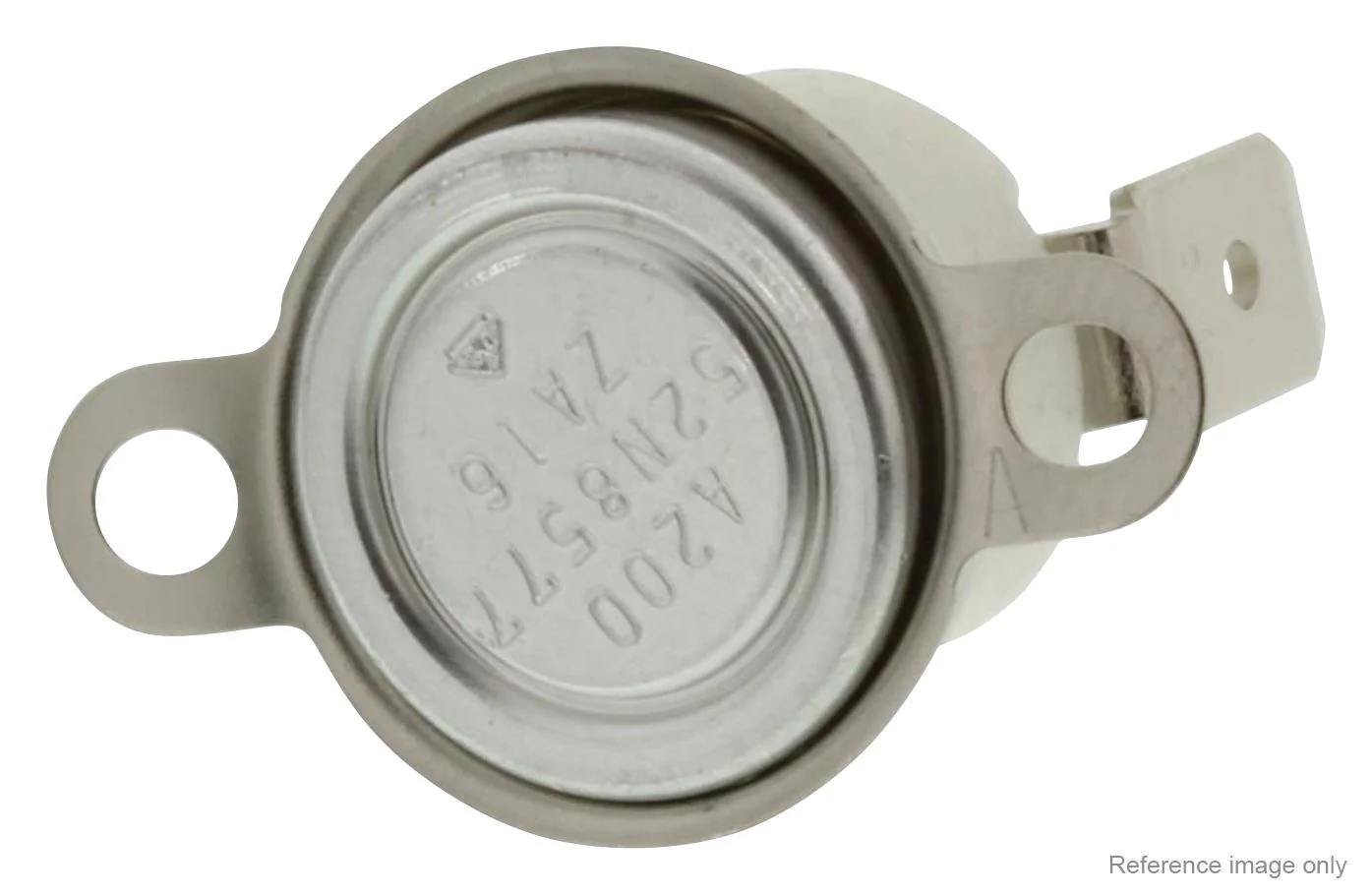

MULTICOMP PRO MP-11-25/40/E111B14H22K Thermostat Switch, Snap Action, 40 °C, Normally Open, 10A at 250V, Flange Mount
MULTICOMP PRO MP-11-25/40/E111B14H22K Thermostat Switch, Snap Action, 40 °C, Normally Open, 10A at 250V, Flange Mount
Product Overview
MP-11-25/40/E111B14H22K is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 40°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 250V at 10A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.
- Automatic reset thermostat
- Housing type, phenolic height 12mm, phenolic housing and shield material
- 85°C (maximum off temperature), 100°C (maximum on temperature)
- 15/16amps rated current
- Terminal selection of 90° angle, nickel-plated brass, 0° angle and nickel-plated brass (6.3x0.8mm)
- Switch type is close on rise (normally open) (N/O)
- Temperature is 40°C ±3°C set, 25°C ±5°C reset
Applications
Temperature Controllers, Industrial, Automation & Process Control, HVAC
Contents
x1 Thermostat switch.
Notes
Secure flange mounting to surfaces.
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP-11-25/40/E111B14H22K |
| Quantity | Each |
| Technical Data Sheet EN |  |
