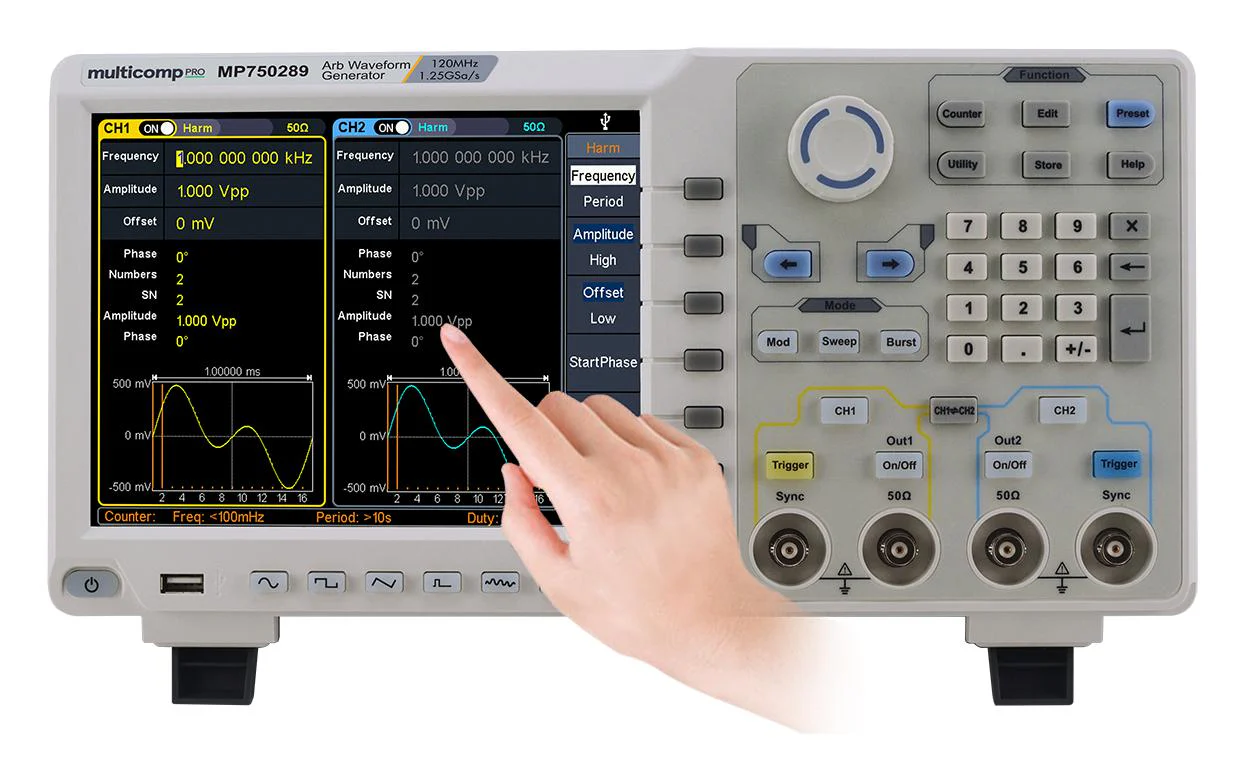

Multicomp PRO MP750289 Waveform Generator 2CH 120MHZ/1.25GSPS

The MP750289 from Multicomp Pro is a 120MHz, 2-channel arbitrary waveform generator, featuring max 1.25GS/s sample rates, 1?Hz frequency resolution, 14-bits vertical resolution and max 1M arbitrary waveform length.

• 8" (800 x 600 pixels) multi-touch screen LCD display
• High-accuracy frequency counter integrated, supporting range of 100 to 200MHz and 7-digit resolution
• Frequency counter function: period, +width, -width, +duty, -duty
• 120MHz max frequency output
• Comprehensive waveform output: 6 basic waveforms and 152 built-in arbitrary waveforms
• Modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep and Burst
• SCPI and LabVIEW supported
• USB host, USB device and LAN communication interfaces
• Dimensions: 340 x 177 x 90mm (WxHxD)
• Device weight: 2.5kg

Contents

Arbitrary function generator, EU & UK mains cords, CD-ROM, Quick-guide, USB cable and Q9 cable.

Product details

Signal Generator Type	Arbitrary, Function
No. of Channels	2 Channel
Product Range	-
Bandwidth	120MHz
Signal Generator Modulation	3FSK, 4FSK, AM, ASK, BPSK, Burst, FM, FSK, OSK, PM, PSK, PWM, Sweep
Manufacturer Warranty	1 Year
Plug Type	EU, UK

Other details

Brand	MULTICOMP PRO
Part Number	MP750289
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
