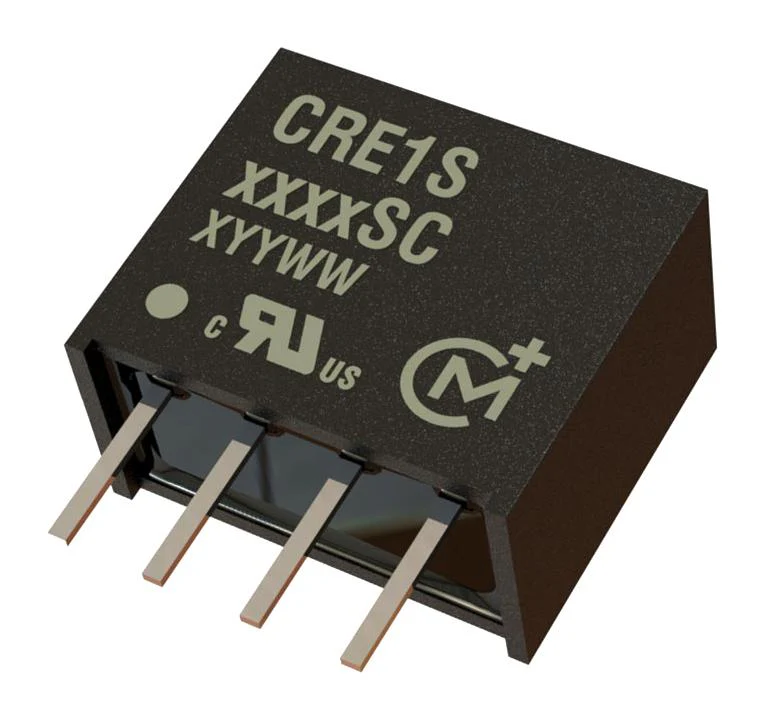

Murata Power Solutions CRE1S0305S3C Isolated Through Hole DC/DC Converter ITE 1:1 1 W Output 5 V 200 mA

The CRE1 series are a 1W DC/DC converter series, in industry standard packages with industry standard pinout. Popular input and output voltages are available. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from -40°C and full 1 watt output at 85°C.

• UL 60950 Recognised
• Single Isolated Output
• 1kVDC or 3kVDC option 'Hi Pot Test'
• Wide Temperature Performance at Full 1W Load -40°C to 85°C
• Industry Standard Pinout
• 3.3V, 5V, 12V & 24V Inputs
• 5V, 12V & 15V Outputs
• Through Hole and Surface Mount option Available

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MURATA POWER SOLUTIONS
Part Number	CRE1S0305S3C
Quantity	Each
Technical Data Sheet EN
