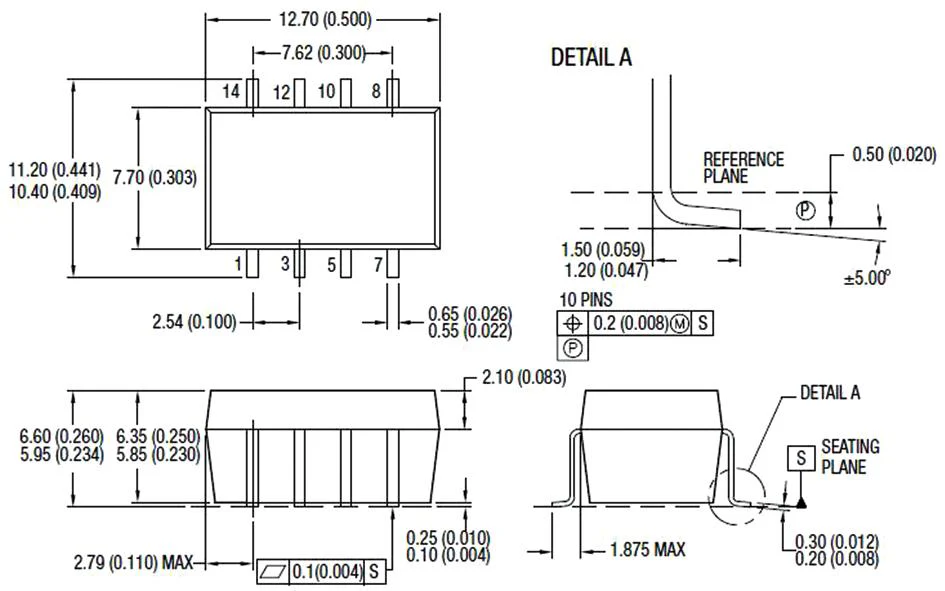

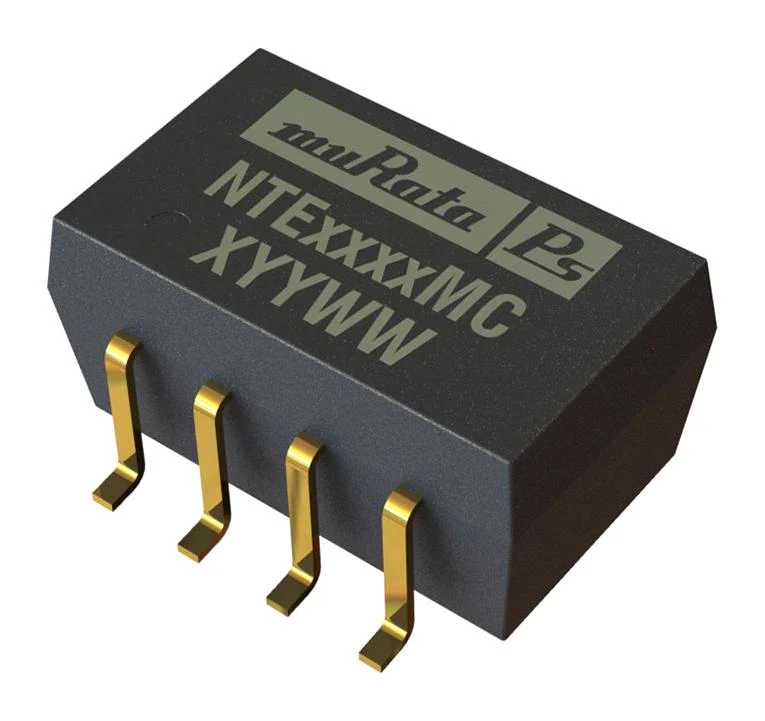

Murata Power Solutions NTE1205MC NTE1205MC Isolated Surface Mount DC/DC Converter Miniature ITE 1:1 1 W Output 5 V 200 mA

The NTE1205MC is a 1-output board-mount isolated DC to DC Converter employ lead frame technology and transfer moulding technique. The co-planarity of the pin positions is based upon IEC 191-6:1990. The NTE series 1W miniature surface mounted DC/DC converter is suitable for all applications where high volume production is envisaged.

• 1kVDC Isolation
• Efficiency up to 78%
• 1.8W/cm³ Power density
• Footprint over pins 1.37cm²
• No heatsink required
• Internal SMD construction
• Toroidal magnetics
• MTTF up to 6.8 million hours
• Multi-layer ceramic capacitors
• -40 to +85°C Wide operating temperature range

Applications

Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MURATA POWER SOLUTIONS
Part Number	NTE1205MC
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
3D Product Image EN
Product Change Notice EN
