MuxLab 12G-SDI Repeater
MuxLab 12G-SDI Repeater Overview

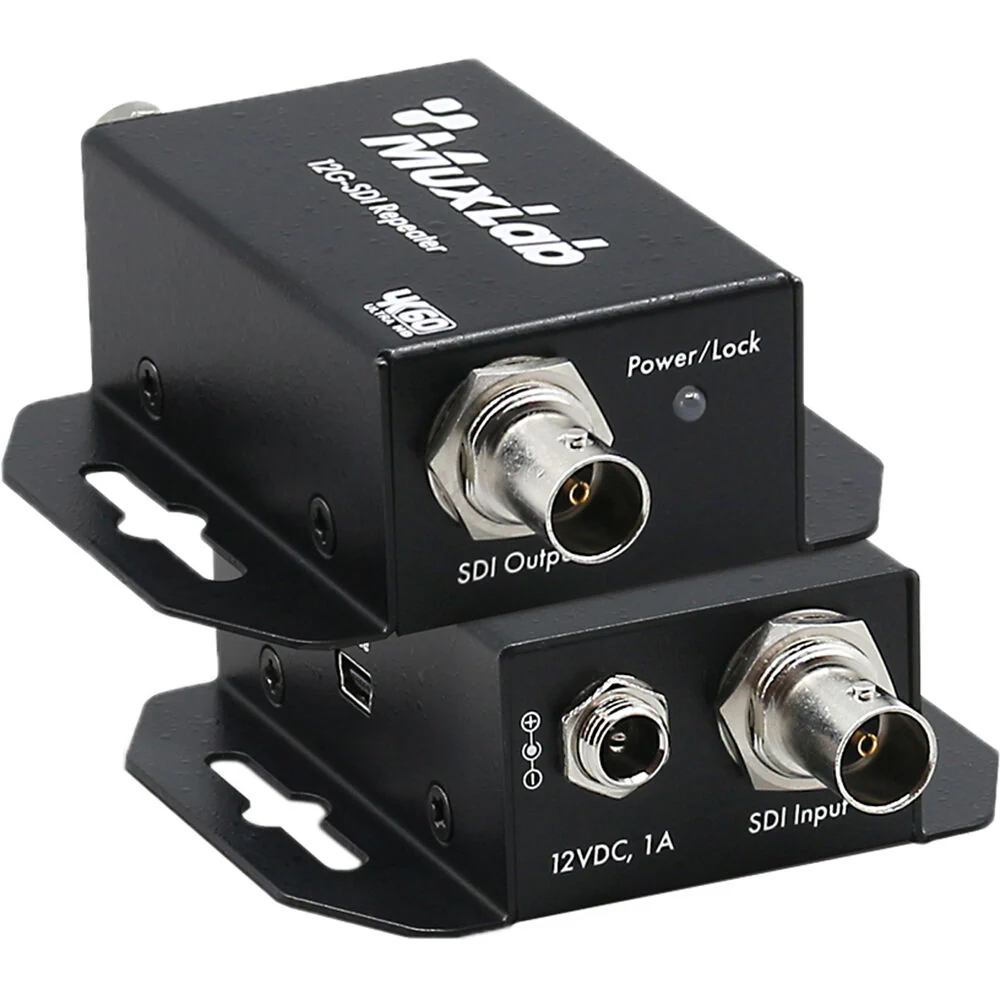

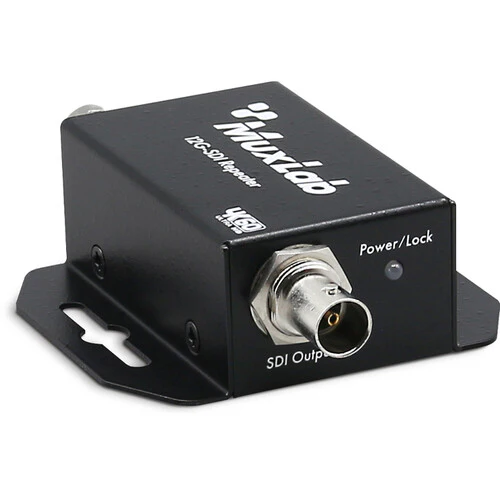

Maintain a strong, high-quality SDI signal over a long distance with this 12G-SDI Repeater from Muxlab. The repeater features a 12G-SDI input and 12G-SDI output, and it features reclocking, amplification, and automatic format detection with very low delay. It can retransmit video with embedded audio up to 328' away.
The unit supports up to DCI 4K60 video with embedded 16-channel, 24-bit audio, and it supports multiple SDI standards including 12G, 6G, 3G, HD, and SD-SDI. Setup is plug-and-play, and it features a USB port for firmware upgrades and software control via a computer.
- Wide support of SDI video signal resolutions
- High-quality 12G-SDI Re-clocking and amplification technology
- Multi-standard support (12G, 6G, 3G, HD, and SD-SDI)
- Auto source video format detection
- Supports 16-channel, 24-bit audio formats
- Easy plug-and-play installation
- Rugged design and integrated brackets for easy mounting
- Video production and broadcasting
- Studio-to-studio and post production
- Outside broadcasting vehicle
- Mobile video and live events
- SDI camcorders
- Medical imaging
Items Included
- MuxLab 12G-SDI Repeater
- Power Supply
- International Plug Adapter Set
- USB to Mini-USB Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab 12G-SDI Repeater Specs
| Inputs |
1x BNC (12G-SDI) Female
|
| Embedded Audio Input |
SDI: 16-Channel
|
| Outputs |
1x BNC (12G-SDI) Female
|
| Other I/O |
1x Micro-USB 2.0 Input
|
| Reclocking |
Yes
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
| Max Transmission Distance |
DCI 4K, UHD 4K, 720p:
328.1' / 100Ā m |
| Video Format |
SDI
DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576i: 50 fps 480i: 60 fps |
| Power I/O |

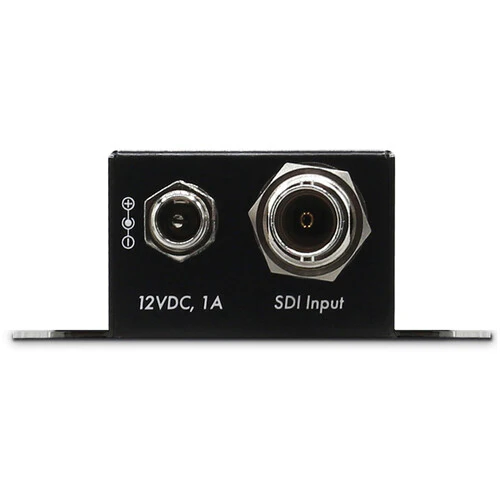

1x Barrel (12 VDC) Input
|
| Operating Temperature |
32 to 104Ā°F / 0 to 40Ā°C
|
| Storage Temperature |
-4 to 140Ā°F / -20 to 60Ā°C
|
| Operating Humidity |
95%
|
| Storage Humidity |
95% (Non-Condensing)
|
| Dimensions |
3.9 x 2.8 x 1" / 100 x 70 x 26Ā mm
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $706.50
-70%$706.50
$211.95More Images
