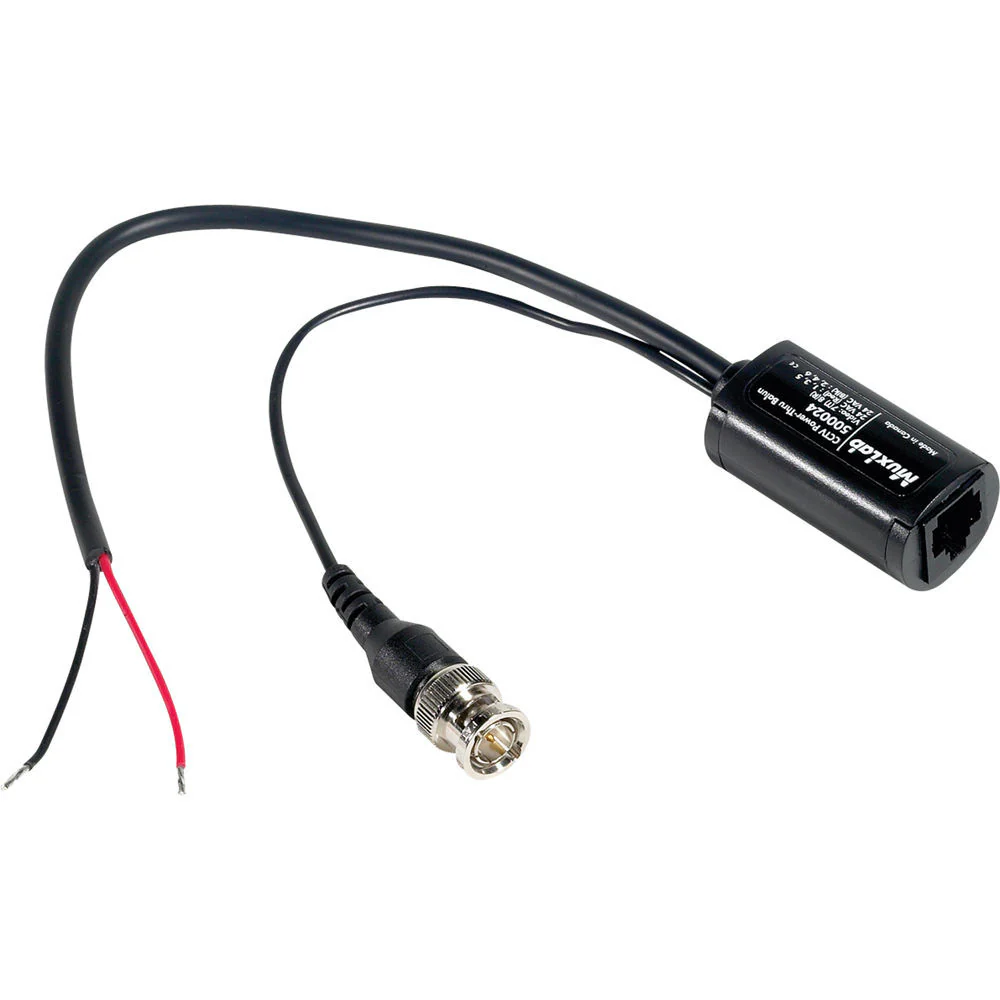

MuxLab 500024 CCTV Power-Thru Balun
HomeStore

MuxLab 500024 CCTV Power-Thru Balun

MuxLab 500024 CCTV Power-Thru Balun

  • Modular RJ-45 Connector
  • Transmits Video/Remote Power via Cat5
  • Color Signals up to 1200' via Cat3
  • Color Signals up to 2200' via Cat5
  • B&W Signals up to 1500' via Cat3
  • B & W Signals up to 2500' via Cat5
  • Switch to Set Port as Power-thru
  • Remote power up to 500' via 3 UTP
  • ABS Fire Retardant Plastic Enclosure
  • NTSC / PAL / SECAM

The MuxLab 500024 CCTV Power-Thru Balun with modular RJ-45 connector transmits video and remote power via one 4-pair Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations .

Ā

When used in conjunction with MuxLab's passive CCTV hub (500130), the modular balun transmits standard composite video and supports transmission of color signals up to 1200' (365m) via Cat3; it can be extended to 2200' (670m) via Cat5. Ā  For b&w signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5.

Ā

Made of ABS fire retardant plastic, the modular balun features port configuration switch to set port as the Power-thru balun that transmits remote power up to 500' (170m) via 3 twisted pair cables at 24VAC/5VA.

Ā

Providing a hassle-free cabling solution, the Power-Thru Balun connects to CCTV security / surveillance equipment that includes cameras, monitors, switchers, sequencers, multiplexers, DVRs, and other CCTV equipment. The balun can also be used with other composite baseband video equipments.

Modular RJ-45 connector
Transmits video and remote power via one 4-pair Cat5 UTP cable
Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
Transmits remote power up to 500' via 3 twisted pair cables at 24VAC/5VA
Made of ABS fire retardant plastic
Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699000243
Environment Baseband video; NTSC, PAL, SECAM
Devices Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs) and other CCTV equipment
Transmission Transparent to the user
Video
Bandwidth DC to 8 MHz
Impedance Input: 75 ohms (BNC); Output: 100 ohms (RJ45)
Maximum Input 1.1Vp-p
Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection Greater than 40 dB @ 8 MHz
Maximum Distance Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)

Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)



B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m)
Remote Power
Wiring Remote low voltage power supported via two (3) twisted pairs. A Class II power supply is recommended
Maximum Distance (at 24VAC via 3 twisted pairs)

5 VA: 518' (170m)
10 VA: 259' (85m)
20 VA: 130' (43m)
30 VA: 86' (28m)

Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC.
Maximum Input Voltage 50 Volts (AC RMS/DC)
Maximum Current 4.5A (AC RMS/DC)
Physical
Cable Requirements UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz

BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end
Connectors Video: BNC-male 8" (203mm) mini-coax lead Power: 2-wire 18AWG lead
Combined signals: RJ45 (500024); Screw terminals (500029)
Temperature Operating: 32 - 131Ā°F (0 - 55Ā°C)
Storage: -4 ~ +185Ā°F (-20 ~ +85Ā°C)
Humidity: up to 95%
Enclosure ABS fire retardant plastic
Dimensions 1.875 x 1" (4.7 x 2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power and control leads
Weight 1.95 oz (55g)
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 5.2 x 3.1 x 0.9"
In the Box
MuxLab 500024 CCTV Power-Thru Balun
  • Lifetime Warranty
All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$16.34
