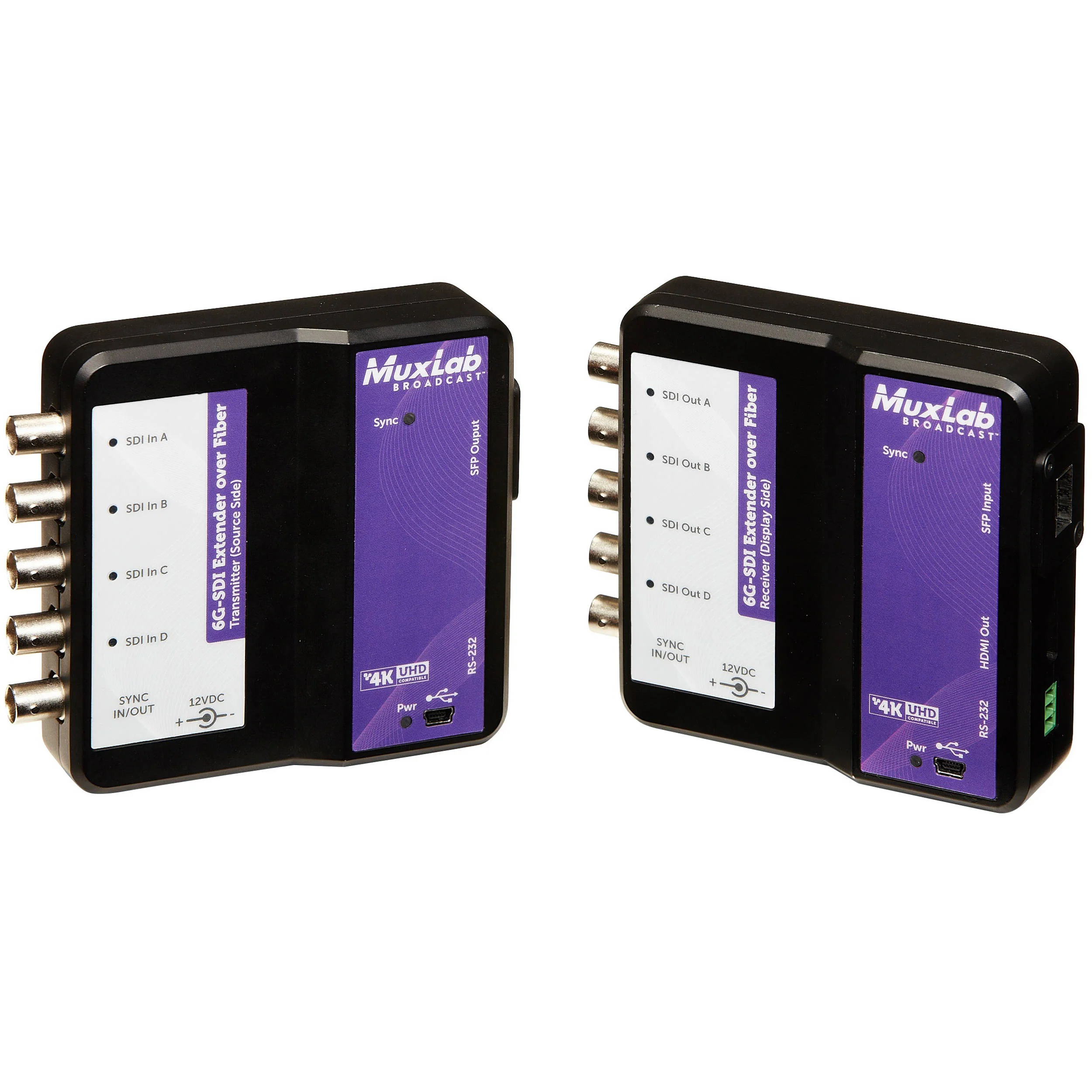

MuxLab 6G-SDI over Multi-Mode Fiber Extender Kit (1300')
The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions. This product allows for versatile combinations of sources, such as one 6G-SDI source, two 3G-SDI sources, or four HDSDI sources.
- Key Features
-
- Accepts up to four HD-SDI feeds, two 3G-SDI feeds or one 6G-SDI feed
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for diagnostics and field upgradable firmware
- Standard SFP+ module for optical fiber interface, or other media
- Heavy duty aluminum casing
- Supports RS232 pass-through
| General | |
|---|---|
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Localization | United Kingdom, United States, Europe |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Max Transfer Distance | 1310 ft |
| Features | 4K resolution support |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 6G-SDI - BNC x 5 1 x RS-232 |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Device | External power adapter |
| Installed Qty | 2 |
| Dimensions & Weight | |
|---|---|
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 1 in |
MuxLab 6G-SDI over Multi-Mode Fiber Extender Kit (1300')
The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions. This product allows for versatile combinations of sources, such as one 6G-SDI source, two 3G-SDI sources, or four HDSDI sources.
- Key Features
-
- Accepts up to four HD-SDI feeds, two 3G-SDI feeds or one 6G-SDI feed
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for diagnostics and field upgradable firmware
- Standard SFP+ module for optical fiber interface, or other media
- Heavy duty aluminum casing
- Supports RS232 pass-through
| General | |
|---|---|
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Localization | United Kingdom, United States, Europe |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Max Transfer Distance | 1310 ft |
| Features | 4K resolution support |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 6G-SDI - BNC x 5 1 x RS-232 |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Device | External power adapter |
| Installed Qty | 2 |
| Dimensions & Weight | |
|---|---|
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 1 in |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions. This product allows for versatile combinations of sources, such as one 6G-SDI source, two 3G-SDI sources, or four HDSDI sources.
- Key Features
-
- Accepts up to four HD-SDI feeds, two 3G-SDI feeds or one 6G-SDI feed
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for diagnostics and field upgradable firmware
- Standard SFP+ module for optical fiber interface, or other media
- Heavy duty aluminum casing
- Supports RS232 pass-through
| General | |
|---|---|
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Localization | United Kingdom, United States, Europe |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Max Transfer Distance | 1310 ft |
| Features | 4K resolution support |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 6G-SDI - BNC x 5 1 x RS-232 |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Device | External power adapter |
| Installed Qty | 2 |
| Dimensions & Weight | |
|---|---|
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 1 in |
