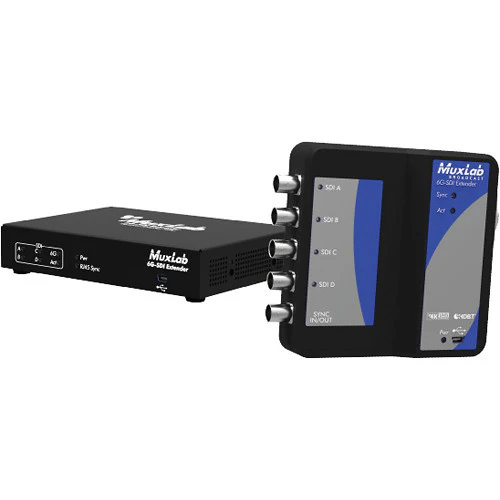

MuxLab Broadcast 6G-SDI 4K Extender over UTP (Black)
The black MuxLab Broadcast 6G-SDI 4K Extender allows extending Full HD and 4K video signals from sources (including cameras) with SDI outputs up to 330' using a CAT5e/6 cable. Featuring automatic SDI link recognition, the transmitter automatically enables long-reach mode (up to 500') when HD signal is detected. The transmitter features four BNC SDI inputs that accept a single 6G (up to 4K) using one coaxial cable, dual 3G (up to Full HD) using two coaxial cables, or quad HD inputs using four coaxial cables (not included). The transmitter connects to the receiver using a CAT5e/6 cable. The receiver, featuring 4 SDI outputs, needs to be powered using the included 48 VDC power supply. The transmitter is powered by the receiver through the CAT5e/6 cable. The Broadcast 6G-SDI 4K Extender is suitable for cinema recording, movie making, studio production, news coverage, and live reporting.
- Extends 3G/6G signal up to 330' and HD signal up to 500' over UTP
- Supports a single 6G (up to 4K), dual 3G (up to Full HD), or quad HD inputs via coaxial cables (not included)
- Maximum Resolution Supported: 4096 x 2160 @ 24/25 fps, 3840 x 2160 @ 30 fps
- Supported Modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- Supports all 6G channel configurations (1/2/4)
- Automatic SDI Link recognition and activation of long reach mode (up to 492') when HD signal is detected
- USB interface for field upgradable firmware and diagnostics
- The transmitter is powered by the receiver via PoE
- etherCON connectivity and aluminum enclosure for ruggedized use
- Multiple 1/4"-20 threads for mounting the transmitter to a camera or other equipment
- Black transmitter with Electrophoretic coating
- Black receiver with enamel coating
- Suitable for cinema recording, movie making, studio production, news coverage, and live reporting
- 48 VDC Wall-Mount Power Supply
- Blades for Wall-Mount Power Supply
- Limited 2-Year Warranty
| Environment | 6G-SDI digital signal transmission |
| Control | Serial console emulation with USB interface |
| Power | 48 V external power supply with US, UK, and Euro blades |
| Connectivity | Transmitter: Front Side: 4 x BNC SDI input connectors (0.8 Vpp, 75 ?) 1 x BNC sync output connector Rear Side: 1x RJ45 etherCON connector (compatible with NE8MC system) Top Side: Mini USB for firmware updates (and control & status LEDs) Receiver: Front Side: Mini USB for firmware updates (and control & status LEDs) Rear Side: 1 x RJ45/UTP connector 4 x BNC SDI output connectors (0.8 Vpp, 75 ?) 1 x BNC sync input connector 1 x standard 0.1" (2.1 mm) power connector |
| Compliance | FCC, CE, RoHS |
| Enclosure | Metal |
| Dimensions | Transmitter: 4.3 x 4.3 x 1.3" (11.0 x 11.0 x 3.2 cm) Receiver: 5.8 x 4.1 x 1.0" (14.6 x 10.5 x 2.6 cm) Power Connector: 0.2 x 0.1" (5.5 x 2.1 mm) |
| Weight | Transmitter: 0.76 lb (0.34 kg) Receiver: 0.60 lb (0.27 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 12.205 x 7.087 x 4.252" |
