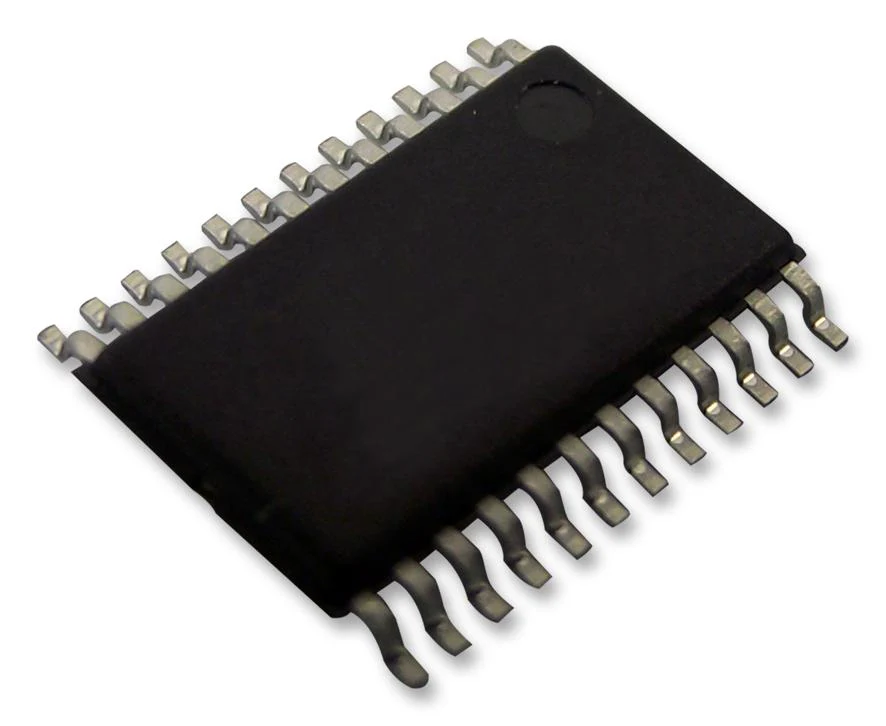

Nexperia 74LVC8T245PW118 Transceiver 74LVC8T245 1.2 V to 5.5 TSSOP-24
The 74LVC8T245PW,118 is a 8-bit dual supply Translating Transceiver with 3-state outputs that enable bi-directional level translation. It features two data input-output ports (pins An and Bn), a direction control input (DIR), an output enable input (OE) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2 and 5.5V making the device suitable for translating between any of the low voltage nodes. Pins An, OE and DIR are referenced to VCC(A) and pins Bn are referenced to VCC(B). A high on DIR allows transmission from An to Bn and a low on DIR allows transmission from Bn to An. The output enable input (OE) can be used to disable the outputs so the buses are effectively isolated.
- Suspend mode
- Latch-up performance exceeds 100mA per JESD 78B Class-II
- Low power consumption - 30ĆĀµA maximum ICC
- IOFF circuitry provides partial power-down mode operation
Communications & Networking, Signal Processing
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NEXPERIA |
| Part Number | 74LVC8T245PW,118 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
