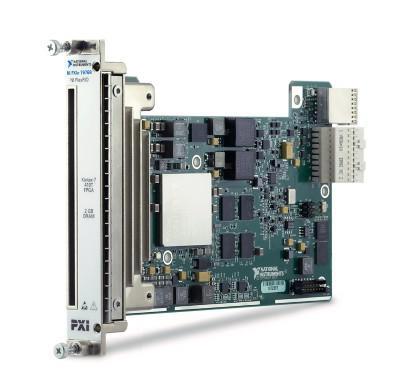

NI 783625-01 FPGA Module, FlexRIO, PXIe-7976, Kintex-7 K410T, 28620 Kbit, 63550 Logic Blocks, 0.97V to 1.03V
NI 783625-01 FPGA Module, FlexRIO, PXIe-7976, Kintex-7 K410T, 28620 Kbit, 63550 Logic Blocks, 0.97V to 1.03V
The PXIe-7976 provides flexible, customizable I/O for LabVIEW FPGA. It includes 132 single-ended I/O lines configurable as 66 differential pairs. You can pair the PXIe-7976 with FlexRIO adapter modules that offer high-performance analogue and digital I/O. Together, the two modules create a reconfigurable instrument that you can program with LabVIEW FPGA software. The PXIe-7976 supports peer-to-peer streaming, which directly transfers data among multiple FPGA modules or select PXI Express modules without sending data to the host processor. With this feature, you can add FPGA capabilities to high-performance NI digitizers with NIST-traceable calibration or expand your FPGA algorithms across multiple FPGAs for computationally demanding applications.
Product details
| FPGA Family: Kintex-7 K410T |
| Total RAM Bits: 28620Kbit |
| Operating Frequency Max: - |
| Bus Connector Type: PXIe |
| No. of Logic Blocks: 63550 |
| No. of Macrocells: 406720Macrocells |
| For Use With: NI FlexRIO Systems |
| Product Range: PXIe-7976 |
| Core Supply Voltage Min: 970mV |
| Core Supply Voltage Max: 1.03V |
Other details
| Brand | NI |
| Part Number | 783625-01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
