NXP FRDM-RW612 Development Board, RW612ET, RW61x Family, ARM, Cortex-M33, 32bit, Quick Start Guide, USB Cable
NXP FRDM-RW612 Development Board, RW612ET, RW61x Family, ARM, Cortex-M33, 32bit, Quick Start Guide, USB Cable
Product Overview

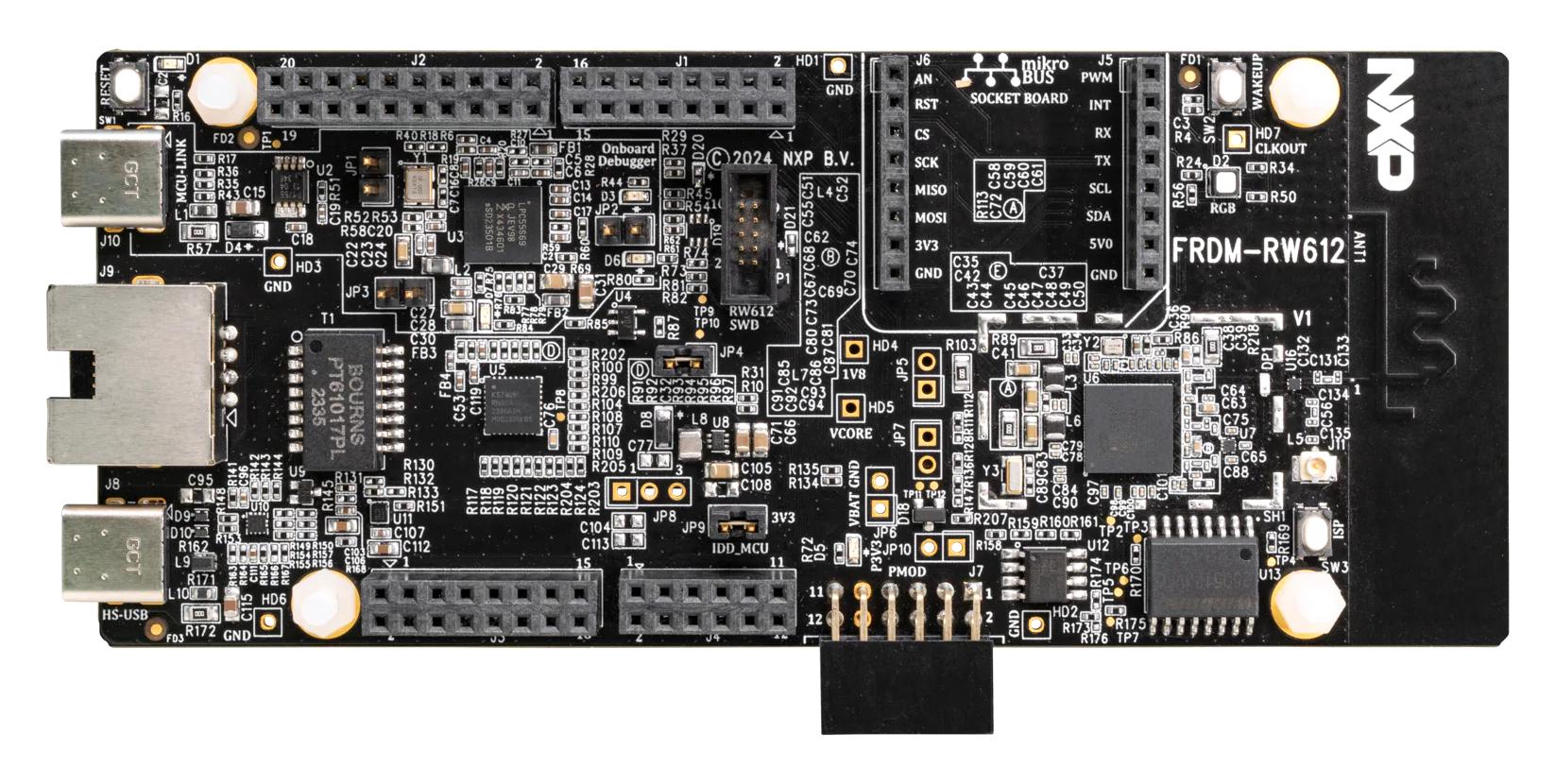

FRDM-RW612 is a FRDM development board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-radio wireless MCU. It offers easy access to the MCU�s I/Os and peripherals, integrated open-standard serial interfaces, external flash memory and on-board MCU-Link debugger. Typical applications include Industrial (air conditioning (AC), electricity meter, EV supply equipment (EVSE)), Smart city (Smart Lock), Smart home (home control panel, home security and surveillance, major home appliances), Factory Automation (Industrial HMI, Vital Signs Monitors) applications.
- RW612 Arm� Cortex�-M33 core @260MHz with optimized performance efficiency, 1.2 MB on-chip SRAM MCU
- Winbond QSPI flash (512Mbit): W25Q512JV and AP Memory QSPI pSRAM (64 Mbit): APS6404L-SQN-SN
- Connectivity: SPI/I2C/UART connector (mikroBUS, Pmod�), Ethernet Phy and connector
- Connectivity: HS USB Type-C connectors, dual-band, 1x1 Wi-Fi 6 radio with 20MHz channel bandwidth
- Connectivity: Bluetooth LE radio and 802.15.4 radio supporting Zigbee and Thread
- Debug: on-board MCU-Link debugger with CMSIS-DAP and JTAG/SWD connector
- P3T1755 I3C temperature sensor
- Arduino® Header (with FRDM expansion rows), FRDM Header, Pmod� and mikroBUS� expansion options
- RGB user LED, reset, ISP, wakeup buttons
Contents
FRDM-RW612, Quick start guide, USB cable Type-C.
Product details
Other details
| Brand | NXP |
| Part Number | FRDM-RW612 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
