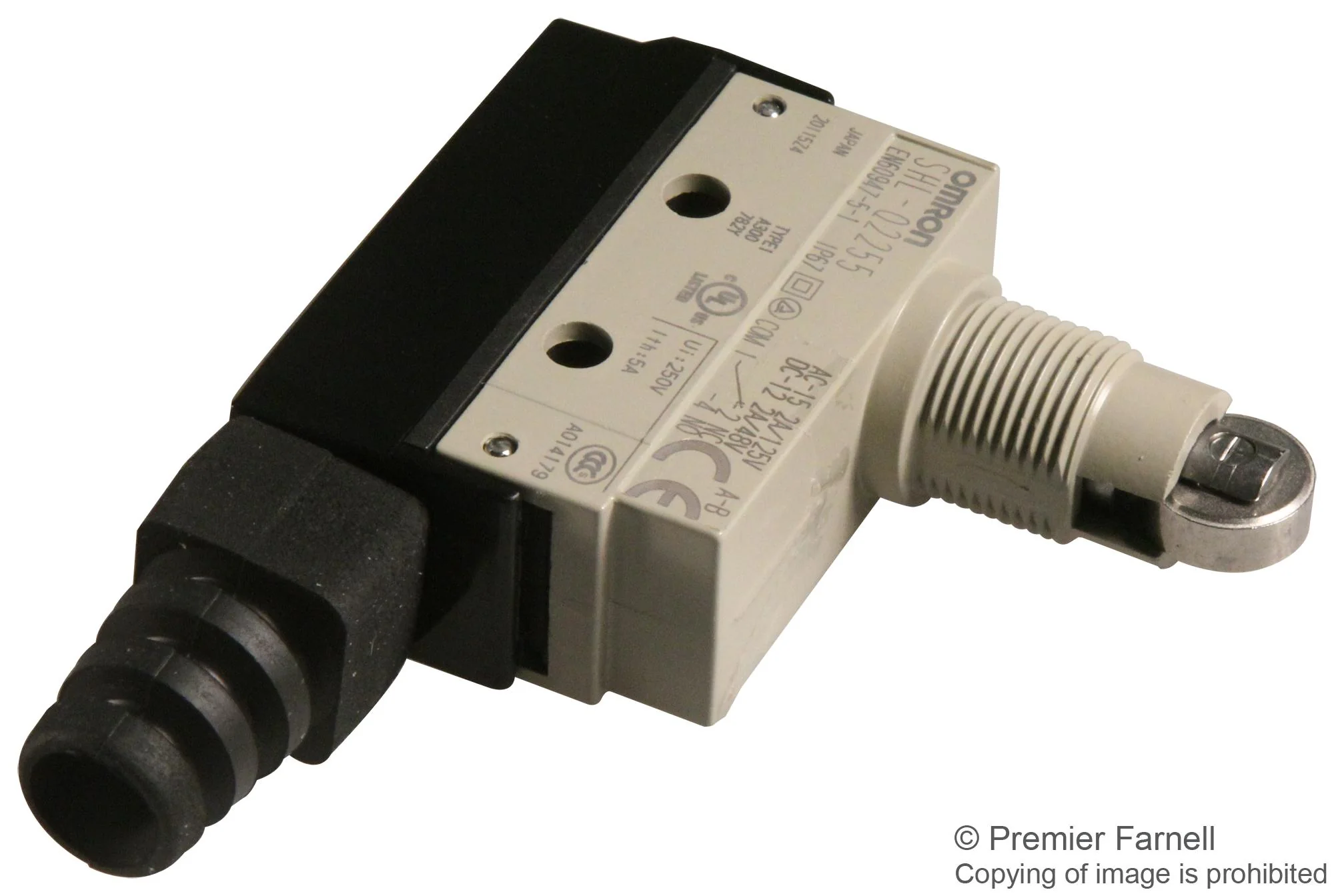

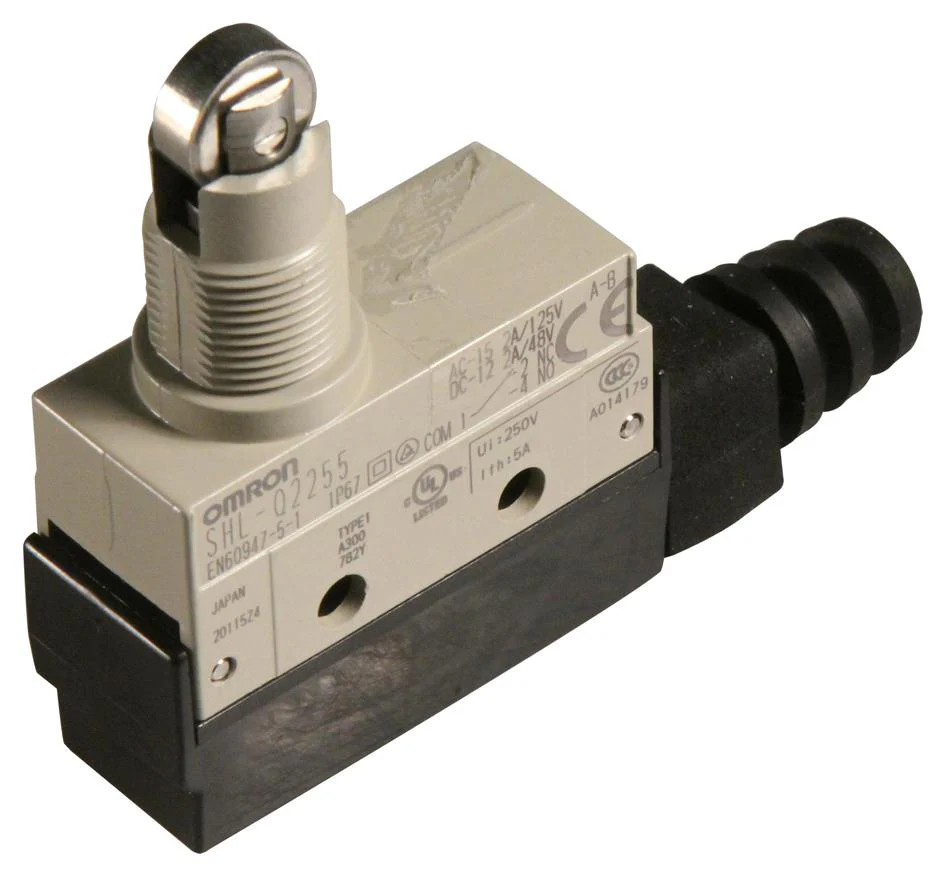

Omron SHL-Q2255 Microswitch Snap Action Roller Plunger Spdt Screw 10 A 250 VDC

The SHL-Q2255 is a single-pole double-throw (SPDT) standard general-purpose Horizontal Switch with a panel-mount roller plunger actuator, self-reset mechanism and snap action operating mechanism. Incorporates a switch with a durable coil spring in a tough, high precision case. Compact and uses a single basic switch for applications where strength is required. The terminal protective cover can be switched to wire cable from either the left or right. The horizontal switch for microloads and models with operation indicators added to series.

• 100MR at 500VDC Minimum insulation resistance
• 15mR Maximum contact resistance
• IP67 Protection rating
• -10 to +80°C Operating temperature range

Applications

Industrial

Other details

Brand	OMRON
Part Number	SHL-Q2255
Quantity	Each
Technical Data Sheet EN
