PANAVISE Deluxe Micro Mount (Black)
- For Mounting CCTV Cameras
- Mounts on Solid Surfaces & Ceiling Rails
- 1/4"-20 Thread with Lock-Ring
- Variable Shaft Length
- Tilts Cameras up to 190Ā°
- 360Ā° Camera Rotation

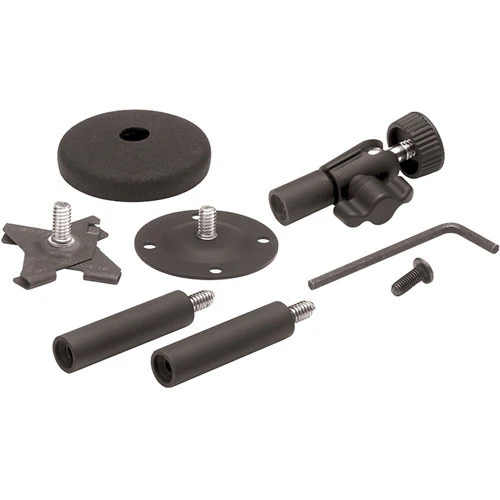

The black Deluxe Micro Mount from Panavise is a customizable mounting kit that offers 12 options for mounting CCTV cameras. A 2" round base with four holes on a bolt circle for solid surface mounting is included, along with a T-bar clip for drop ceiling rails. Two aluminum shafts allow you to vary the mount's length, making it possible to have a mount that is between 2-6" long. Camera positioning is simple thanks to the mount's ability to tilt up to 190Ā° and rotate 360Ā°, while a lock-ring securely holds the camera in place. In addition, the mount features a 1/4"-20 thread, making it compatible with most cameras.
- Adjustable length from 2-6"
- Quick and easy positioning of the camera
- 1/4"-20 thread with lock-ring for secure attachment of the camera
- 190Ā° tilt, 360Ā° turn, and 360Ā° rotation
- Knob and tamper-resistant set-screw adjusting options included
- 2" round base with four 0.188" holes on 1.6" bolt circle for attachment to a solid surface
- T-bar clip for mounting on drop ceiling rails
| Mounting Options | Solid surfaces, ceiling |
| Thread | 1/4"-20 |
| Adjustments | Tilt: Up to 190Ā° Turn/Rotate: 360Ā° |
| Base | Diameter: 2" (50.8 mm) Mounting Holes: 4 x 0.188" (4.8 mm) Bolt Circle: 1.6" (40.6 mm) |
| Shaft Length | 2 x 2" (50.8 mm) |
| Shaft Diameter | 0.5" (12.7 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 4.1 x 3.2 x 2.3" |
- Limited Lifetime Warranty
