Pentax 10x36 A-Series AD WP Compact Binoculars
Pentax A-Series AD WP 10x36 Overview
- 1Description
- 2Optical Performance
- 3Use and Handling
- 4Construction Details
Designed for the nature-enthusiast who wants to pack light without sacrificing image quality, the Pentax 10x36 A-Series AD WP Compact Binoculars deliver bright clear images while weighing in at just 22.5 ounces. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance color rendition. All of the optics are anti-reflection fully multicoated to maximize light transmission to produce the brightest views possible.
In order to cut weight, the housing is made of corrosion and impact-resistant fiberglass reinforced polycarbonate polymer. The material is also temperature-resistant allowing for their use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. There optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions.
- 10x magnification
- 36mm objective lenses
- BAK4 roof prisms
- Phase corrected prism coatings enhance contrast and improve color rendition
- Anti-reflection fully multicoated optics
- 288.8' field of view at 1000 yards
- 55° angle of view
- Closed bridge configuration
- Knurled center focusing wheel
- Twist-up eyecups for use with or without eye wear
- 17.5mm eye relief, 3.6mm exit pupil
- Tripod mountable with optional adapter
- Lightweight fiberglass reinforced polycarbonate housing
- Housing is corrosion, temperature and impact-resistant
- Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals
In the Box
- Pentax 10x36 A-Series AD WP Compact Binoculars
- Neck Strap

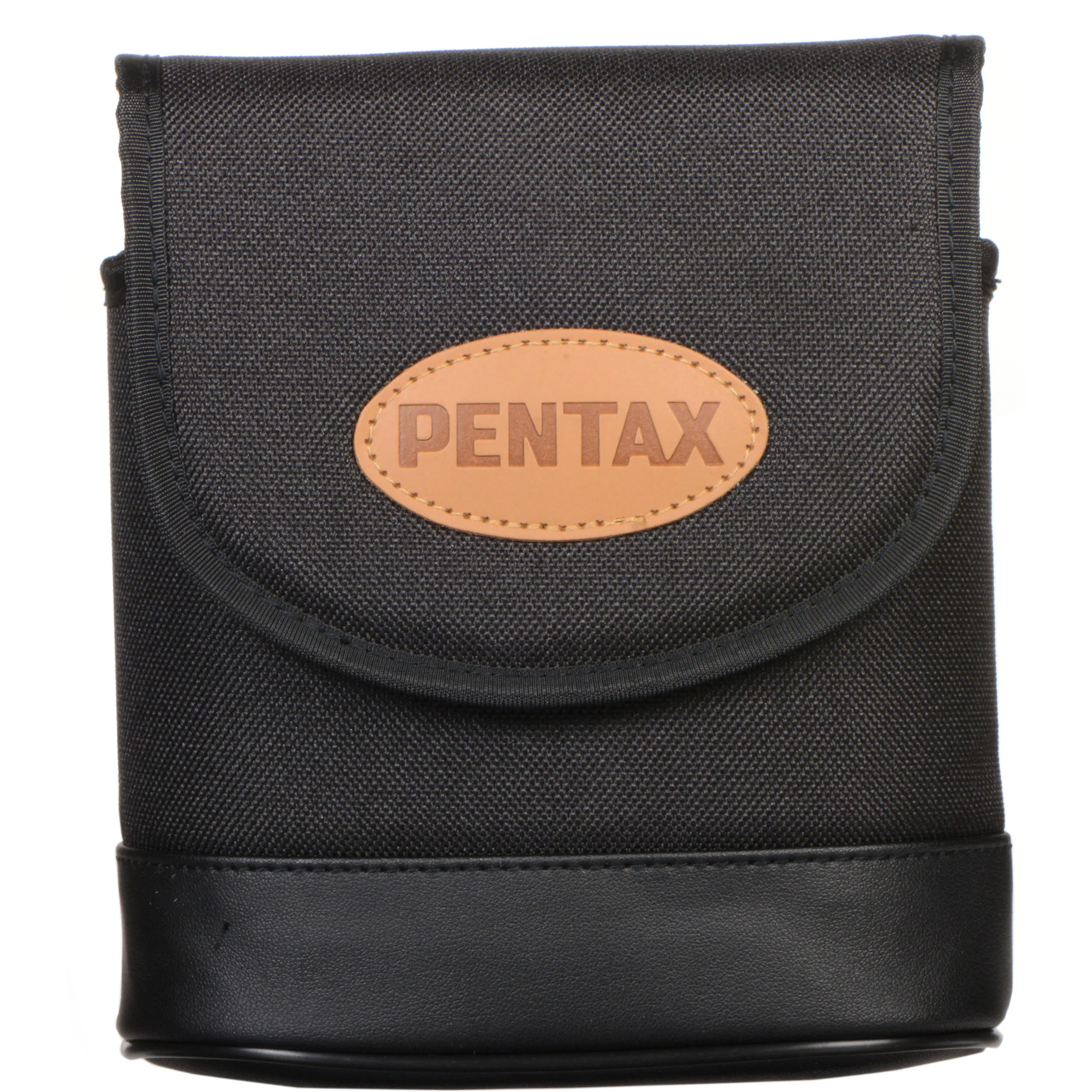

- Carrying Case with Strap
- 2 x Objective Lens Caps
- 2 x Eyepiece Caps
- Limited 25-Year Manufacturer Warranty
- Description
- Optical Performance
- Use and Handling
- Construction Details
Pentax A-Series AD WP 10x36 Specs
| Prism Type |
Roof
|
| Magnification |
10x
|
| Objective Lens Diameter |
36 mm
|
| Angle of View |
5.5° (Actual)
|
| Field of View |
288.7' @ 1000 yd / 96.2 m @ 1000 m
|
| Exit Pupil Diameter |
3.6 mm
|
| Magnification |
10x
|
| Objective Lens Diameter |
36 mm
|
| Angle of View |
5.5° (Actual)
|
| Field of View |
288.7' @ 1000 yd / 96.2 m @ 1000 m
|
| Minimum Focus Distance |
81.7' / 24.9 m
|
| Exit Pupil Diameter |
3.6 mm
|
| Eye Relief |
17.5 mm
|
| Diopter Adjustment |
Yes
|
| Focus Type |
Center
|
| Fogproof |
Yes, Nitrogen Filled
|
| Water Resistance |
Waterproof
|
| Environmental Protection |
Advertised as Water Resistant
*Test Methodology Not Supplied |
| Dimensions |
6.1 x 5.1 x 2.1" / 15.5 x 12.9 x 5.3 cm
|
| Weight |
22.5 oz / 637.9 g
|
| Package Weight |
1.95 lb
|
| Box Dimensions (LxWxH) |
6.9 x 6.2 x 2.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
