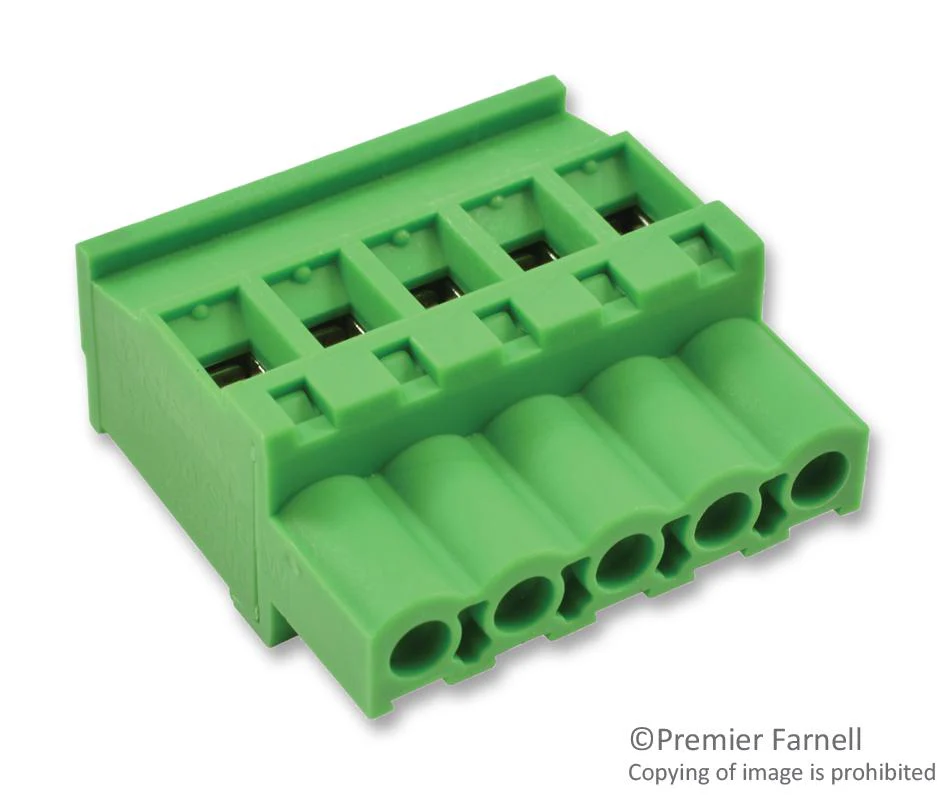

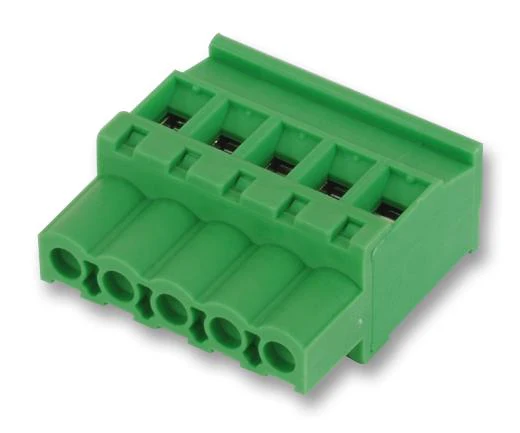

PHOENIX CONTACT 1792786 Pluggable Terminal Block, 5.08 mm, 5 Ways, 24AWG to 12AWG, 2.5 mm², Screw, 12 A GTIN UPC EAN: 4017918045210 MVSTBW 2,5/ 5-ST-5,08
PHOENIX CONTACT 1792786 Pluggable Terminal Block, 5.08 mm, 5 Ways, 24AWG to 12AWG, 2.5 mm², Screw, 12 A GTIN UPC EAN: 4017918045210 MVSTBW 2,5/ 5-ST-5,08
The MVSTBW series Printed-Circuit Board Connector with plug-in direction vertical to the conductor axis, connection point facing the rippled wall (W) of the header. It has 90Ā° difference in plug-in direction for the conductor connection and reduces the risk of the connector being pulled out with the conductor and narrower conductor routing to the application.
- Well-known connection principle allows worldwide use
- Allows connection of two conductors
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 5Ways |
| Wire Size (AWG): 24AWG to 12AWG |
| Conductor Area CSA: 2.5mmĀ² |
| Wire Connection Method: Screw |
| Rated Current: 12A |
| Rated Voltage: 320V |
| Product Range: MVSTBW |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1792786 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
