Pico Technology PICOSCOPE 2408B PC USB Oscilloscope Digital Triggering Picoscope 2000 4 Channel 100 MHz 1 Gsps 128 Mpts

This PicoScope 2000 series is a general purpose pocket-size PC oscilloscope. The A versions provide the lowest cost 2 & 4 channel models, whereas the B versions offer deep memory, higher bandwidths, and MSO models which add 16 digital channels. All models include a built-in, easy to use, Arbitrary Waveform Generator, and a Spectrum Analyzer mode to view signals in the frequency domain.The PicoScope software provides advanced maths, filters, mask testing, complex triggers, automated measurements, and resolution enhancement. Also standard with the downloadable software are a wide range of serial bus decodes, including RS232/422/485, CAN, I2C, SPI and many more.

• USB2 connected and powered
• Full-feature oscilloscope
• Arbitrary Waveform Generator standard
• Serial Bus Decodes standard
• Spectrum Analyser mode standard

Applications

Test & Measurement, Electronics Design

Contents

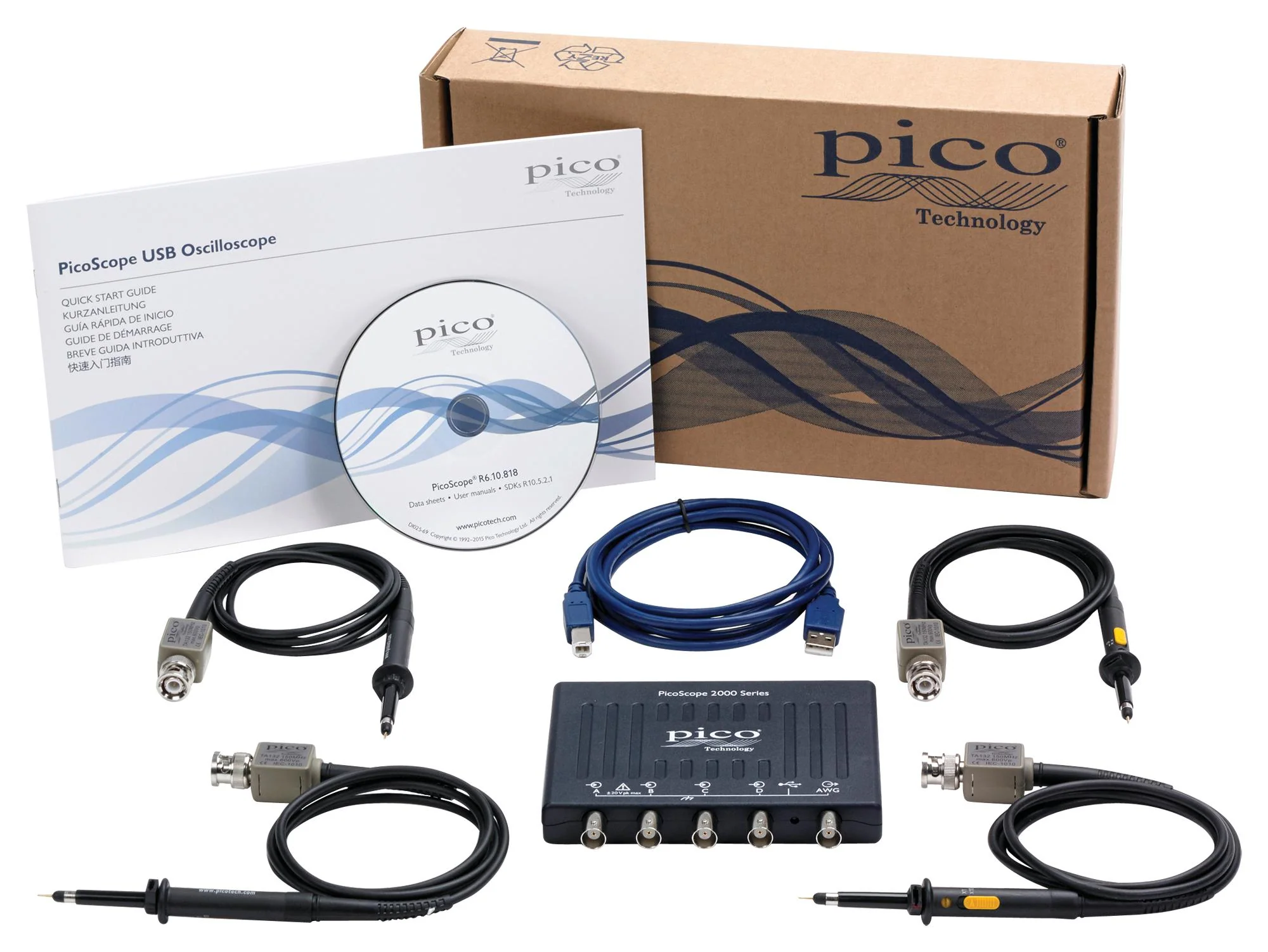

PicoScope 2408B, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, TA207 USB2 Cable, 1.2m, Quick Start Guide

Footnotes Software and user manuals available from: https://www.picotech.com/downloads. In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Other details

Brand	PICO TECHNOLOGY
Part Number	PICOSCOPE 2408B
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
