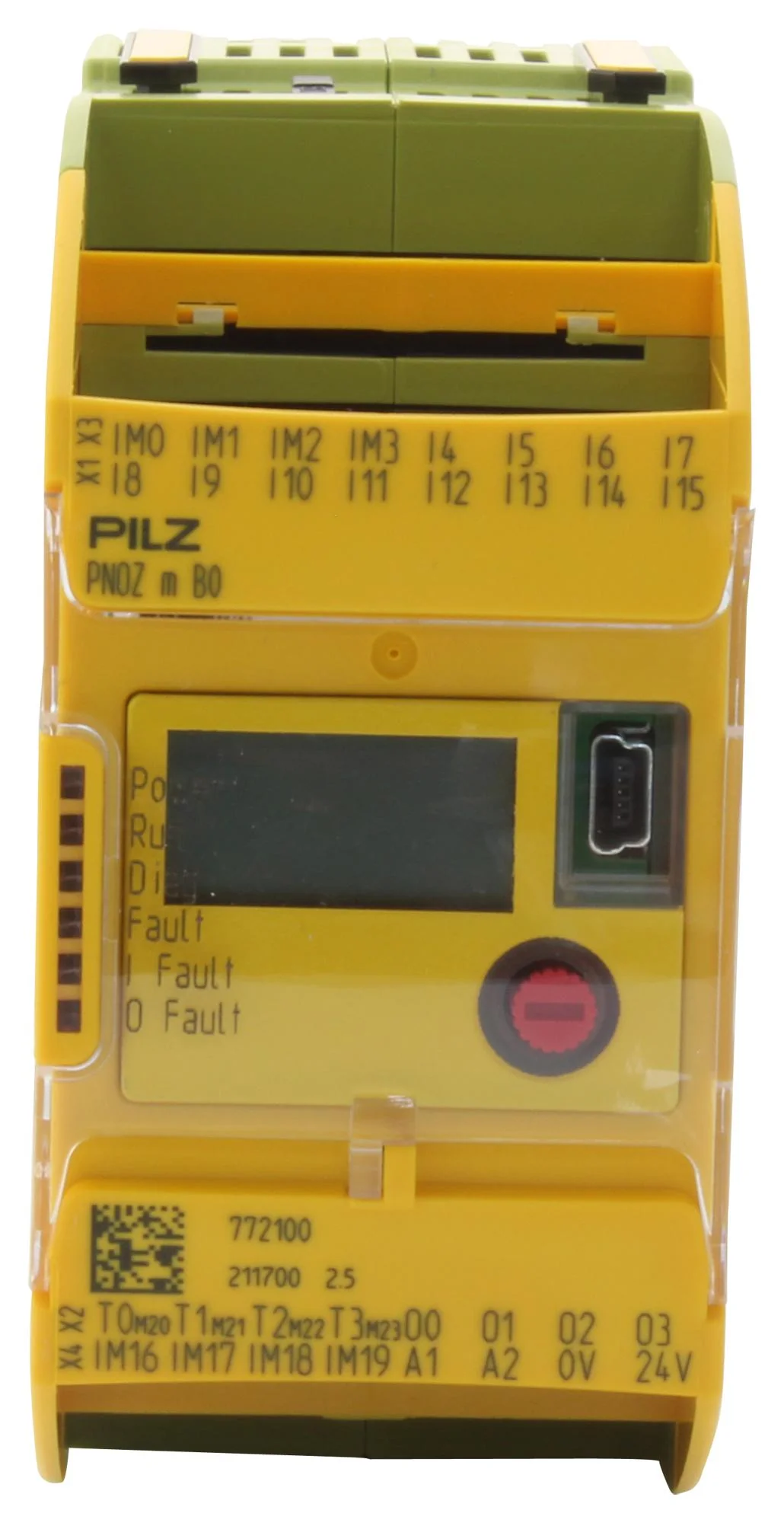

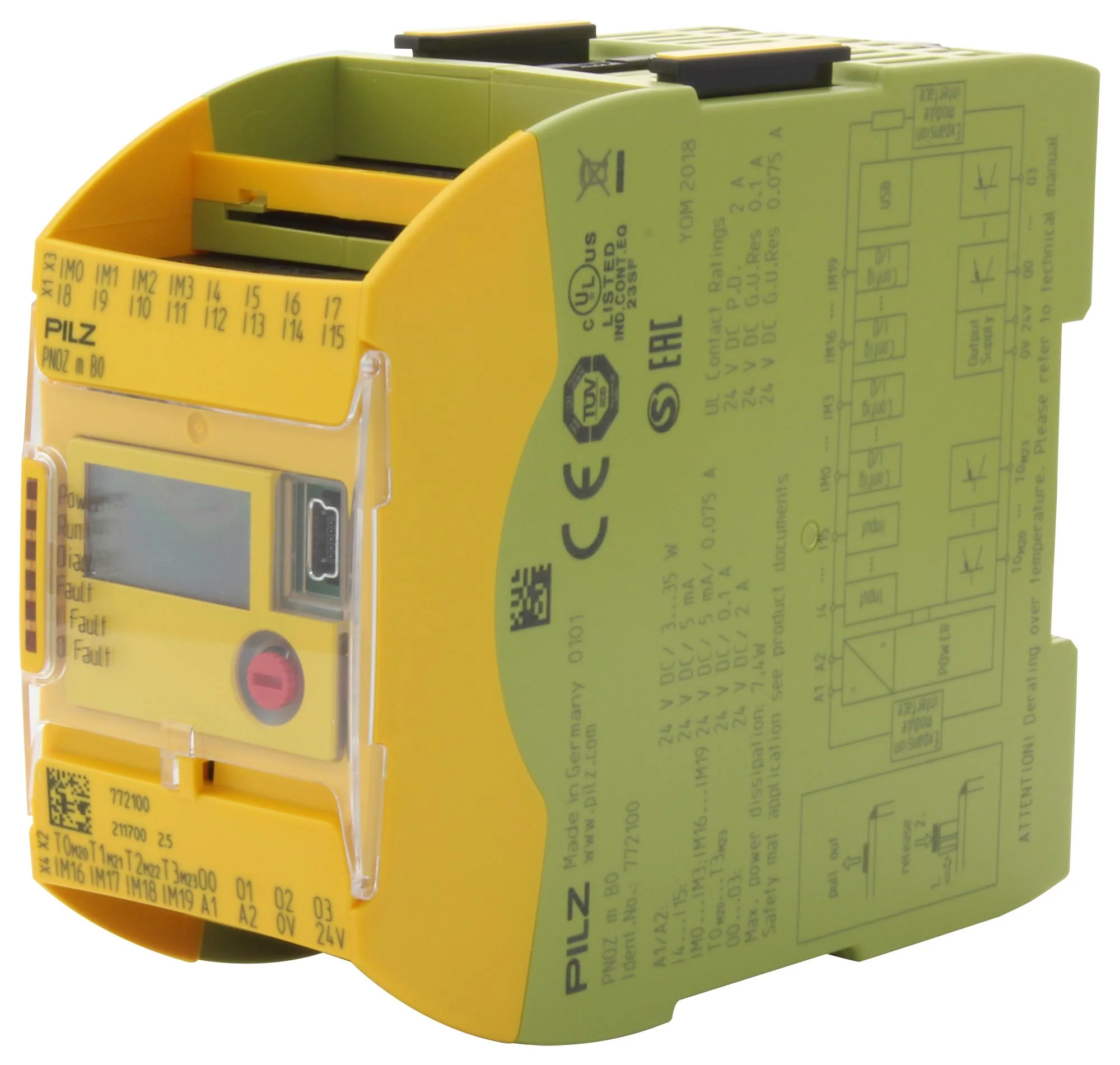

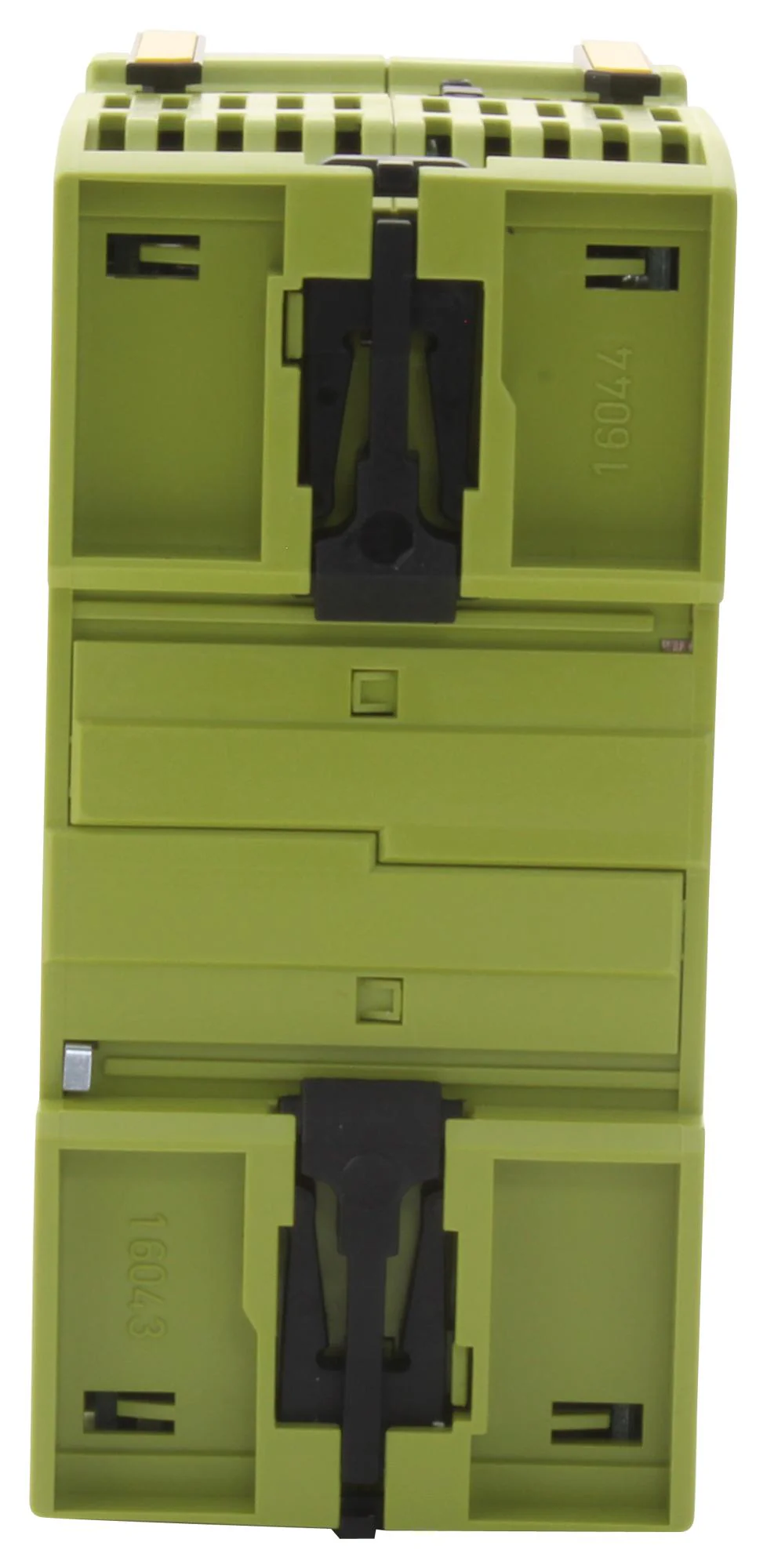

PILZ PNOZ M B0 Configurable Controller, PNOZmulti 2, 20 Inputs, 4 Outputs, 24VDC, DIN Rail
PNOZ m B0 is a configurable control system. To connect emergency stop devices, two-hand pushbuttons, safety gate limit switches, light beam devices, scanners, enabling switches, safety gate switches PSEN, operating mode selector switches.
- Efficient from 4 safety functions upwards
- 20 safe inputs, up to 8 of which can be configured as outputs for standard applications
- 4 safe semiconductor outputs up to PL e, SIL CL 3
- 4 semiconductor outputs, can be configured as outputs for standard applications or as test pulses
- Display for error messages, state of supply voltage, state of i/o's, status and device information
- Rotary knob for menu control
- Max. 6 expansion modules can be connected
- 1 link module or communication module can be connected
- Exchangeable program memory
- LED for fault, diagnostics, supply voltage, input and output circuits
Product details
| No. of Analogue Inputs: - |
| No. of Analogue Outputs: - |
| No. of Digital Inputs: 20 |
| No. of Digital Outputs: 4 |
| Product Range: PNOZmulti 2 |
Other details
| Brand | PILZ |
| Part Number | PNOZ M B0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
