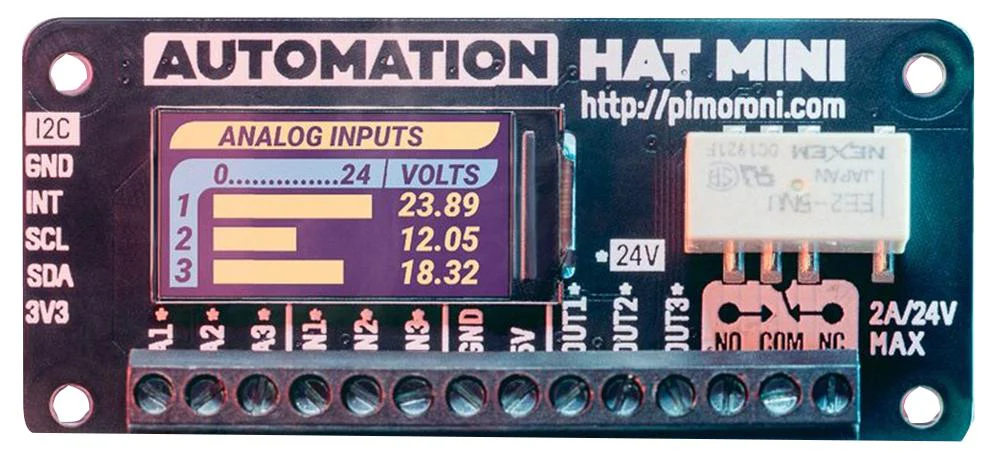

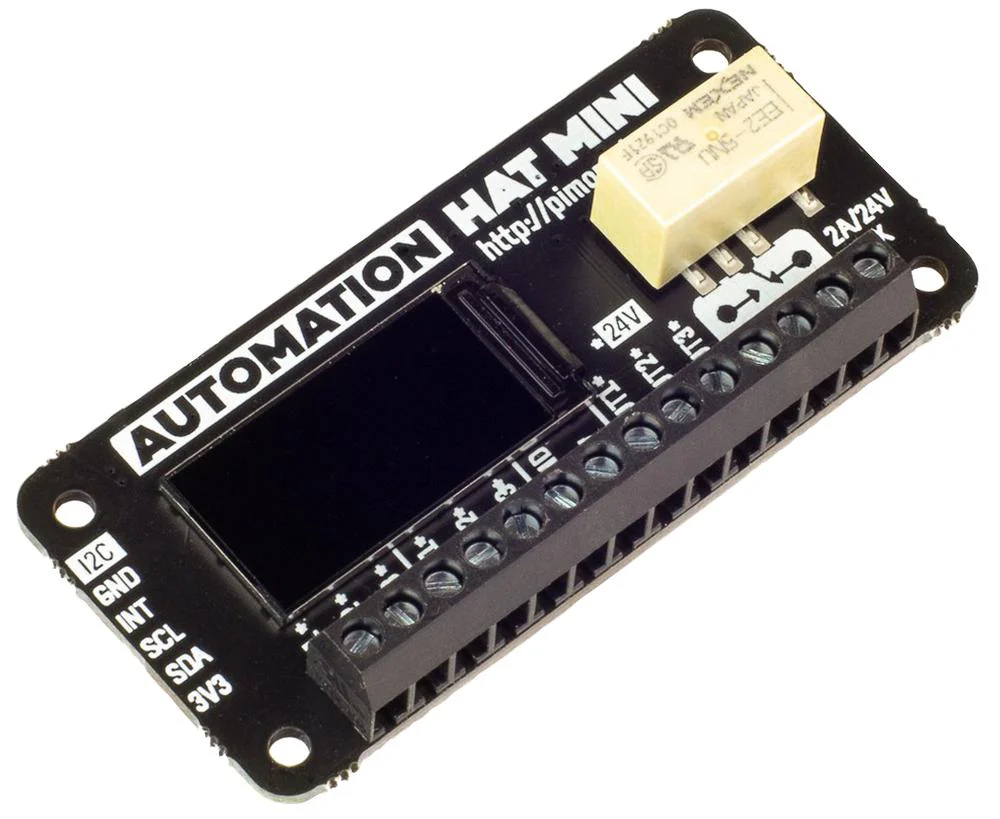

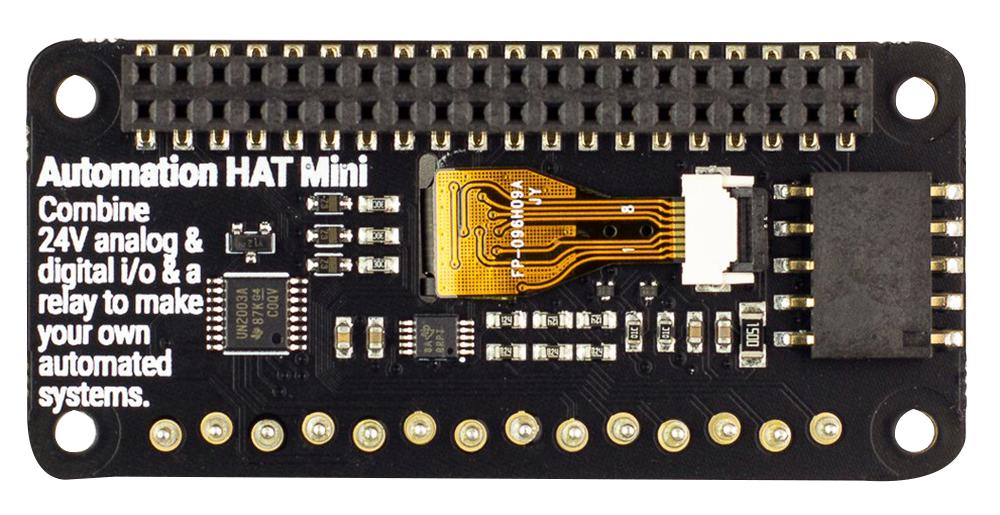

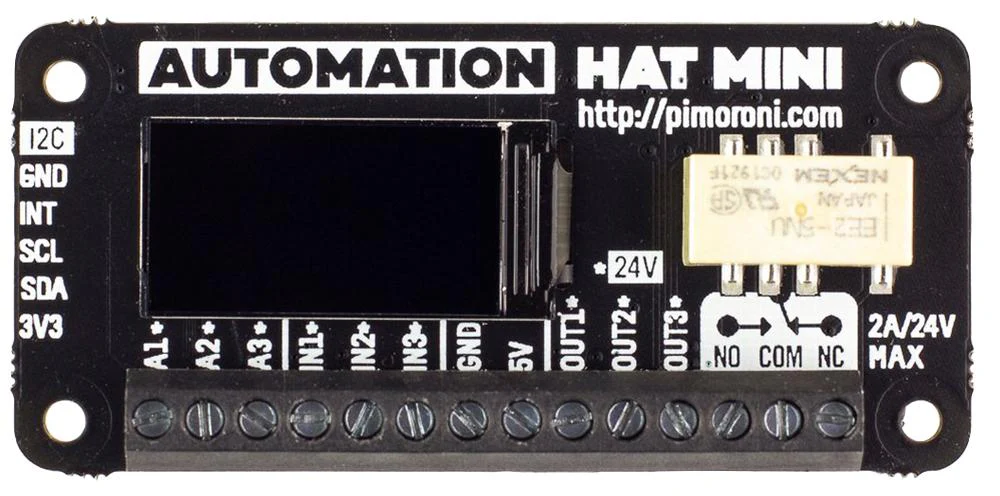

Pimoroni PIM487 PIM487 Evaluation Board Automation HAT Mini 24V LCD Monitor Control
The Automation HAT Mini is a great solution for monitoring and controlling low voltage (12-24V) systems in homes and cars. All the inputs and outputs are 24V tolerant and it features a full colour IPS display to provide status feedback on your system.
- Full colour 0.96" IPS LCD display (160x80)
- 3x 12-bit Analogue inputs @0-24V (ADS1015)
- 3x 24V Tolerant buffered inputs
- 3x 24V Tolerant sinking inputs (outputs can sink a maximum 500mA total across the 3 outputs)
- 24V @2A Relay (NC & NO terminals)
- 3.5mm Screw terminals
- Additional breakout header on the underside for a Pimoroni breakout board
- Python software library available
- Mini HAT format board
- Solderless header is pre-attached
- Compatible with all Raspberry Pi models with 40-pin header
- Dimensions (HxWxD): 17x65x30mm
Board only
Footnotes Note: Loads for the outputs should be switched on the ground side. The relay can tolerate up to 2A each and should be switched on the high side. Warnings Note: Do not use the Automation HAT to switch mains voltages.Product details
| Silicon Manufacturer | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | Raspberry Pi |
| Kit Contents | Automation HAT Mini Board |
| Product Range | - |
Other details
| Brand | PIMORONI |
| Part Number | PIM487 |
| Quantity | Each |
| Manufacturer Product Page EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
