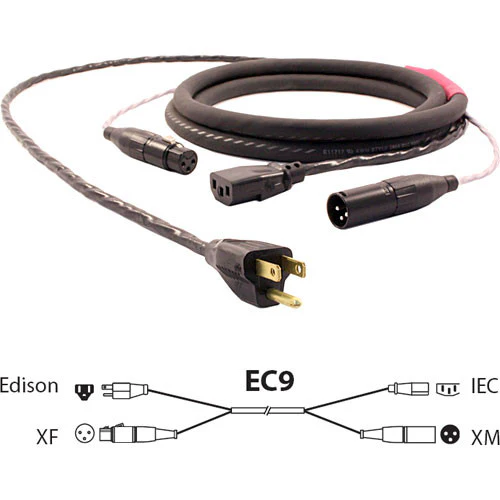

Pro Co Sound EC9 Siamese Twin AC (Edison to IEC) & Audio (XLR Female to XLR Male) Combo Cable- 100'
Pro Co Sound EC9 Siamese Twin AC (Edison to IEC) & Audio (XLR Female to XLR Male) Combo Cable- 100'
Pro Co Sound EC9-100 Overview
Pro Co Sound brings multi-tasking to their line of cables with Siamese Twin Cables. They are a unique combination of balanced audio and AC electrical power carried through the same cable assembly with individual shielded lines that prevent EMI/RFI from disturbing the audio signal. Its ingenious construction is extremely useful for providing power to self-powered, full-range, and bi-amplified loudspeaker systems from manufacturers like Turbosound, JBL, EON, EAW, Meyer, Mackie and others.
This design minimizes the number of individual cables flowing from a set of components and aids in reducing cable snarls. Each cable has a fanout of connectors that provide enough reach for the lines to connect to the power and audio ports which may or may not be near each other. The cable ends are color-coded for easy identification and the cable body has a rugged jacket that protects the individual lines inside.
Pro Co Sound EC9-100 Specs
| Cable Type | EC9 Composite AC & audio cable |
| Length | 100' (30.5 m) |
| Gauge | Power Cable:14 Gauge, 3-conductor power wire, 18 Gauge drain wire (connected to ground contacts of the AC connectors)
Audio Cable: 24 Gauge Overall Cable Diameter: 0.501" matte black PVC |
| Shielding | Power Cable: 0.015" PVC insulation, provides 100% shielding
Audio Cable: 0.015" SR-PVC insulation, provides with 100% coverage aluminum/mylar shield under 60% coverage 36 gauge tinned copper braid shield |
| Power Connector | Edison to IEC |
| Audio Connector | XLR Female to XLR Male |
| Package Weight | 16.245 lb |
| Box Dimensions (LxWxH) | 17.6 x 16.5 x 5.45" |
Pro Co Sound EC9-100 Reviews
