RCF HDL20-A Dual 10" 1400W Active Line Array Module Kit with Flybar and Cables (2-Pack)
HomeStore

RCF HDL20-A Dual 10" 1400W Active Line Array Module Kit with Flybar and Cables (2-Pack)

RCF HDL20-A Dual 10" 1400W Active Line Array Module Kit with Flybar and Cables (2-Pack)

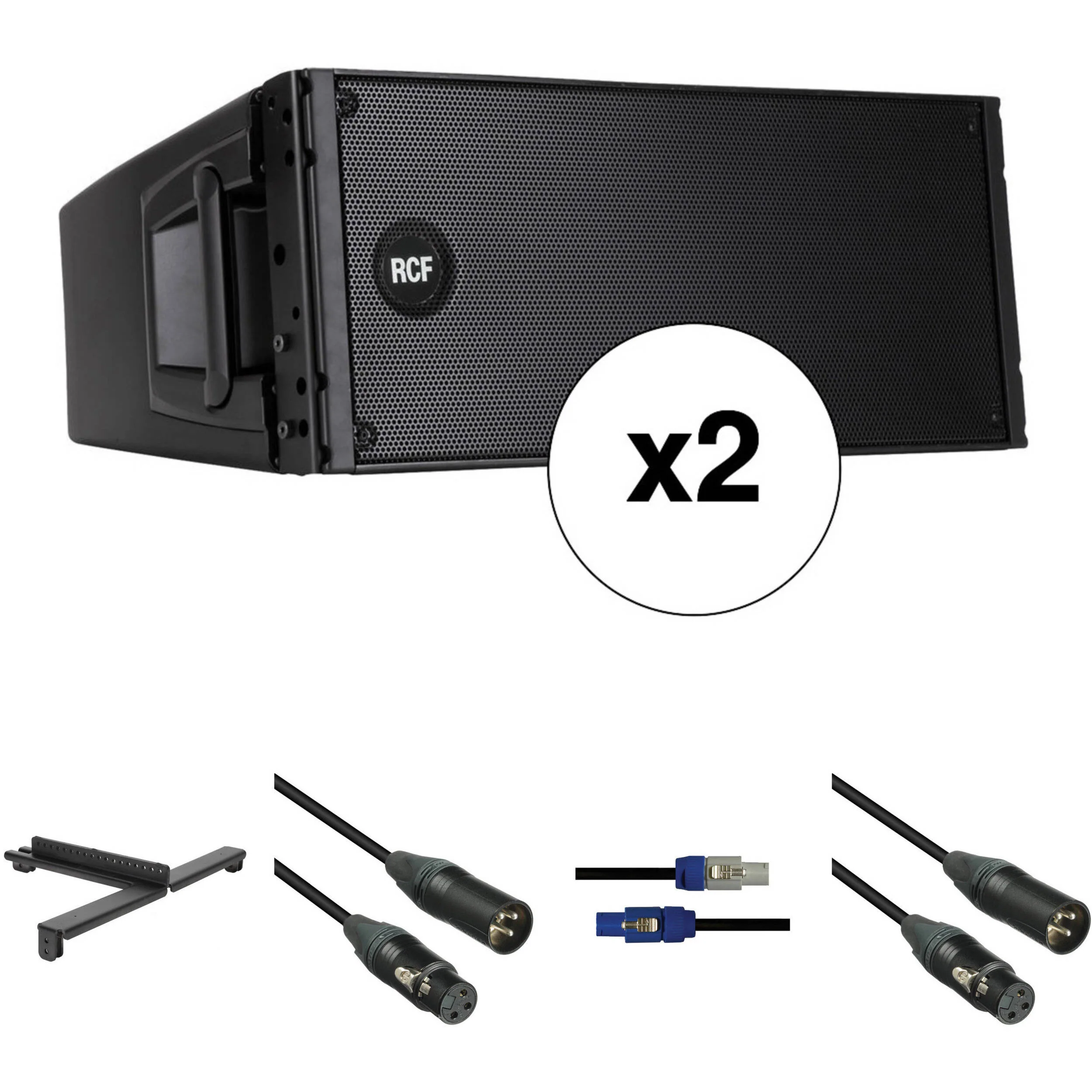

Kit Contains:
RCF HDL20-A Dual 10" 1400W Active Line Array Module
RCF FL-B LGT HDL 20 Light Fly Bar for HDL 20-A Line Array
Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (25', Black)
Blizzard Cool Cable 14-Gauge Interconnect Cable (3')
Enova NXT True Mold XLR Microphone Cable (3.3')

Need a compact line array system for live sound reinforcement? Check out this Kit which combines a pair of RCF HDL 20-A Powered Line Array Speaker Modules with a light fly bar, a combo power/audio jumper cable, and a premium XLR to create the primary components of a line array speaker system.

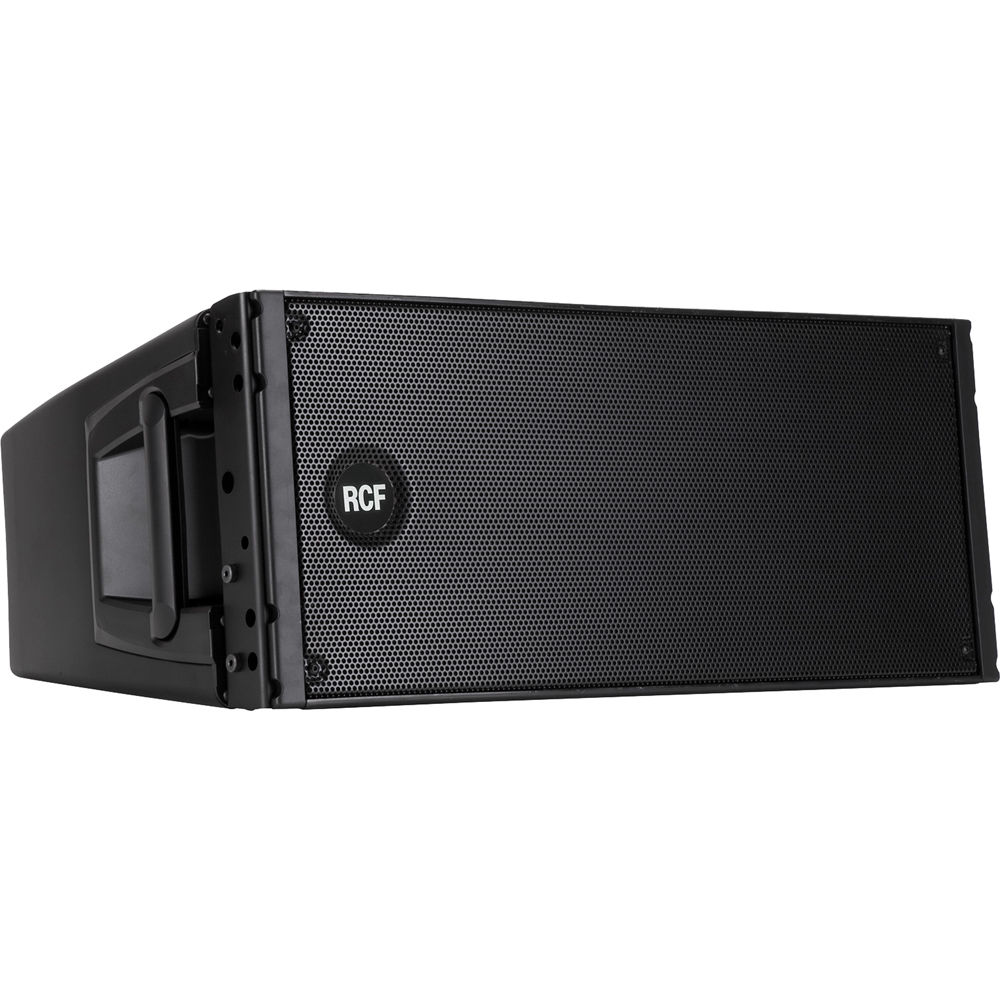

RCF HDL20-A Dual 10" 1400W Active Line Array Module

Audio professionals in search of a compact line array module for live sound reinforcement and reliable installation applications will be impressed with the RCF HDL 20-A, a powered line array module with a fast and easy setup well suited for touring bands, concerts, clubs, festivals, or anywhere line array performance is needed.

The module features a 1400W bi-amplifier that delivers 1000W to the dual 10" woofers and 400W to the 3" compression driver, which combine for a frequency response of 55 Hz to 20 kHz and a maximum SPL of 135 dB. The integrated DSP includes cluster and high-frequency projection correction and special new presets for indoor and high-curving situations. There are XLR inputs and outputs and powerCON inputs and outputs for daisy chaining multiple line array modules.

Tour Sound in a Compact Size
The HDL 20-A is a true active and high-power, ready-to-use touring system equipped with a high-efficiency digital amplifier that delivers superior SPL, reducing energy requirement. The integrated processing and the cabling reduction will make the set up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
Power Class-D Amplifiers
RCF's Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. HDL amplifiers deliver an ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure, which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
RCF Precision Transducers
High frequencies:

  • The CD850 large-format compression driver delivers one of the key advantages of the HDL 20-A, the 3" voice coil allows a crossover point of 800 Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

Low frequencies:

  • High power woofers. Very-high efficient and controlled bass reproduction.
    • 2 x 10" woofers, 2,5" inside-outside voice coil
    • Water-resistant fiber doped cone
    • Polycotton M-roll surround
    • Hypervented magnetic structure
At a Glance
  • 1400W peak power / 700W RMS
  • 135 dB max SPL
  • 55 Hz to 20 kHz frequency response
  • DSP controlled -input section with selectable presets
  • Tour-grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

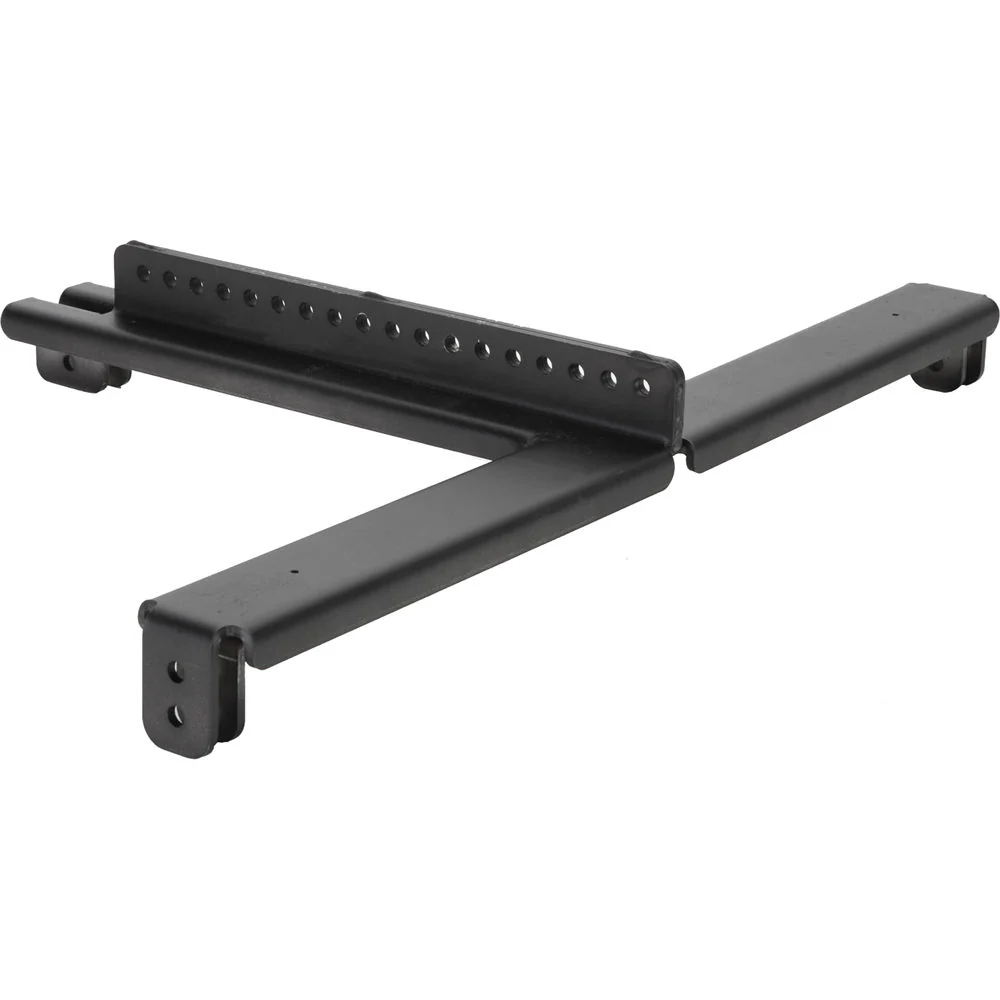

RCF FL-B LGT HDL 20 Light Fly Bar for HDL 20-A Line Array

The FL-B LGT HDL 20 Light Fly Bar from RCF is a suspending bar for the HDL 20-A Line Array System. This fly bar is designed specifically to suspend HDL 20-A line array speakers and supports up to 4 HDL 20-A speakers.

The solid steel construction can be relied upon for serious installation and demanding usage. This fly bar includes a pole mount, a pickup tab with shackle, a stacking bar, and 7 pins for getting started.

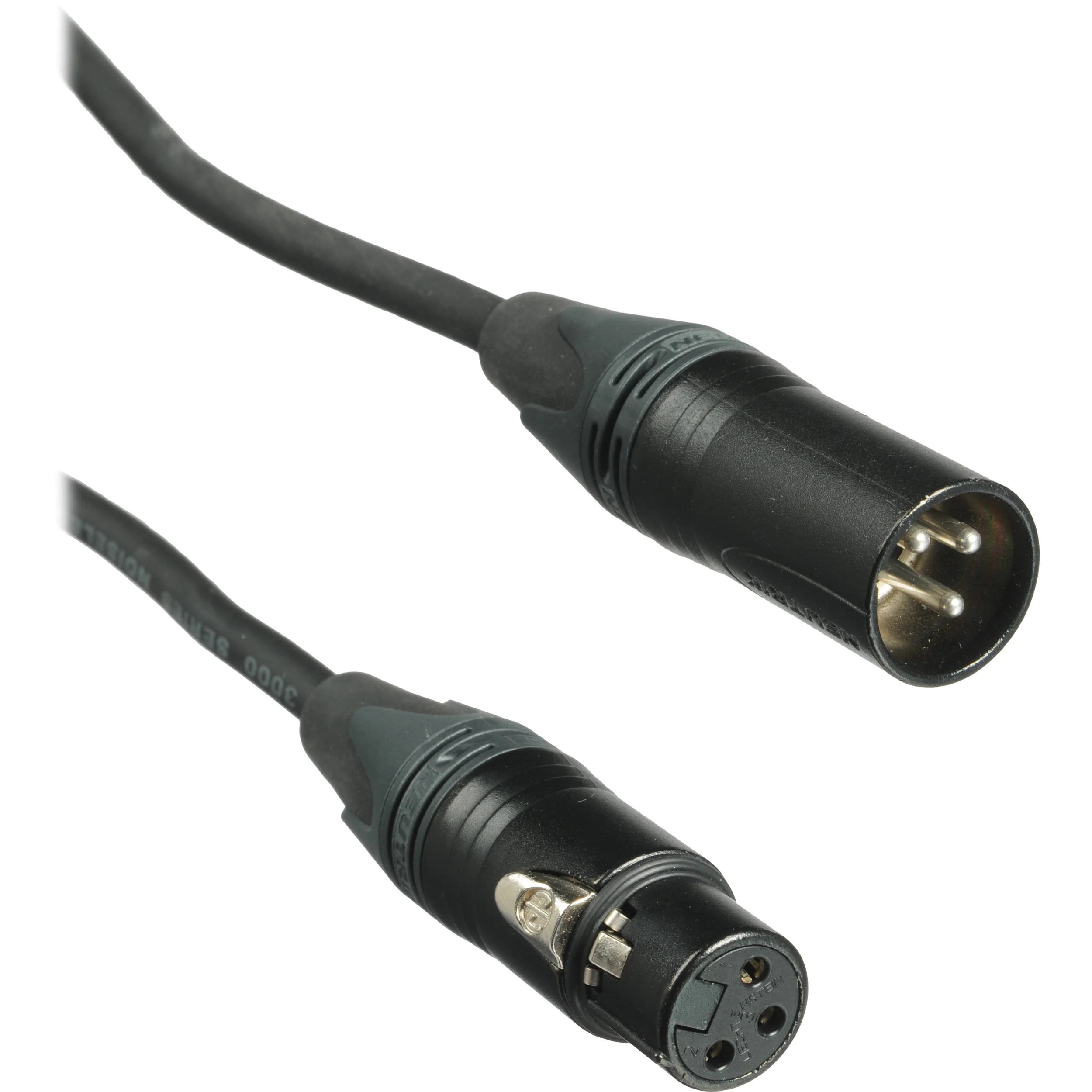

Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (25', Black)

The black Kopul Premium Performance 3000 Series XLR Male to XLR Female Microphone Cable (25') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections onstage, it provides a pleasant aesthetic quality at the same time.

Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. The 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.

95% dual-spiral shielding offers protection from EMI and RFI noise
Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables and helps prevents external EMI from penetrating to the cable's core
24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
Cotton yarn reduces electrostatic and microphonic noise
All solder points shrink-wrapped for protection
Neutrik XX silver connectors offer high conductivity
Caged type contact and improved ground contact
UPC: 847628558311
Blizzard Cool Cable 14-Gauge Interconnect Cable (3')

This 3' Cool Cable 14-Gauge Interconnect Cable from Blizzard Lighting allows power linking of compatible devices.

UPC: 852659766529

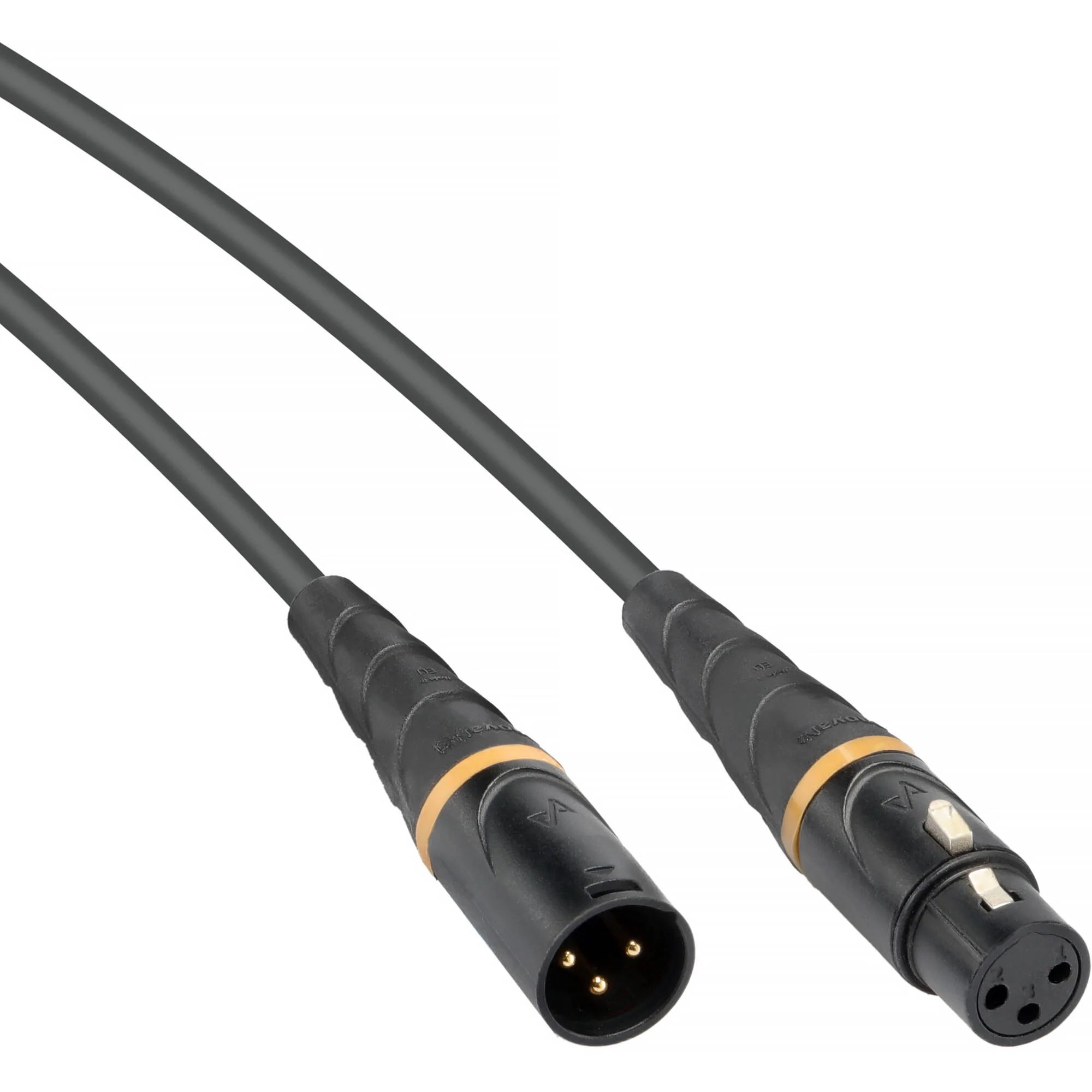

Enova NXT True Mold XLR Microphone Cable (3.3')

The Enova NXT True Mold XLR Microphone Cable (3.3') is a flexible and reliable cable built for connecting mics to mixers, preamps, audio interfaces, and recorders. True Mold technology fully integrates the cable and connectors, providing strain relief that withstands a higher force than conventionally manufactured XLR cables to ensure outstanding strength and durability that stands up to the rigors of live stage and studio applications. This is a weather and Moisture Resistant Cable.

Enova True Mold cables are made from 24 AWG wire with a 98% copper spiral outer shield that makes the cable resistant to EMI and RFI noise. The Swiss-made EnovaNxt connectors are gold-plated to provide a high level of connectivity, and all the solder connections are protected by heat-shrink tubes. The modern and slick design of the body allows for enhanced handling and the tapered design puts an end to drooping cables.

Key Features
The True Mold technology merges the connectors and the cable to a fully integrated, ready-made-cable. Only the essential components of the XLR connectors are used and as a result overcoming the weaknesses of the individual connectors.
Manufactured in Europe, the EnovaNxt cable is designed for on-stage applications and offers an improved production again dust and water.
Gold-plated XLR contacts ensure an optimal conductivity, better corrosion protection and increased durability when mating frequently.
98% copper spiral shield offers protection from EMI and RFI noise.
To avoid short-circuit faults, the solder joints are protected and secured by a true injection mold.
The cable features an interchangeable color coding ring; with this feature, event technicians and musicians can change the color coding of the cable at any time making cumbersome rewiring obsolete.
Environmentally friendly manufacturing and packaging.
Lifetime Warranty?Made in Europe.

Items Included

  • 2 x RCF HDL20-A Dual 10" 1400W Active Line Array Module
    • Power Cord
    • Limited 3-Year Manufacturer Warranty
  • RCF FL-B LGT HDL 20 Light Fly Bar for HDL 20-A Line Array
    • Stack Bar
    • Pole Mount
    • Pickup Tab with Shackle
    • 7 x Pin
    • Limited 3-Year Manufacturer Warranty
  • Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (25', Black)
    • Limited 3-Year Manufacturer Warranty
  • Blizzard Cool Cable 14-Gauge Interconnect Cable (3')
    • Limited 2-Year Manufacturer Warranty
  • Enova NXT True Mold XLR Microphone Cable (3.3')
    • Limited Lifetime Warranty

Additional Resources

Guides & Manuals

    Kit Contains:
    RCF HDL20-A Dual 10" 1400W Active Line Array Module
    RCF FL-B LGT HDL 20 Light Fly Bar for HDL 20-A Line Array
    Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (25', Black)
    Blizzard Cool Cable 14-Gauge Interconnect Cable (3')
    Enova NXT True Mold XLR Microphone Cable (3.3')

    RCF HDL20-A Dual 10" 1400W Active Line Array Module

    Key Specs
    Speaker Type
    Active Line Array Loudspeaker
    Configuration
    Full-Range Array
    Total Output Power
    700 W RMS / 1400 W Peak
    LF Driver
    2x 10" / 25.4 cm Woofer
    Voice Coil: 2.5" / 6.3 cm
    HF Driver
    1x 2" / 5.1 cm Compression Driver
    Voice Coil: 3" / 7.6 cm
    Frequency Range/Response
    55 Hz to 20 kHz
    Configuration
    Full-Range Array
    Enclosure Type
    Bass-Reflex
    Total Output Power
    700 W RMS / 1400 W Peak
    Amplifier Power Rating
    Low Frequency (LF)
    500 W RMS / 1000 W Peak
    Mid Frequency (MF)
    200 W RMS / 400 W Peak
    Amplifier Class
    Class-D
    Drivers
    LF Driver
    2x 10" / 25.4 cm Woofer
    Voice Coil: 2.5" / 6.3 cm
    HF Driver
    1x 2" / 5.1 cm Compression Driver
    Voice Coil: 3" / 7.6 cm
    Performance
    Frequency Range/Response
    55 Hz to 20 kHz
    Maximum SPL
    135 dB
    Coverage Angle
    100? H x 15? V
    Protections
    RMS, Thermal
    Signal Processing
    Crossover Frequency
    800 Hz
    EQ & Filters
    No
    Dynamic Processing
    Soft Limiter
    Alignment Delay
    No
    Digital Signal Processing
    Venue Settings, Voicing Modes
    Connectivity

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
