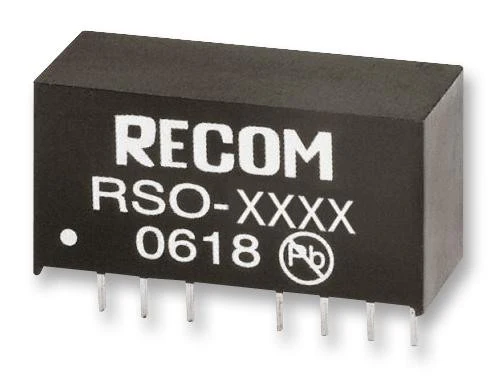

RECOM POWER RSO-2405SZ/H3 Isolated Board Mount DC/DC Converter, Medical, 1 Output, 1 W, 5 V, 200 mA
RECOM POWER RSO-2405SZ/H3 Isolated Board Mount DC/DC Converter, Medical, 1 Output, 1 W, 5 V, 200 mA
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 200mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | - |
| Input Voltage DC Min | 9V |
| Input Voltage DC Max | 36V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | SIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | IEC 60601, UL |
| Width | 9.2mm |
| Height | 11.1mm |
| Depth | 21.8mm |
Other details
| Brand | RECOM POWER |
| Part Number | RSO-2405SZ/H3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
