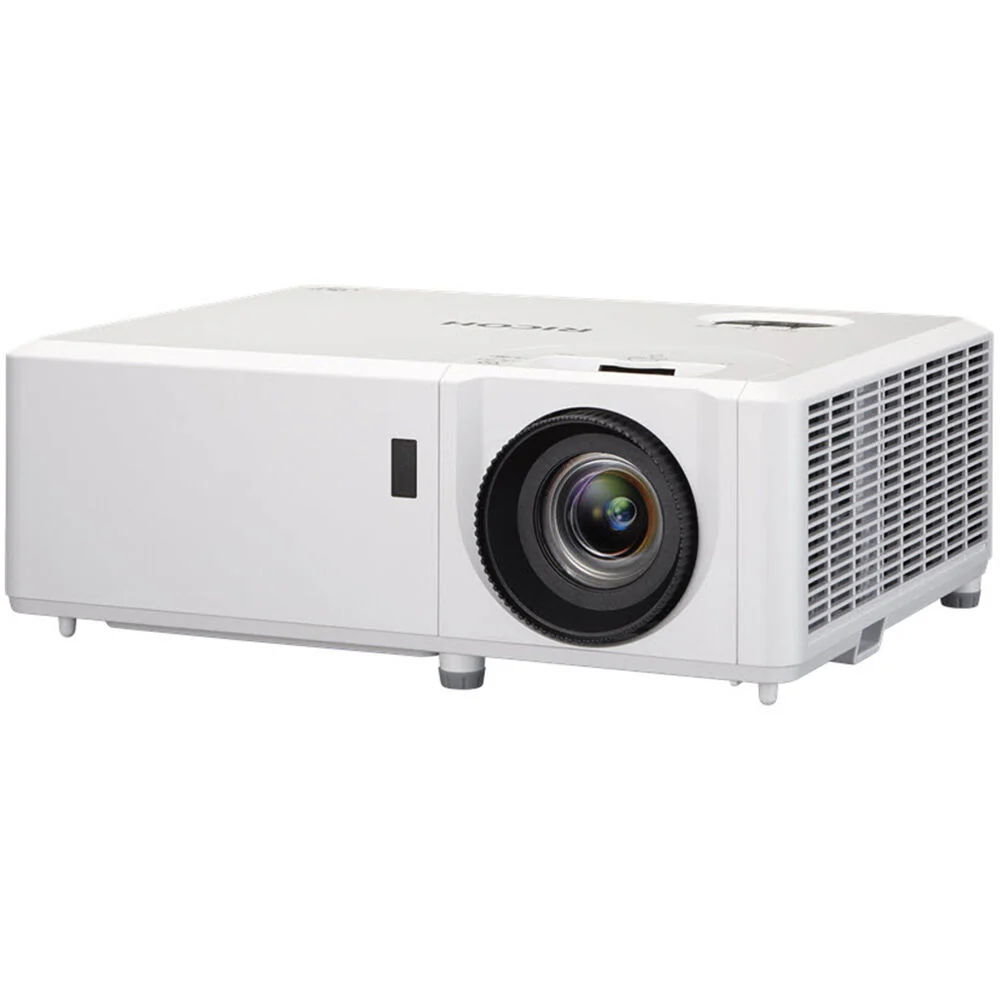

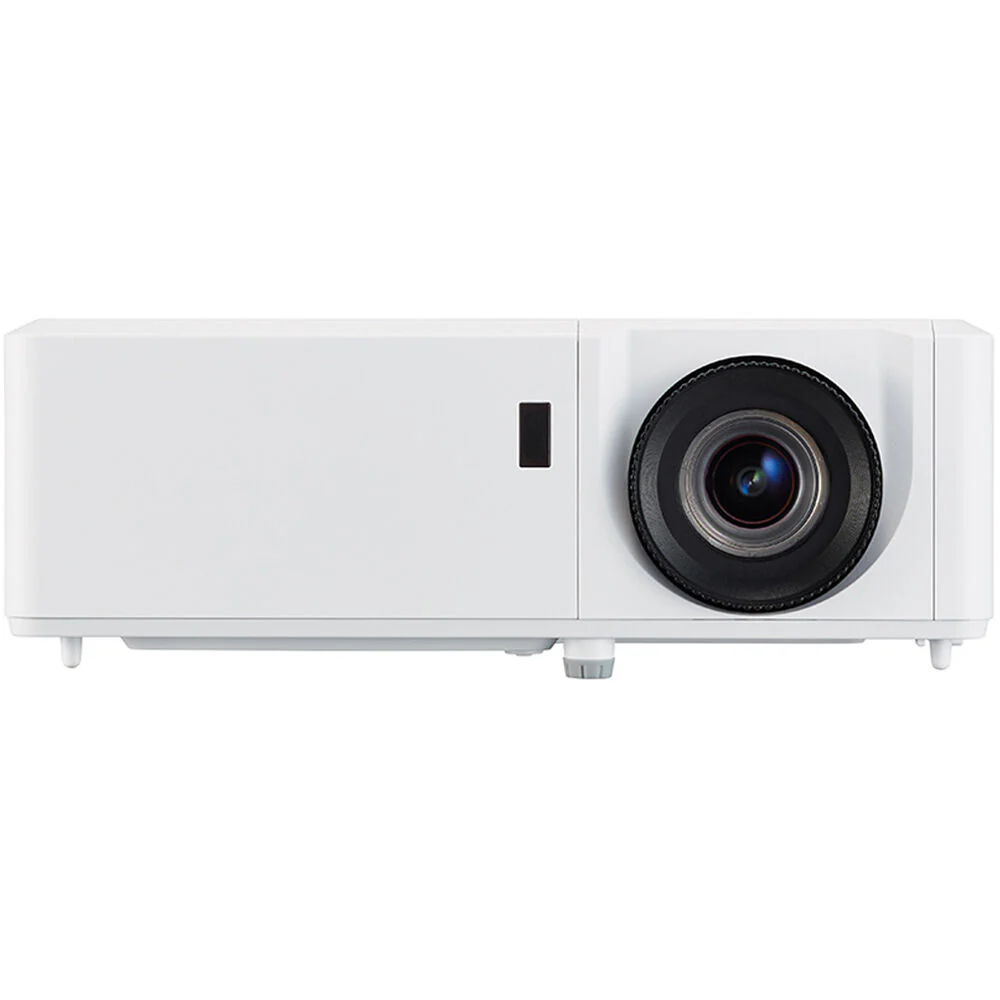

Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector
Ricoh WUL5860 Overview
By Photo's
Frank Abbate
Enjoy ease-of-use and portability with the Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector. Featuring a long-lasting laser light source, compact portable design, and various image correction functions, the PJ-WUL5860 is well suited for smaller classrooms, offices, and portable presentations.
A variety of SD, HD, and UHD sources are supported via HDMI 2.0, VGA, and RCA composite A/V inputs. The integrated standard-throw lens is capable of filling a 16:10 aspect screen, 100" in diagonal, from 10' away. Additionally, an IP6X dustproof design, 360° orientation support, four-corner correction, and keystone capabilities enable installation in less-than-ideal environments.
Multi-Module Laser Light Source
Laser light sources typically enable maintenance-free operation for up to 20,000 hours in standard mode. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.
Wide Color Gamut
The laser light source exhibits a pure texture, covering more than 92% of the Rec.709 color gamut range. Ricoh's unique NCE natural gain technology allows for lifelike color reproduction to fit the needs of the environment.
Advanced Image Adjustments
The PJ WUL5860 supports 360-degree installation, making it suitable for a wide range of applications like ceiling, floor, or wall projection. Due to installation conditions, image distortion and deformation may occur once the projector is set up. The built-in four corners correction function enables individual adjustments for each corner of the projection screen. When paired with horizontal and vertical keystone adjustments, a perfectly rectangular view can be achieved.
IP6X Dust-Proof Design
Dust plays a crucial role in impacting a projector's lifespan. The PJ WUL5860 optical engine is fully enclosed, with a dustproof rating of IP6X. This significantly reduces maintenance costs and prolongs the life of the projector by mitigating common issues caused by contaminants, such as image speckling and brightness decline.
Remote Control ID Setup
By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.
Additional Features
- 10% vertical lens shift
- Automatic vertical angle correction
- Quick power on/off
- DICOM Sim mode
- Built-in dual 8W speakers
UPC: 026649324802
Items Included
- Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector

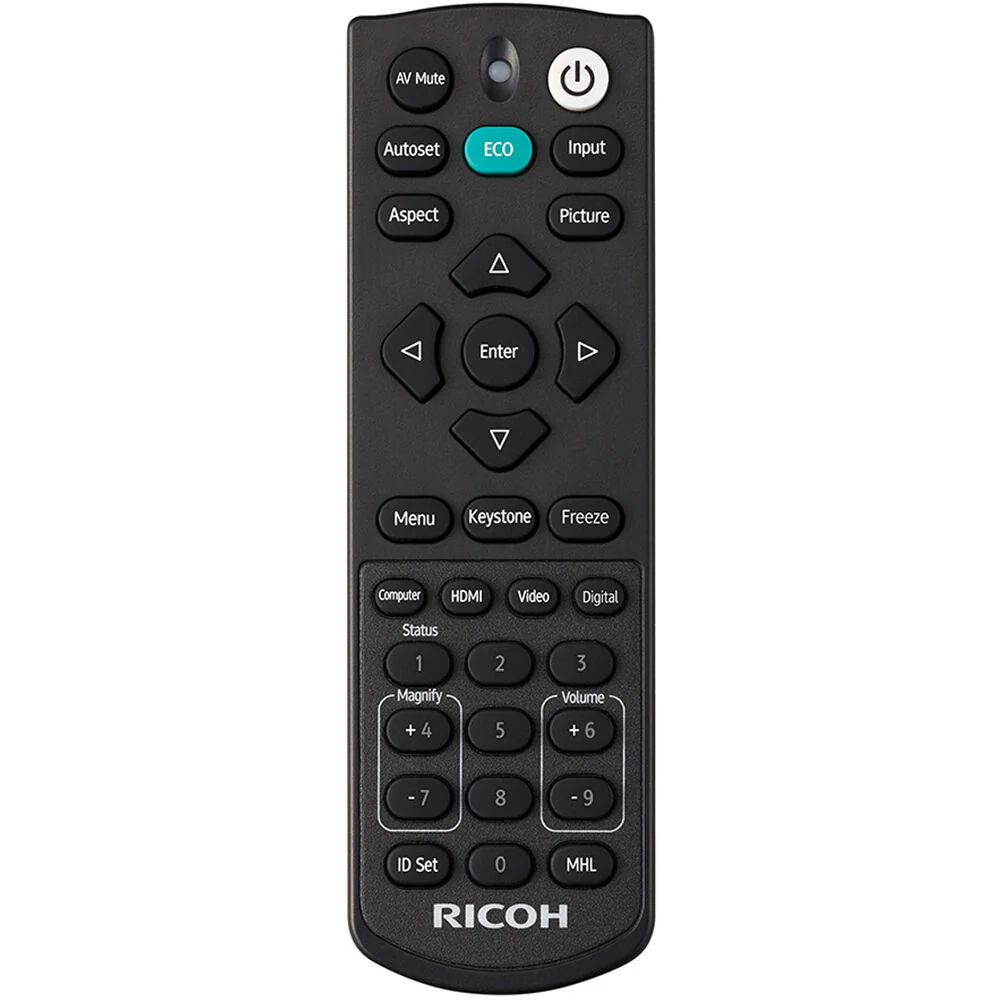

- Remote Control with Batteries
- Power Cord
- HDMI Cable (6')
- Limited 3-Year Manufacturer Warranty
Additional Resources
Ricoh WUL5860 Specs
Key Specs
| Display System |
1-Chip 0.48" DLP
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
4000 Lumens
|
| Throw Ratio |
1.21 to 1.59:1 (100" Screen Size @ 10' / 3.0 m)
|
| Projection Size |
30 to 300" / .8 to 7.6 m
|
| HDR Support |
No
|

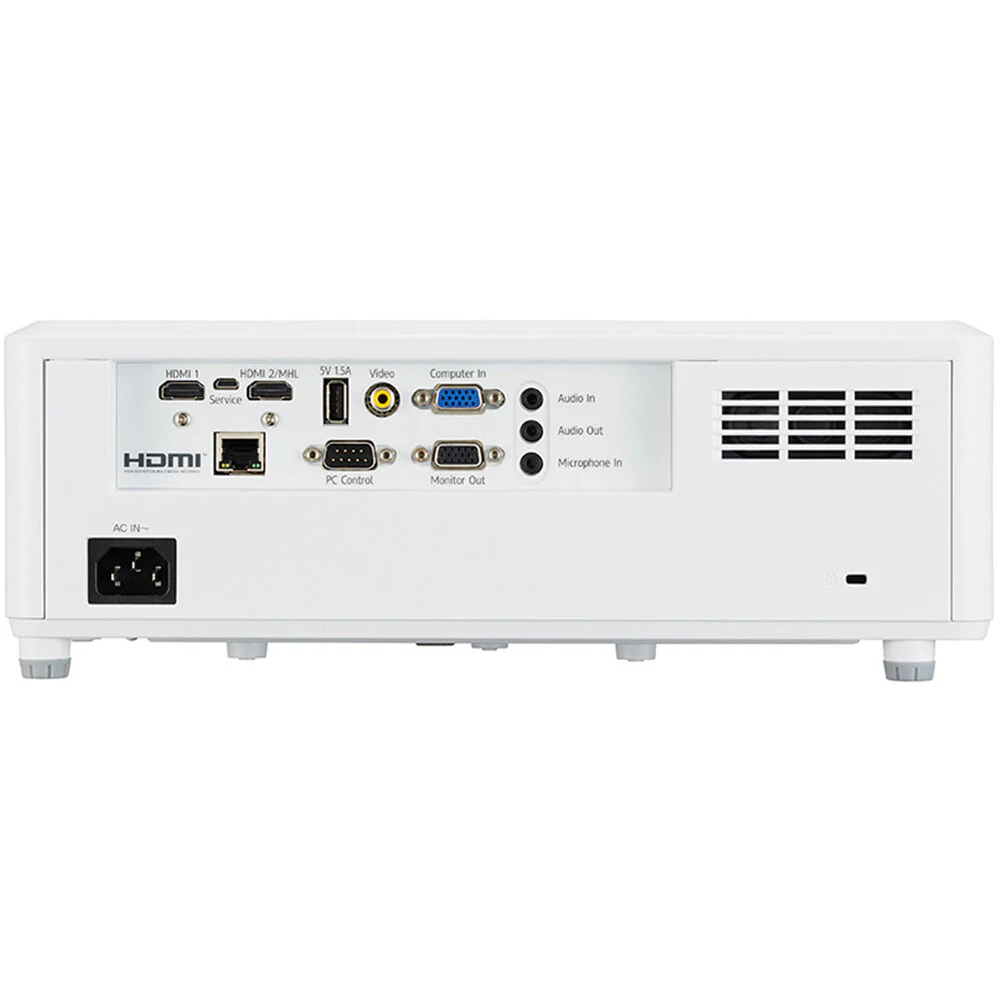

| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
1x RCA (Composite) Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Microphone Input 1x DE-15/DB-15 (VGA) Video Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x Micro-USB Service Input 1x RJ45 (Ethernet) LAN Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1-Chip 0.48" DLP
|
| Native Resolution |
1920 x 1200
|
| Supported Resolutions |
Maximum: 3840 x 2160 @ 60 Hz
|
| Maximum Brightness |
4000 Lumens
|
| Aspect Ratio |
Native: 16:10
Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
5,000,000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Sequential
Side by Side Top Bottom |
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 27 to 101.6kHz
Vertical: 24 to 120Hz |
Lens
| Includes Lens |
Yes
|
| Focus |
Manual
|
| Aperture |
f/1.94 to 2.23
|
| Focal Length |
12.82 to 16.74mm
|
| Lens Shift |
Vertical: + 10%
|
| Optical Zoom |
Manual: 1.3x
|
| Throw Distance |
2.6 to 33.7' / 0.8 to 10.3 m
|
| Throw Ratio |
1.21 to 1.59:1 (100" Screen Size @ 10' / 3.0 m)
|
| Projection Size |
30 to 300" / .8 to 7.6 m
|
Features
| Keystone Correction |
Auto / Manual to Vertical: ± 30°
Manual to Horizontal: ± 30° |
| HDR Support |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
8 W
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
1x RCA (Composite) Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Microphone Input 1x DE-15/DB-15 (VGA) Video Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x Micro-USB Service Input 1x RJ45 (Ethernet) LAN Input |
| HDCP Support |
Yes
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
|
| Fan Noise |
Full Brightness: 34 dB
Low Brightness: 31 dB |
| Security |
Cable Lock Slot
Keypad Lock |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: < 360 W
Standby Mode (Lamp Off): < 2 W |
| Certifications |
IEC, FCC, CE, UKCA
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 0 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 0 to 85% Humidity
|
| Dimensions (W x H x D) |
13.3 x 4.8 x 10.4" / 337.0 x 122.5 x 265.0 mm (With Feet)
13.3 x 4.3 x 10.4" / 337.0 x 108.0 x 265.0 mm (Not Including Feet) |
| Weight |
10.14 lb / 4.6 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
