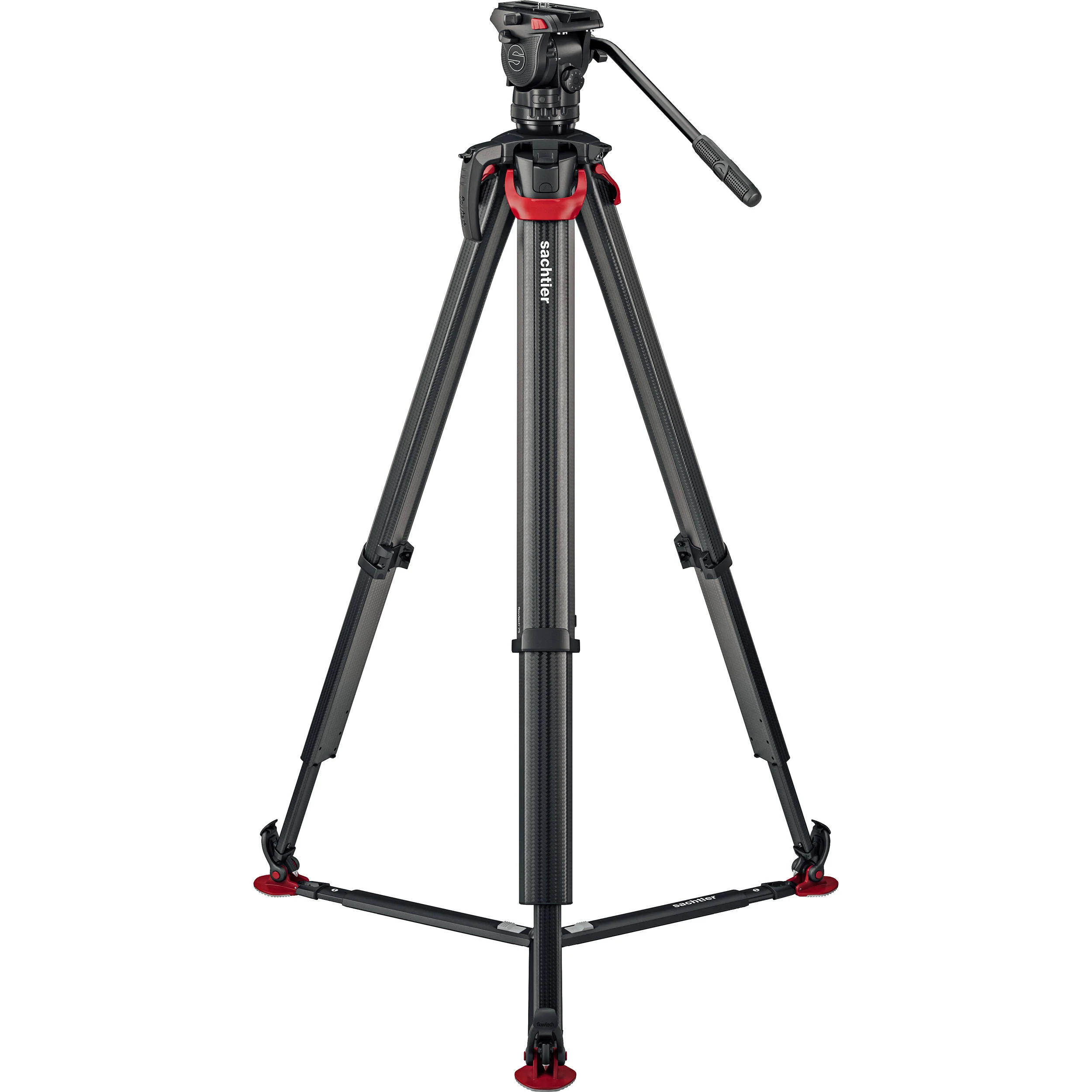

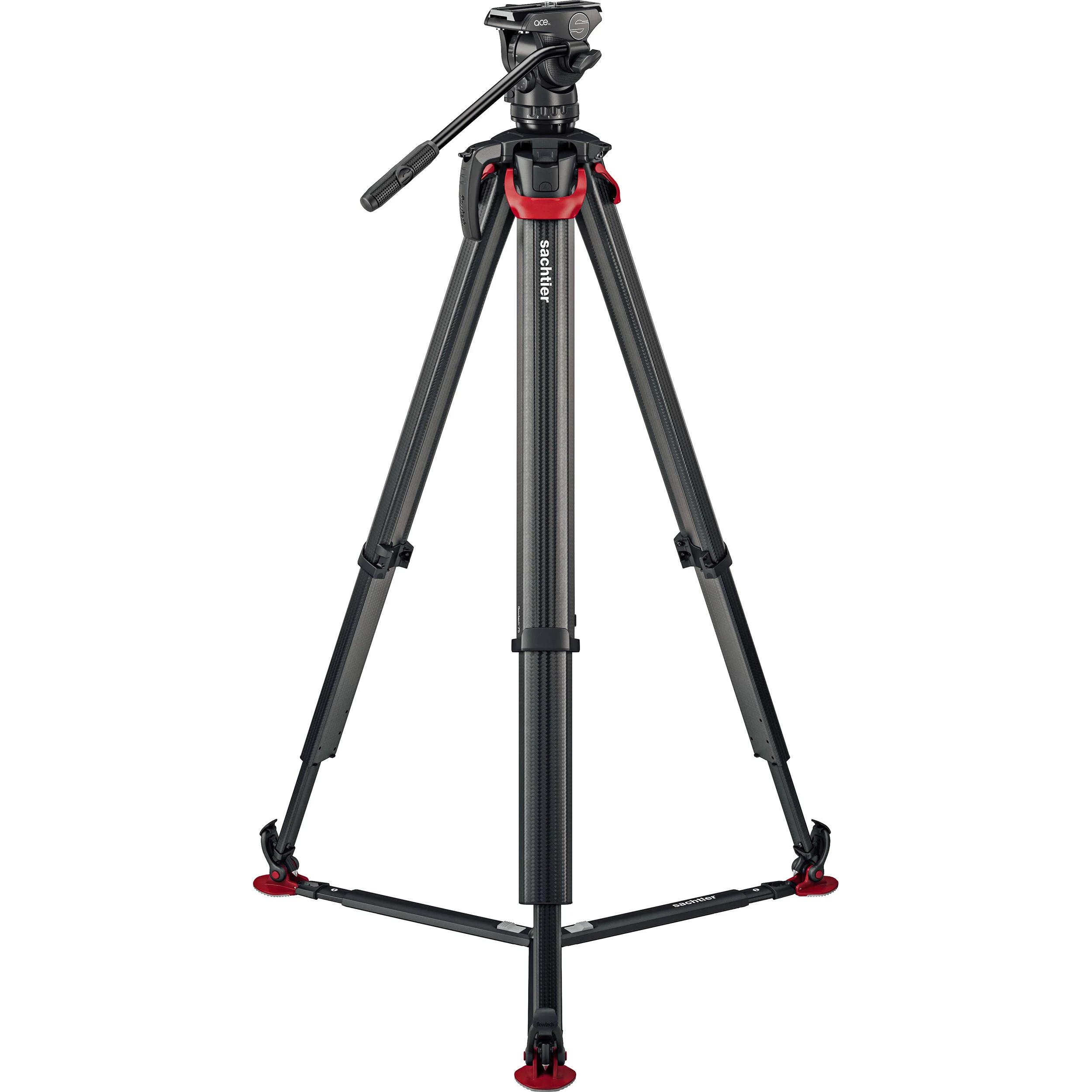

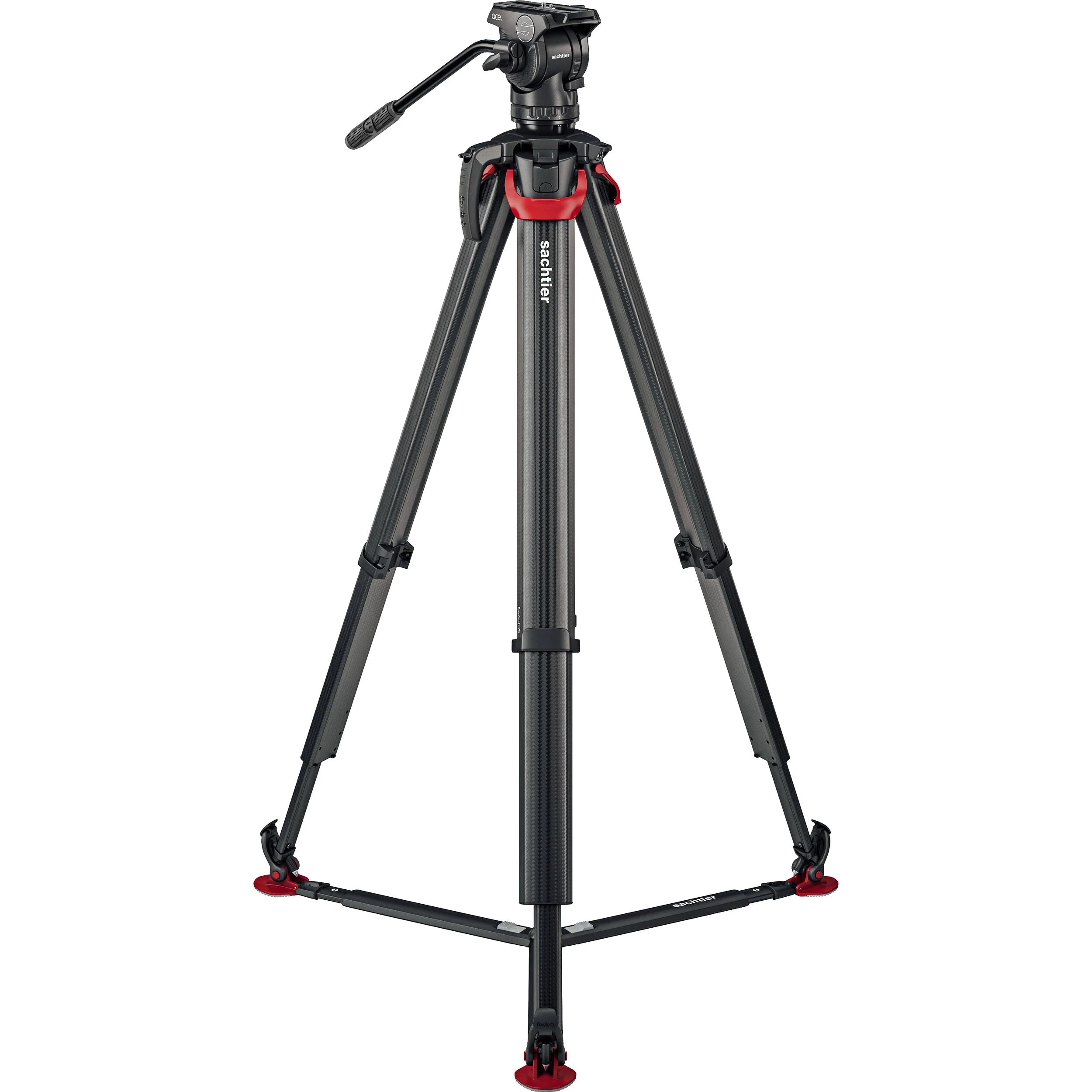

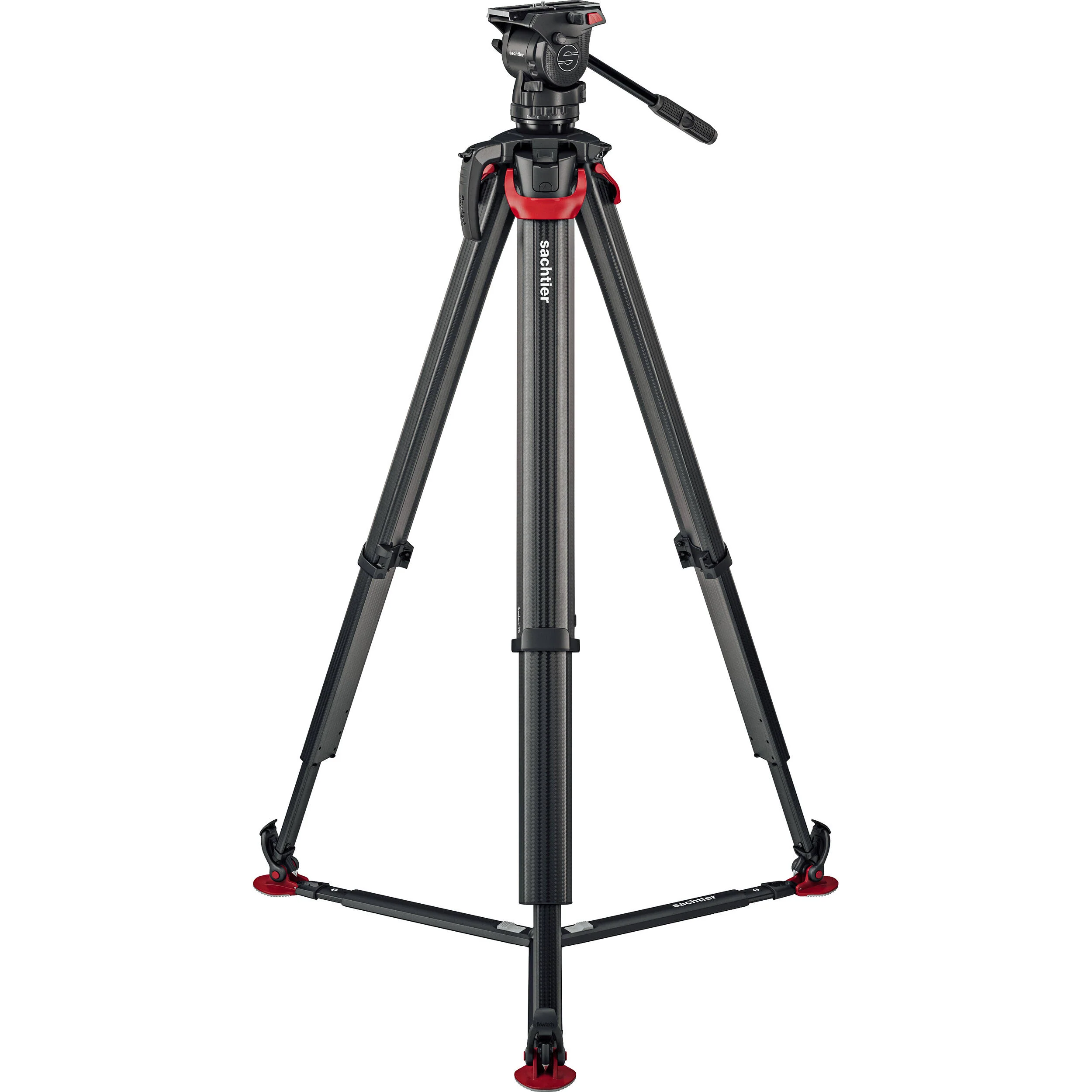

Sachtler Flowtech 75 GS Carbon Fiber Tripod System with Ace XL Mark II Fluid Head

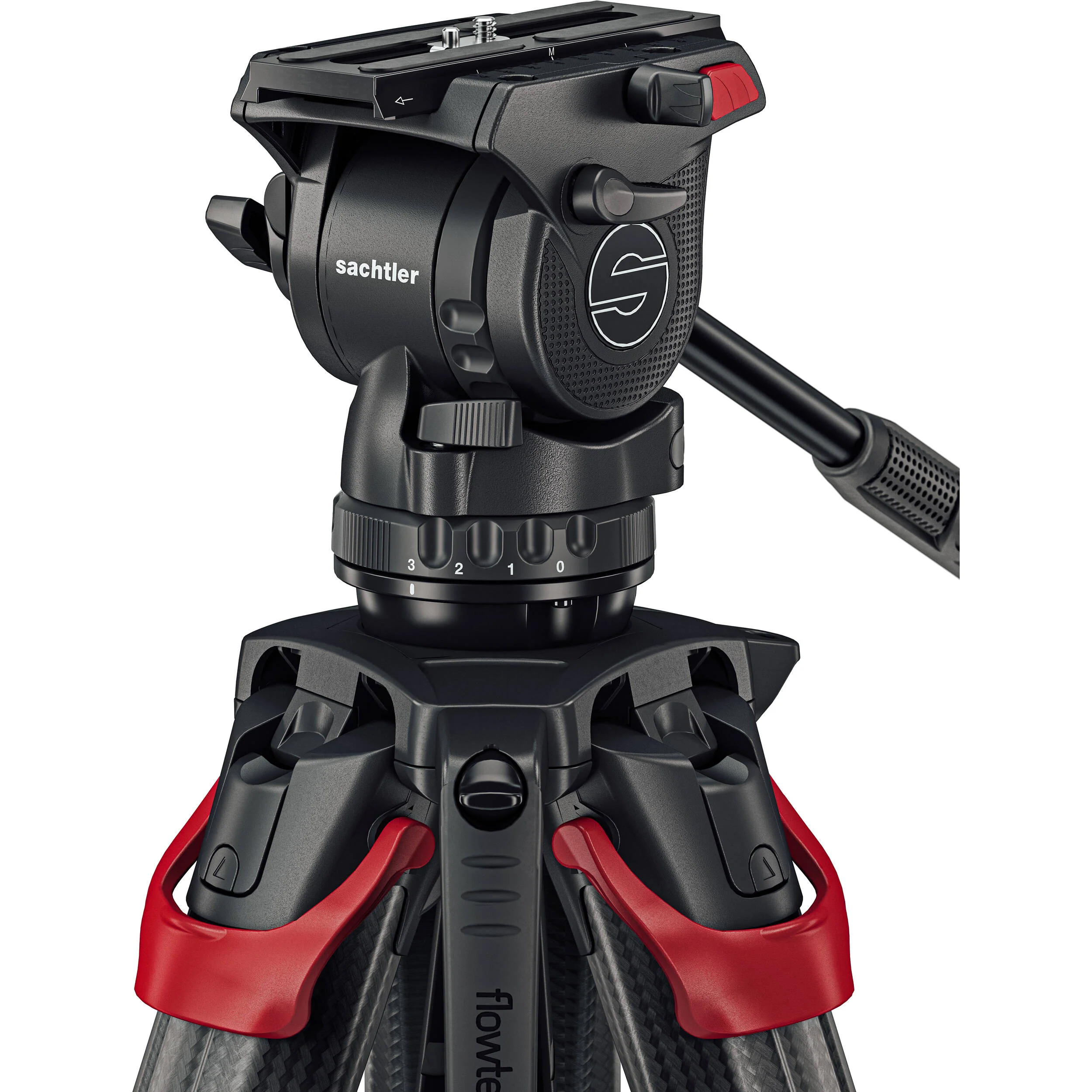

The Sachtler Ace XL Mark II Fluid Head is designed to facilitate smooth pan and tilt movements with your cine-style camera configurations thanks to its 17.6 lb load capacity. The fluid head can be secured to 75mm bowl mount tripods. It has 9 + 0 steps of counterbalance and 3 + 0 steps of pan/tilt drag adjustment. A total tilt range of +90° to -75° allows for intuitive framing of your shots.

Mount your camera using the slide-in balancing plate with a 1/4"-20 screw and locating pin. With a sliding range of 4.1", this head can adapt to any rig configuration. Additional features include a detachable pan bar and an illuminated bubble level. An integrated flat head base allows the Ace XL Mark II to be mounted onto a slider.

The Sachtler flowtech 75 GS Carbon Fiber Tripod with Ground Spreader eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs weigh just under 7 pounds yet they can support a payload of up to 44 pounds and extend from a minimum height of 10" to a maximum height of 62.2" when using the included ground spreader. Each leg features a single clamping lever that locks and unlocks the sections.

Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground without the spreader. An attachment point and carry handle are included.

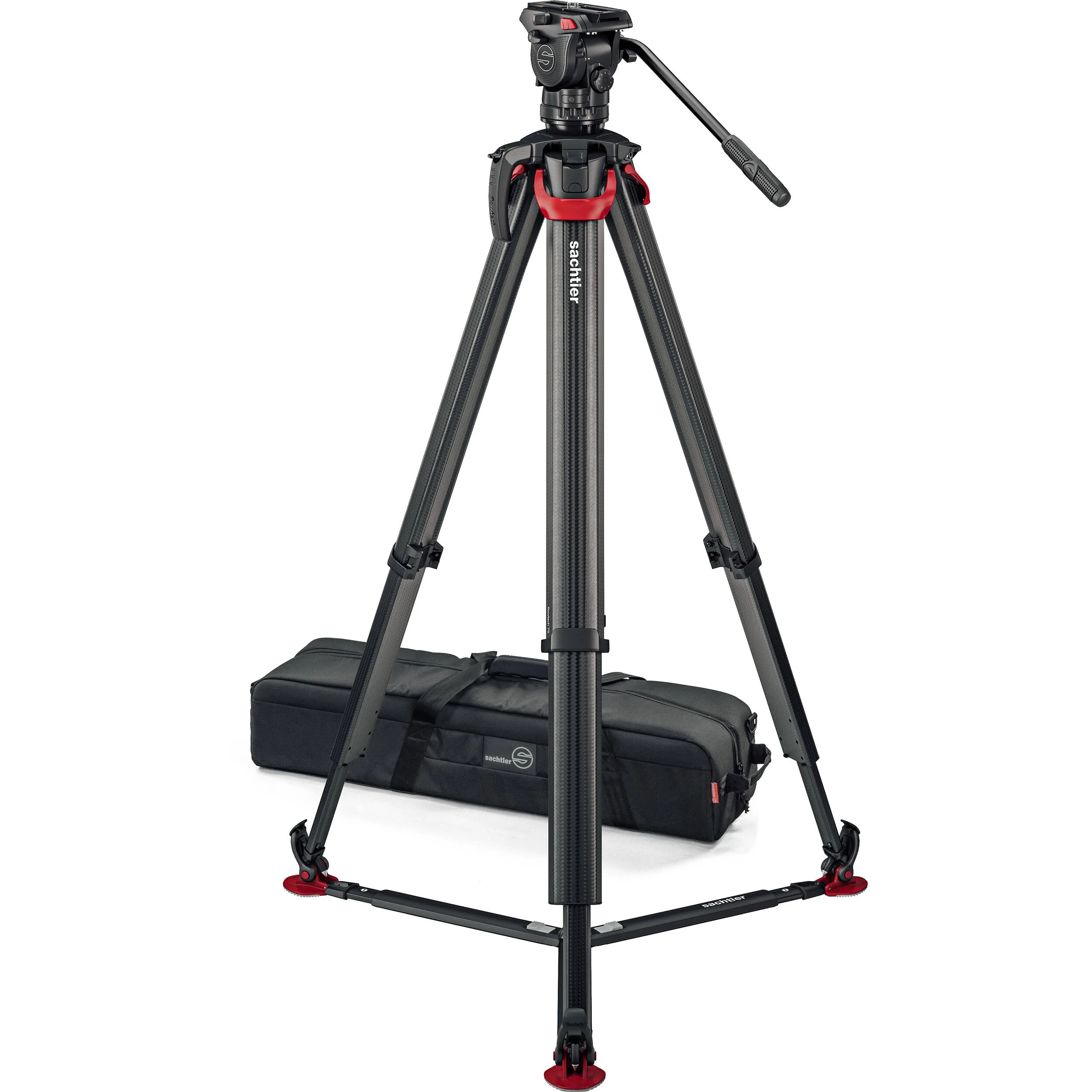

With dimensions of 36.6 x 7.9 x 9.1", this Padded Bag from Sachtler is designed specifically for carrying a flowtech 75 or TT tripod equipped with an FSB fluid head. It is made with a high-density 900D fabric, which is both flame retardant and water-resistant to help ensure that your equipment stays safe. Additionally, layers of both open-cell and closed-cell foam are used in the construction to protect your gear against small bumps and shocks.

The bag opens via a full-length zipper found at the top, which allows for easy access while shooting. For transport, two straps on each side can be connected to an integrated handgrip for easy carrying. There are also small handles on each side of the bag where the zipper ends, and right next to them are D-rings that can be used to connect an optional shoulder strap. Finally, a clear plastic window on the outside allows you to insert a tag with your name or phone number for easy identification when travelling.
